Power Window Schematics

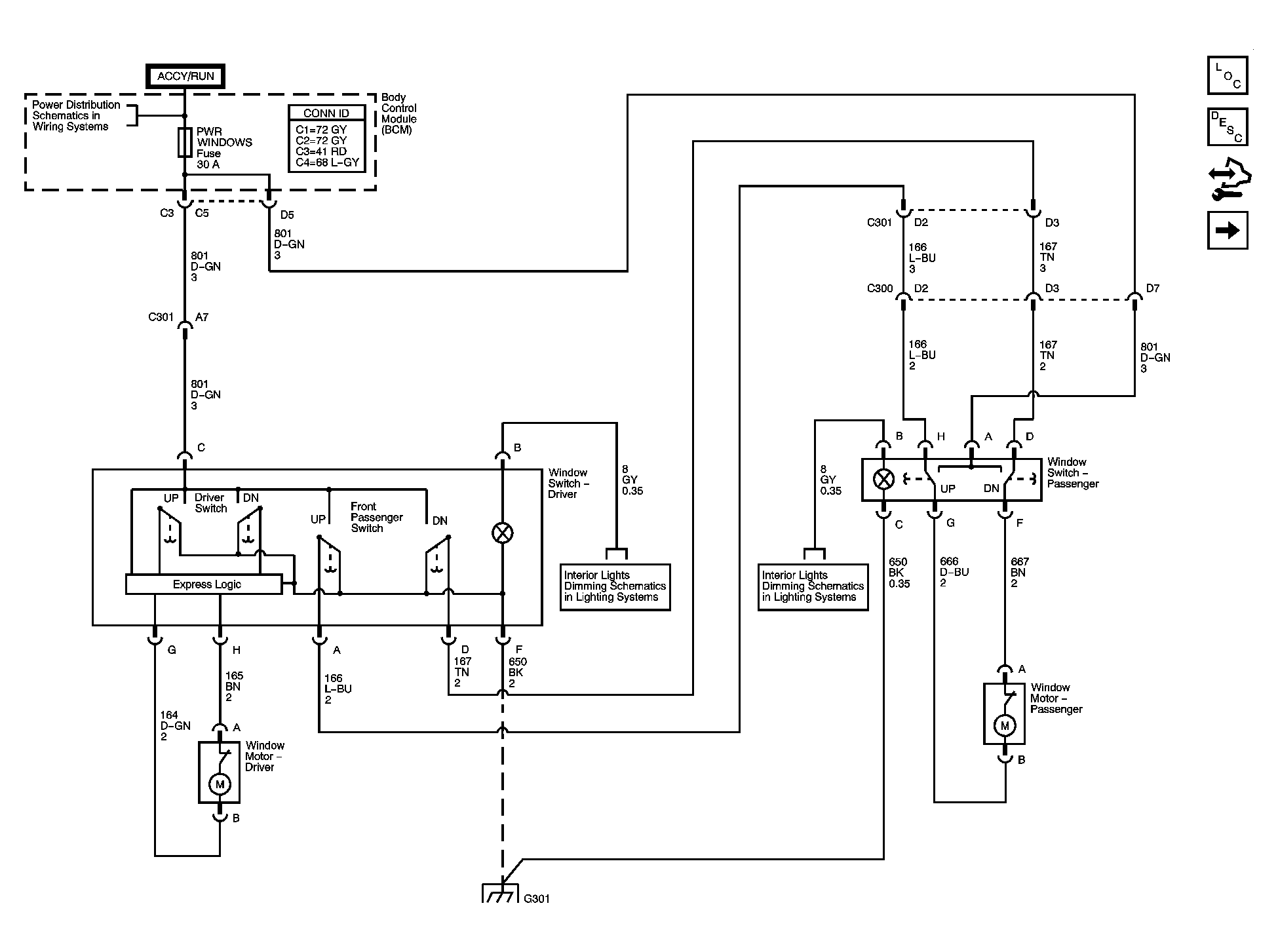

Fig 1: Power Window Schematic (Coupe)
GM1530040Courtesy of GENERAL MOTORS CORP.

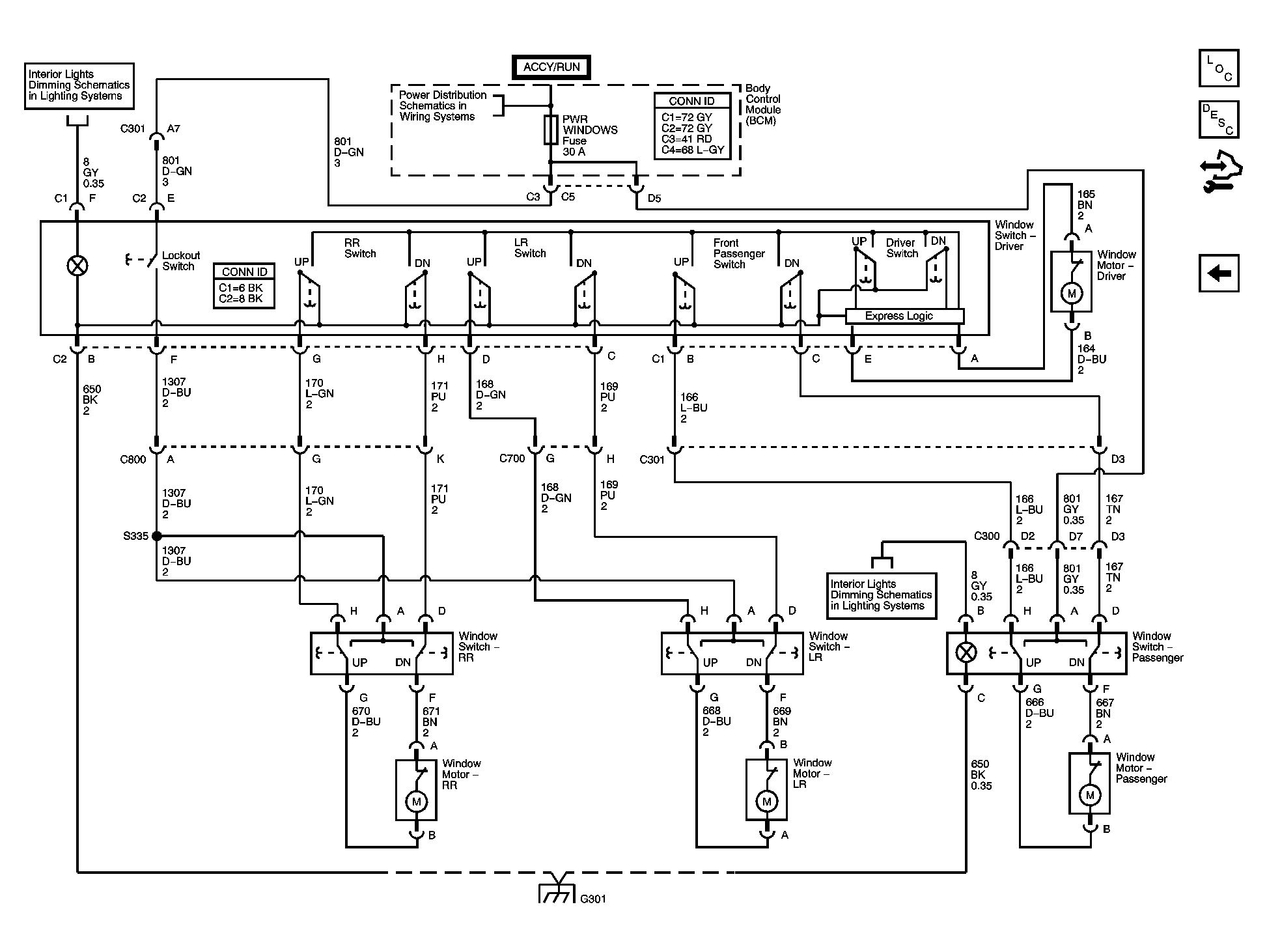

Fig 2: Power Window Schematic (Sedan)
GM1530043Courtesy of GENERAL MOTORS CORP.
