ABS Schematics

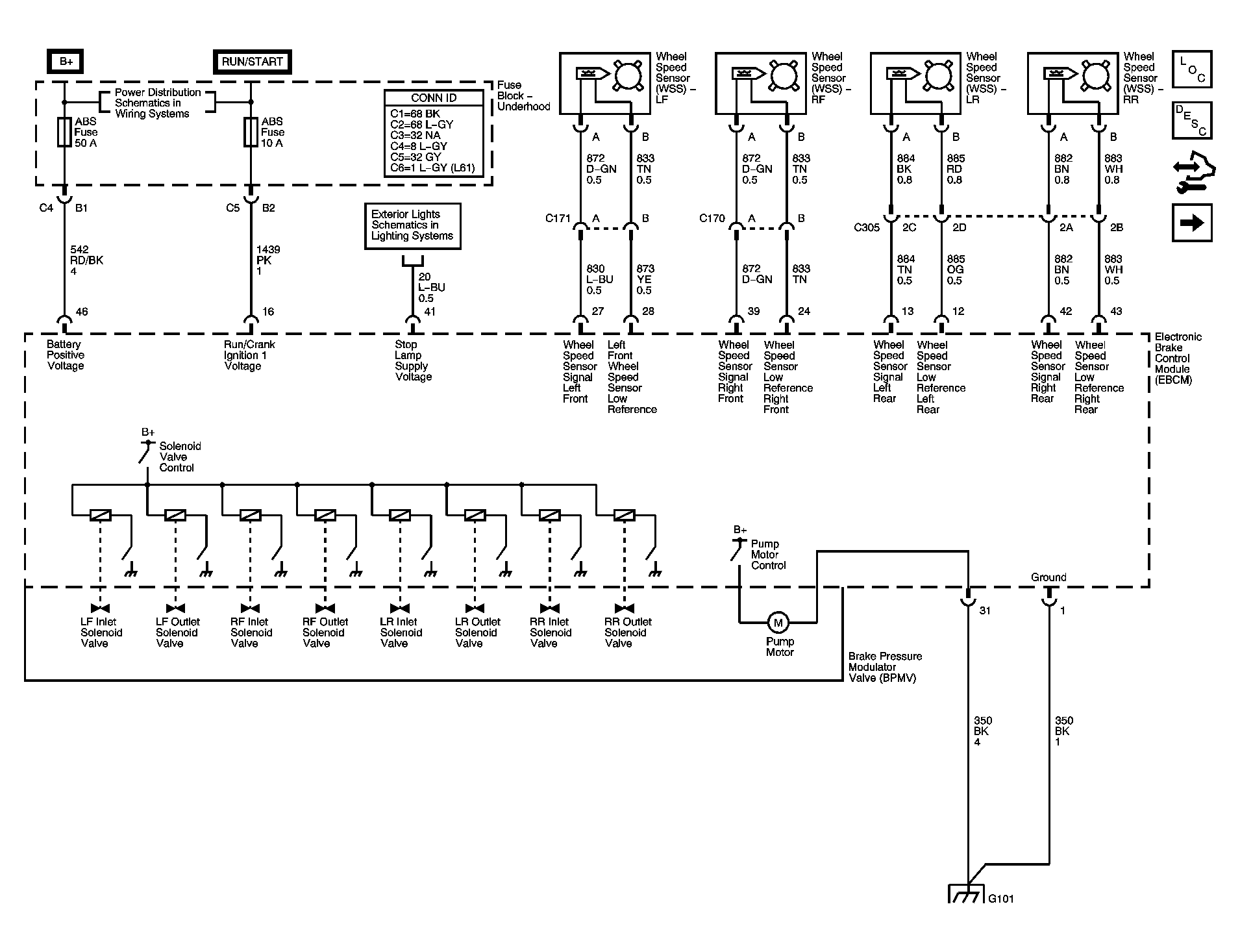

Fig 1: Power, Ground, and Wheel Speed Sensors Schematic
GM1515433Courtesy of GENERAL MOTORS CORP.

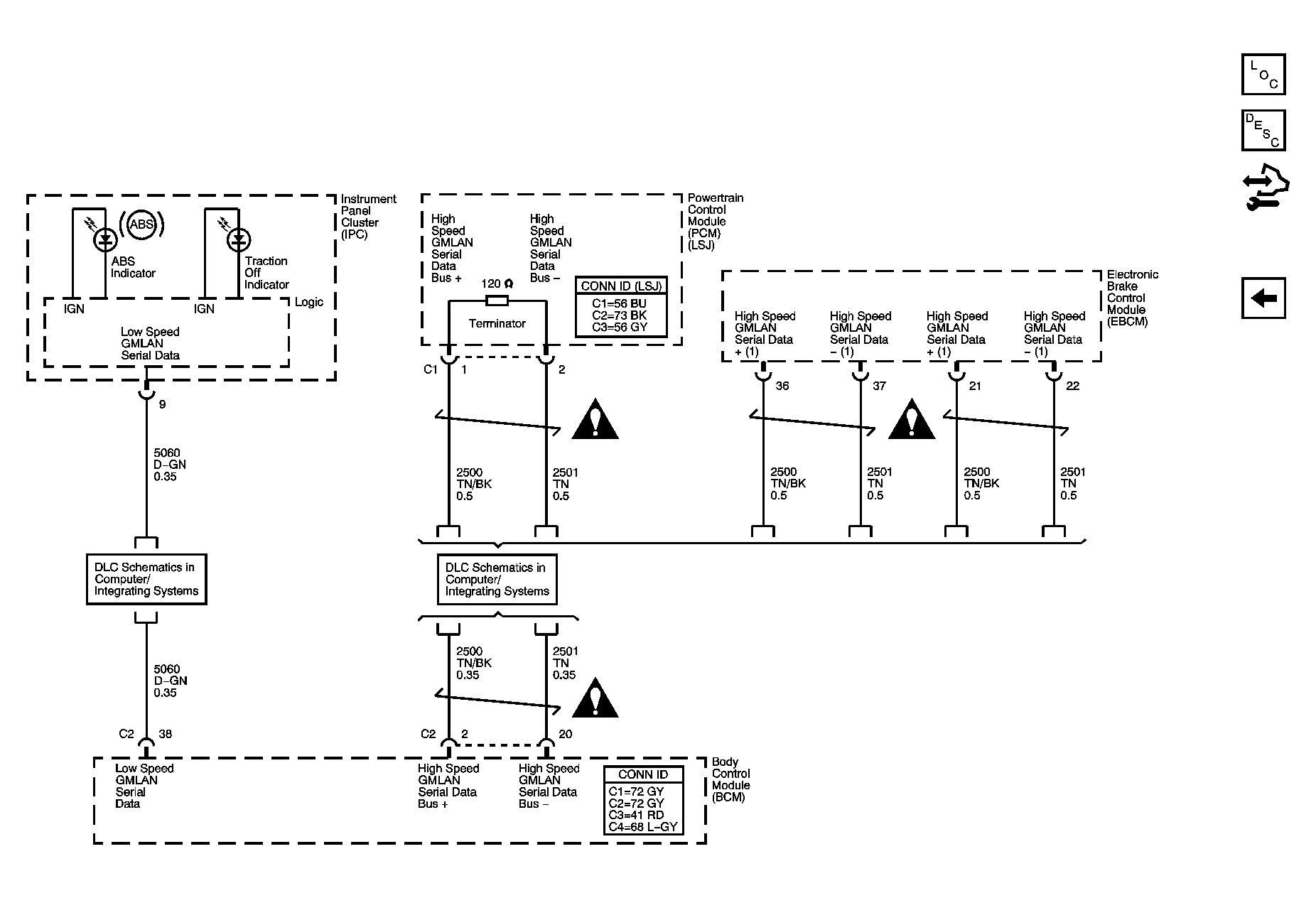

Fig 2: Data Link Communications Schematic
GM1515435Courtesy of GENERAL MOTORS CORP.
