Seat Belt Component Views

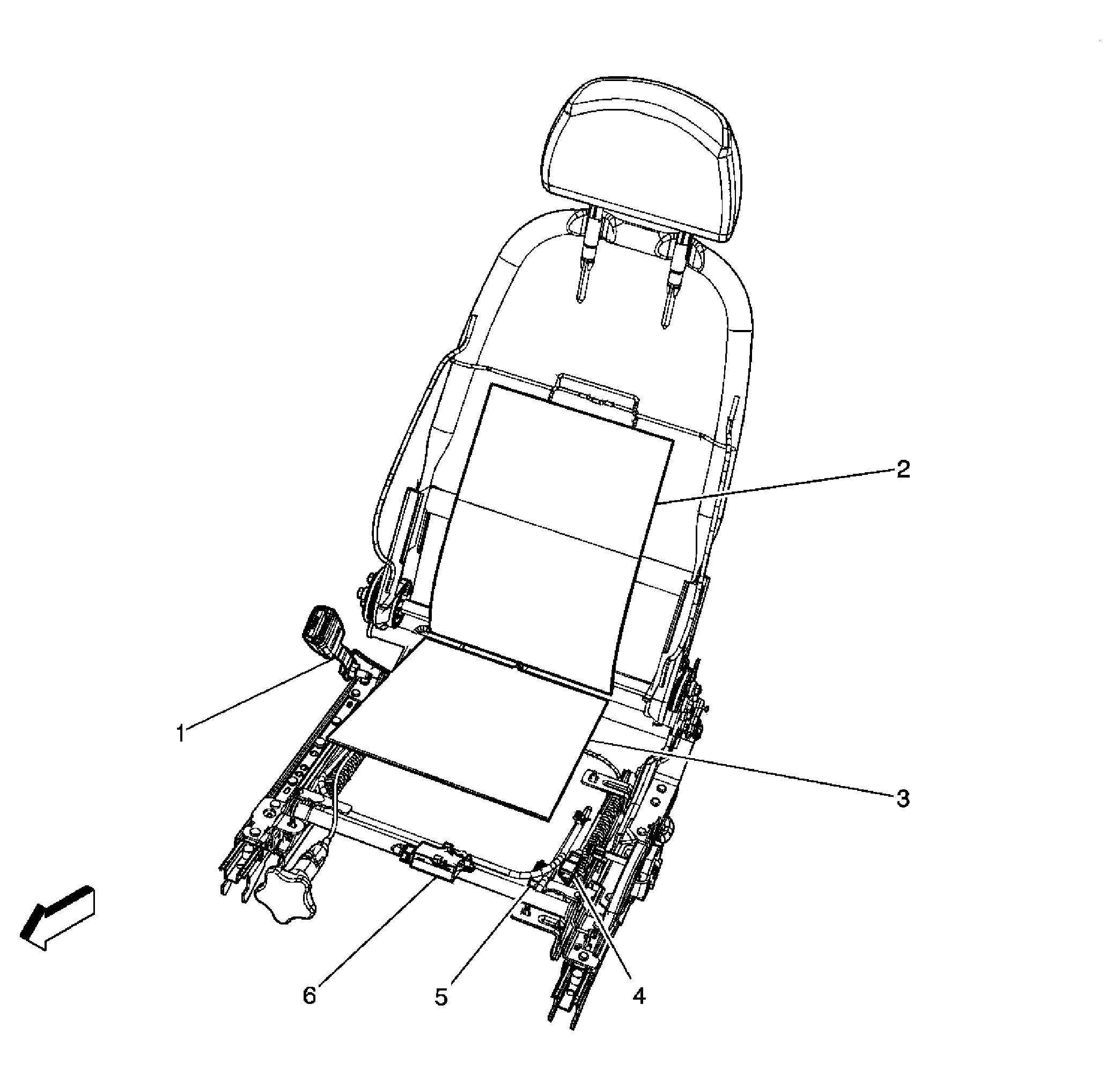

Fig 1: Driver Seat

Courtesy of GENERAL MOTORS CORP.

Callout	Component Name
1	Seat Belt Switch
2	Heated Seat Element - Driver Back (KA1)
3	Heated Seat Element - Driver Cushion (KA1)
4	Seat Belt Switch Connector - Driver
5	C315
6	Heated Seat Module - Driver (KA1)
