Removal Procedure

    CAUTION: Refer to Battery Disconnect Caution in Cautions and Notices.
    Fig 1: Positive & Negative Battery Cable
    GM675304Courtesy of GENERAL MOTORS CORP.
  1. Remove the drive belt. Refer to Drive Belt Replacement - Accessory in Engine Mechanical - 6.0L.
  2. Disconnect the negative battery cable. Refer to Battery Negative Cable Disconnect/Connect Procedure (7.0L) .

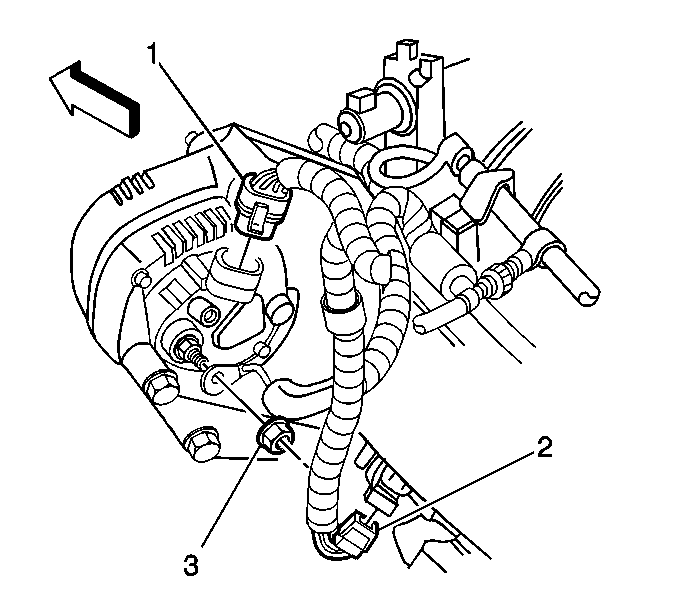

    3. Fig 2: Engine Wiring Harness Generator Lead Nut & Generator Electrical Connector
    GM651874Courtesy of GENERAL MOTORS CORP.
  3. Disconnect the generator electrical connector (1) and (2).
  4. Remove the battery feed terminal nut (3) from the generator.
  5. Remove the battery feed cable.
    6. Fig 3: Generator Bolts & Generator
    GM74067Courtesy of GENERAL MOTORS CORP.
  6. Remove the generator mounting bolts.
  7. Remove the generator.
