ABS Schematics

Fig 1: Power, Ground, Indicators and Messages Schematics

Courtesy of GENERAL MOTORS CORP.

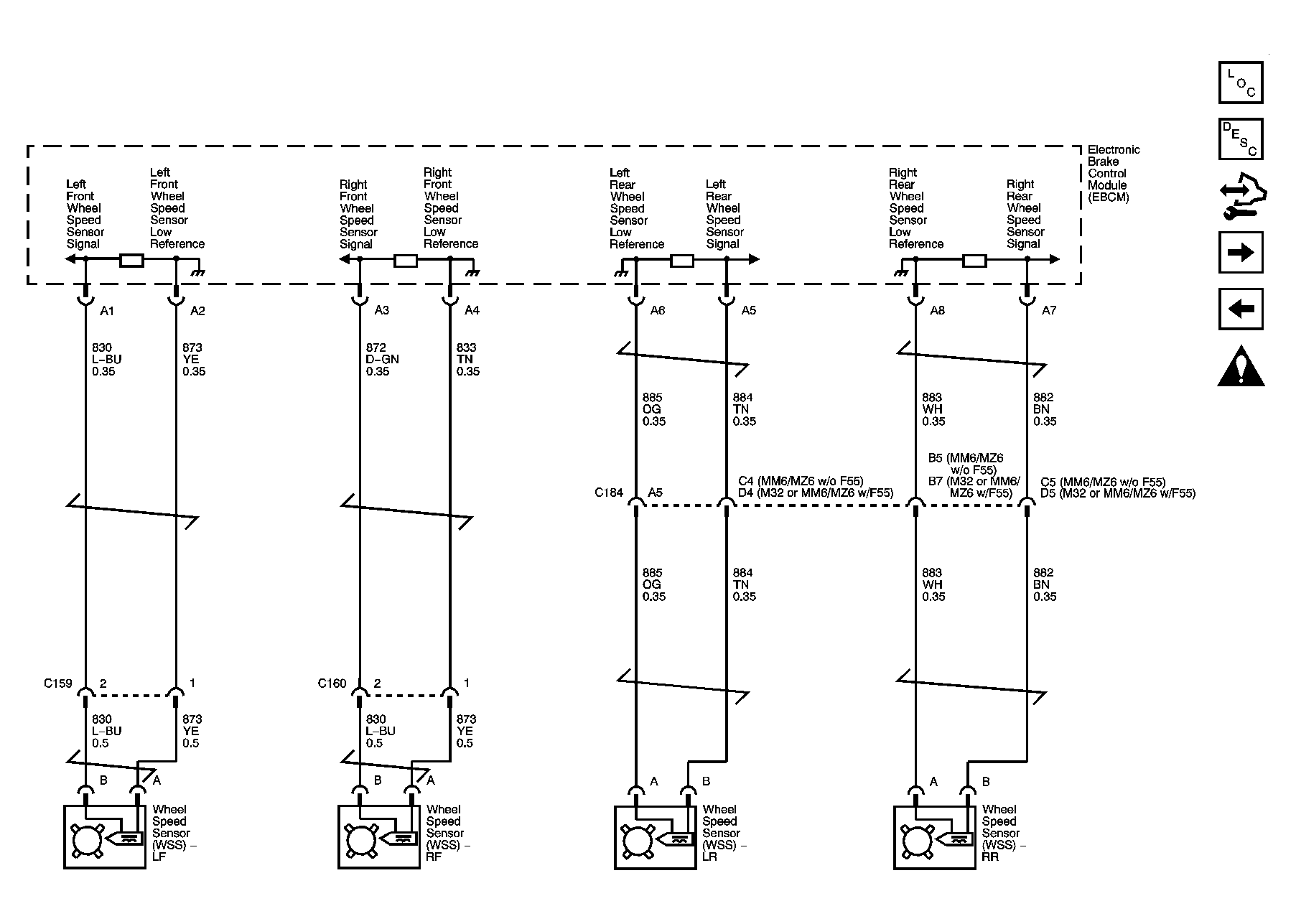

Fig 2: Wheel Speed Sensors Schematics

Courtesy of GENERAL MOTORS CORP.

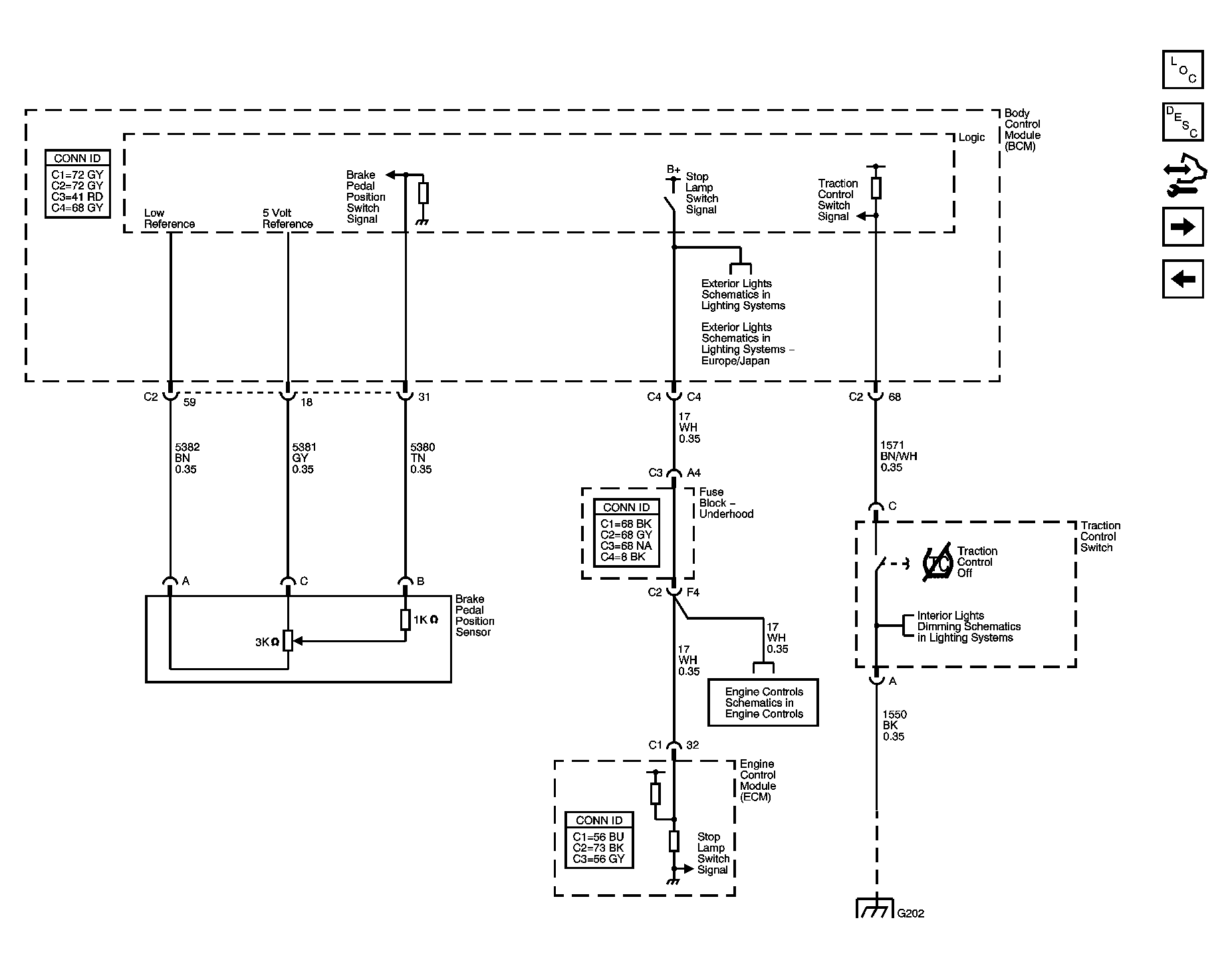

Fig 3: Brake Pedal Signal and Traction Control Switch Schematics

Courtesy of GENERAL MOTORS CORP.

Fig 4: Stability Control Sensors Schematics

Courtesy of GENERAL MOTORS CORP.
