Home › Chevrolet › 2005 › Corvette 2D Convertible, Standard › Repair and Diagnosis › Engine Mechanical › Engine Exhaust System › Repair Instructions › Muffler Replacement - Left › Installation Procedure

Installation Procedure

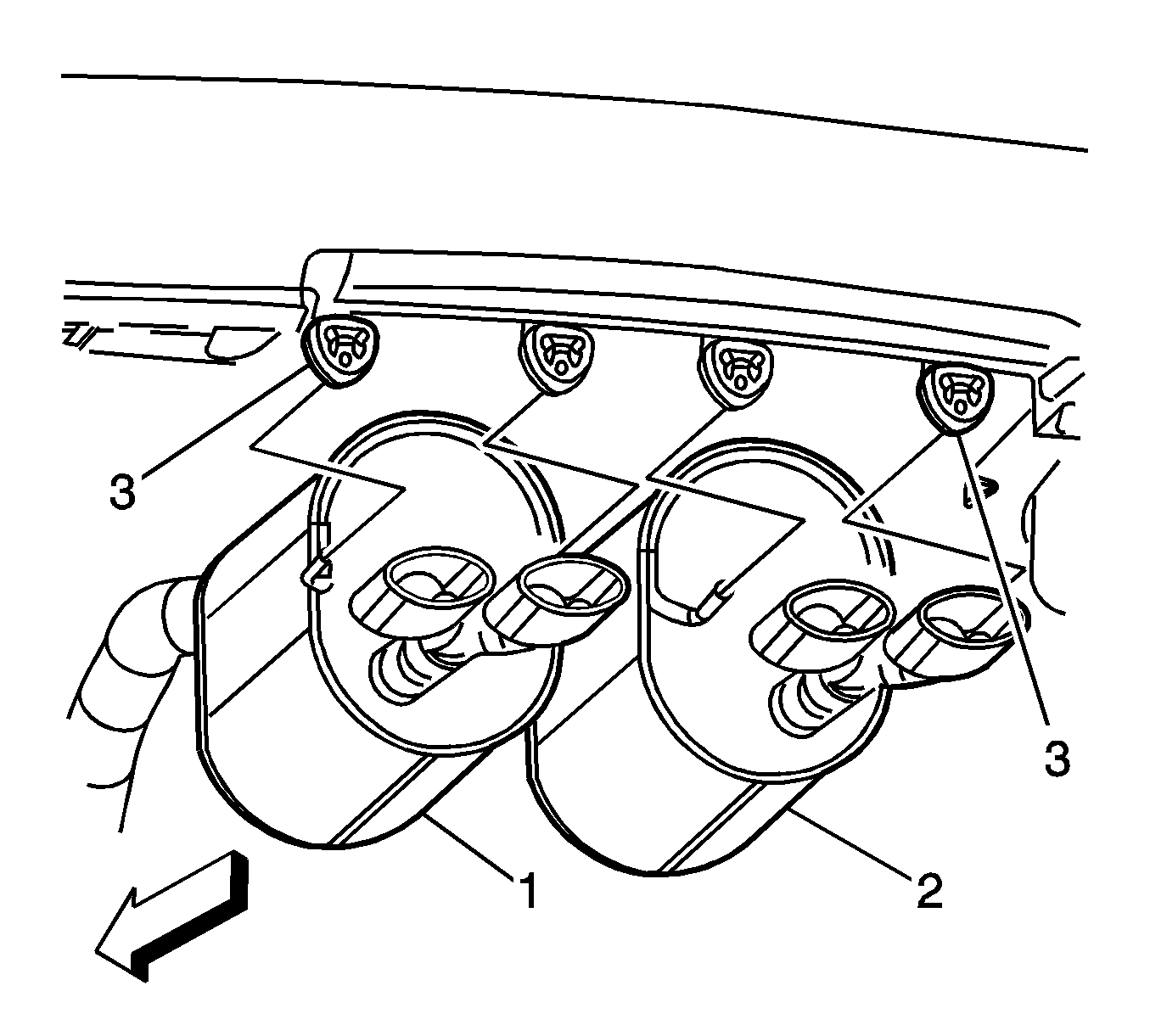

    Fig 1: Left & Right Mufflers & Hangers
    GM1461916Courtesy of GENERAL MOTORS CORP.
  1. Using a wire brush, clean the contact area of the intermediate pipe for the muffler.
  2. Install the left muffler (1) to the hangers (3).
  3. Install the intermediate pipe. Refer to Intermediate Pipe Replacement  .
  4. Lower the vehicle.
