Cellular Communication Component Views

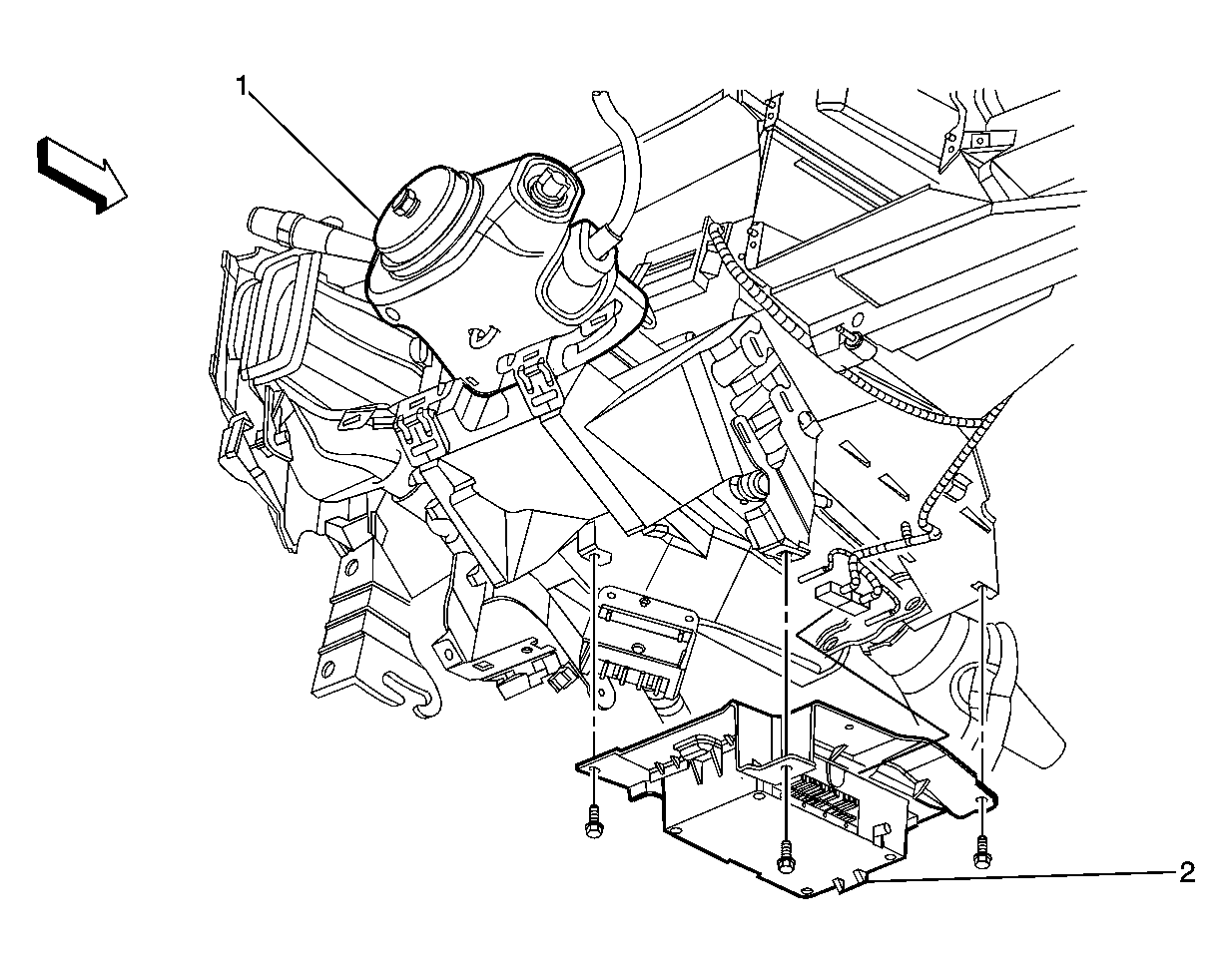

Fig 1: Lower Left Of The I/P Component View

Courtesy of GENERAL MOTORS CORP.

Callout	Component Name
1	Steering Column
2	Vehicle Communication Interface Module (VCIM)

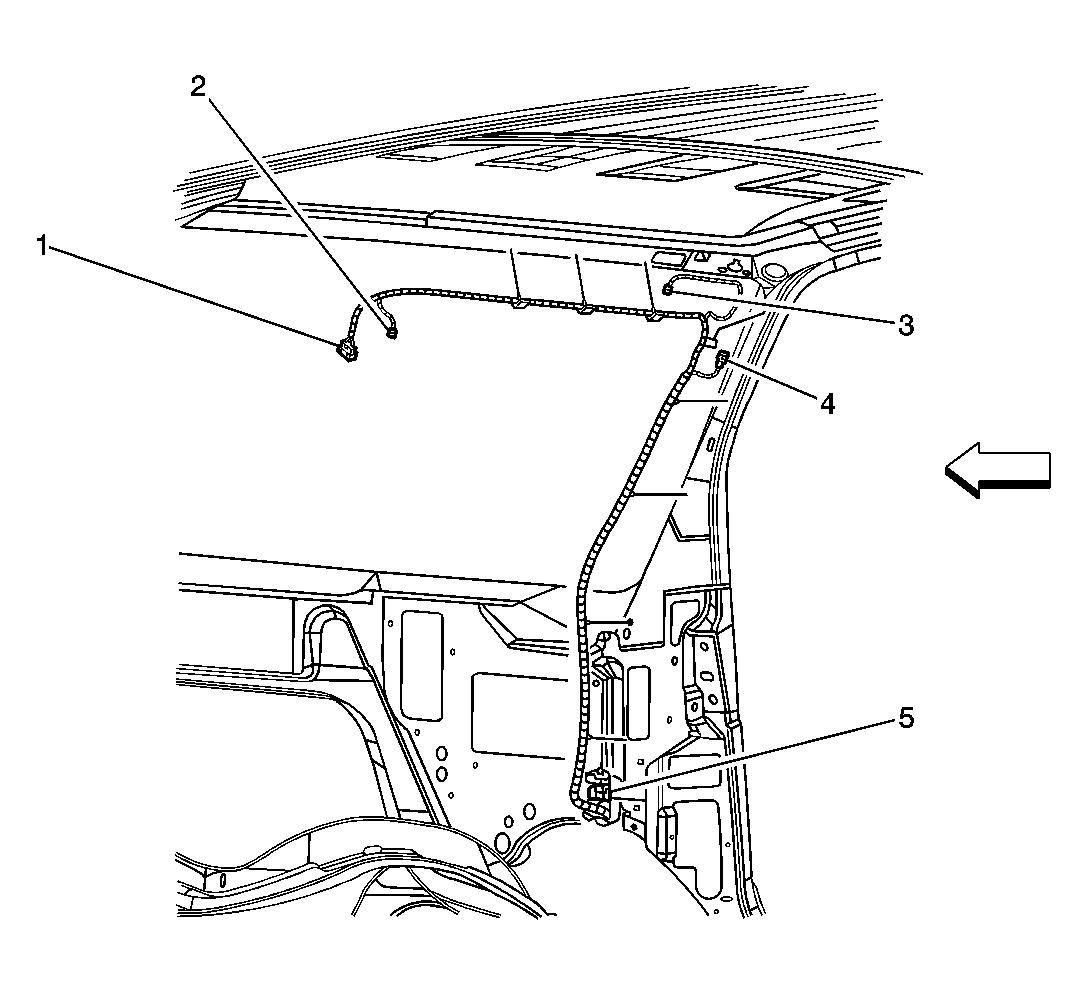

Fig 2: Mobile Telephone, Navigation & Inside Rearview Mirror Harness Component View

Courtesy of GENERAL MOTORS CORP.

Callout	Component Name
1	Inside Rearview Mirror Connector (DF5/UE1)
2	Navigation Antenna Connector (UE1)
3	Cellular Antenna Connector (UE1)
4	Cellular Telephone Microphone Connector (UE1)
5	C225 (DF5/UE1)
