Power Window Schematics

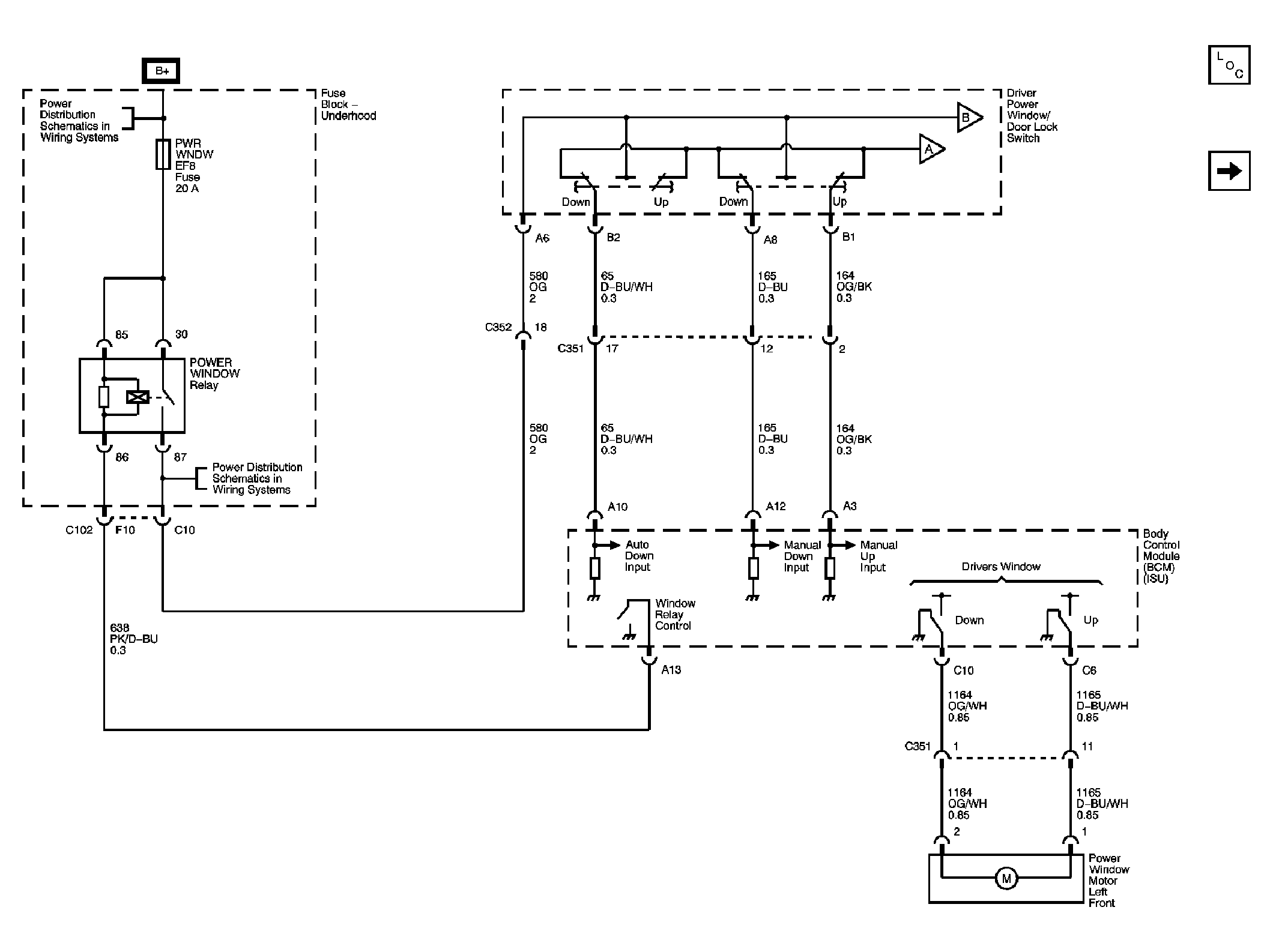

Fig 1: Driver Power Window Schematic
GM1257288Courtesy of GENERAL MOTORS CORP.

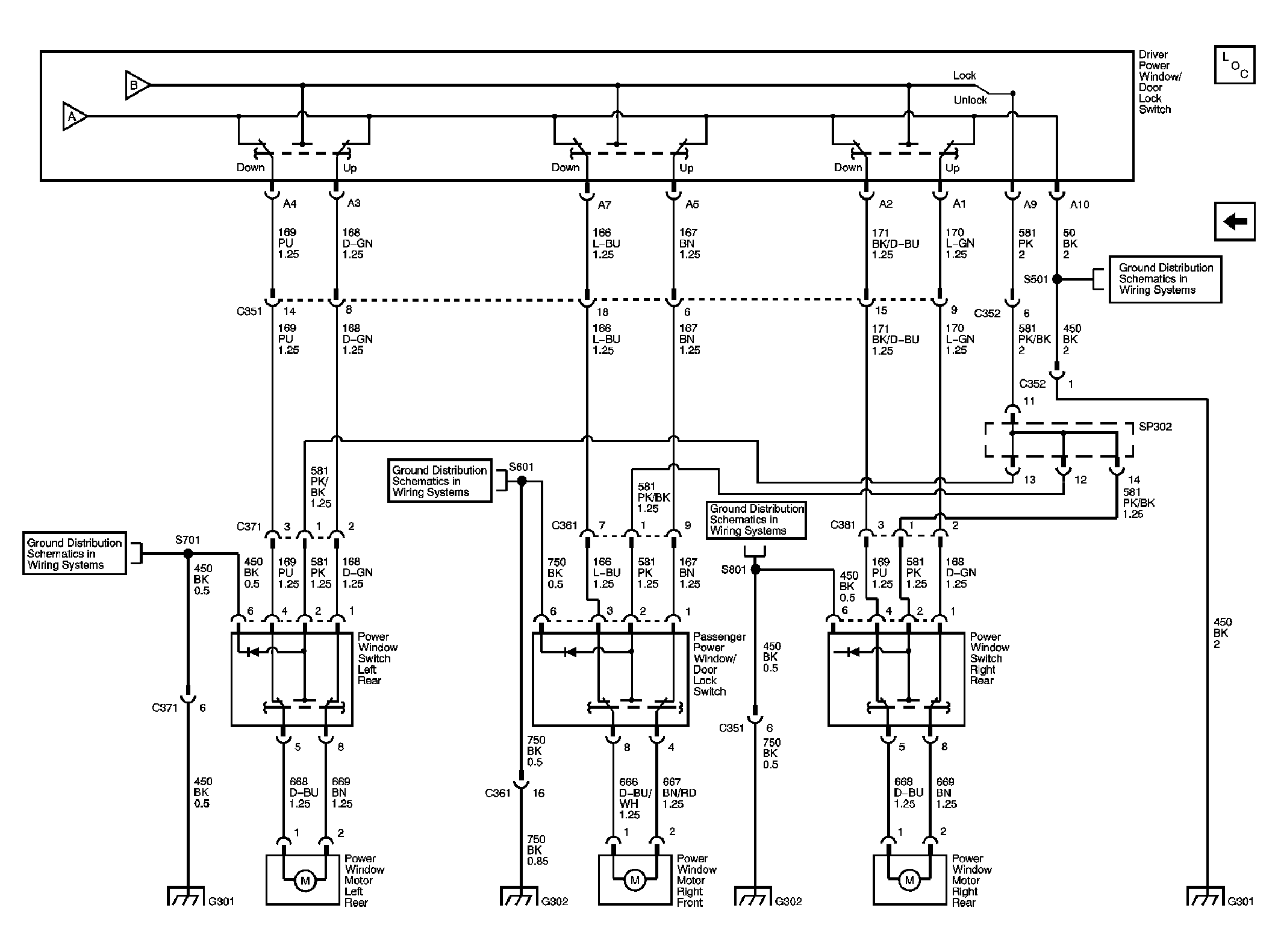

Fig 2: Passenger Power Windows Schematic
GM1461113Courtesy of GENERAL MOTORS CORP.
