Headlight Leveling Schematics
Headlight Leveling Schematics

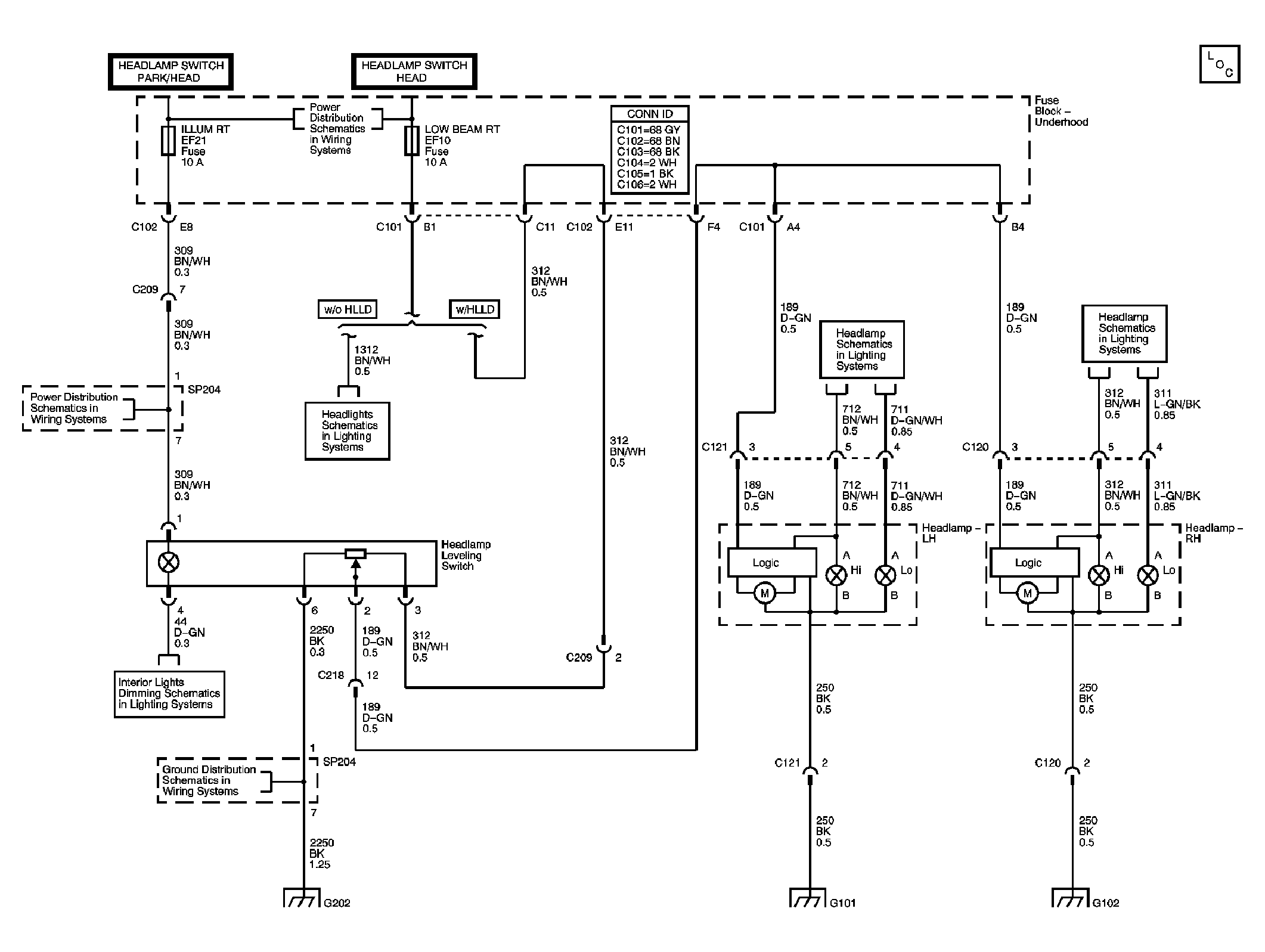

Fig 1: Headlamp Leveling Schematic
Courtesy of GENERAL MOTORS CORP.
Courtesy of GENERAL MOTORS CORP.
