Horns Component Views

Fig 1: Identifying Instrument Panel Components

Courtesy of GENERAL MOTORS CORP.

Callout	Component Name
1	Shift Program Switch, Hold Mode Switch
2	Cigar Lighter
3	Daytime Running Lamp (DRL) Control Module
4	Clock
5	Auxiliary Power Outlet
6	I/P Dimmer Switch/Headlamp Leveling Switch
7	Horn Switch

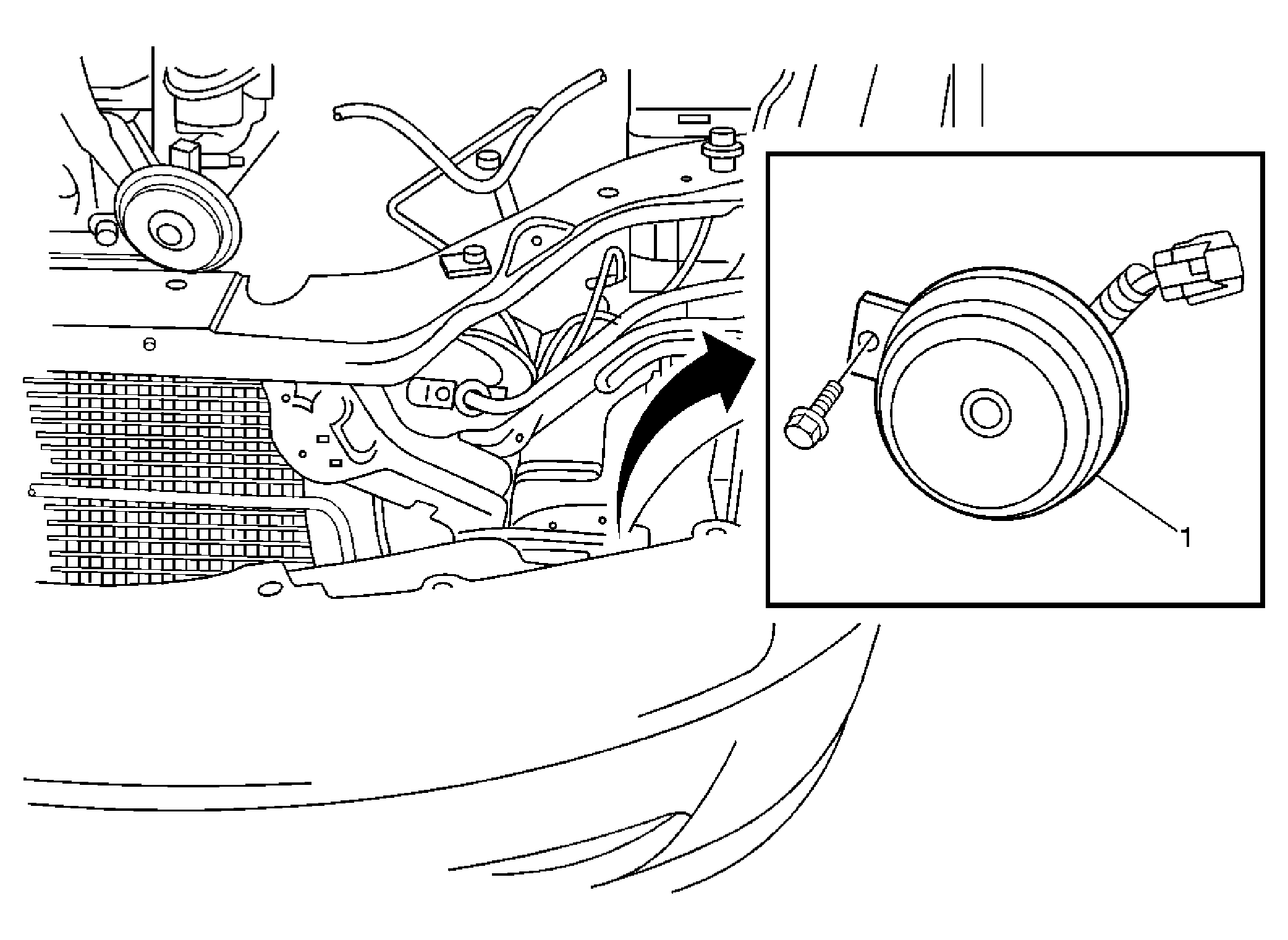

Fig 2: View Of Horn And Retaining Bolt

Courtesy of GENERAL MOTORS CORP.

Callout	Component Name
1	Horn High and Low Note - Left Side Shown, Right Similar
