Seat Belt Component Views

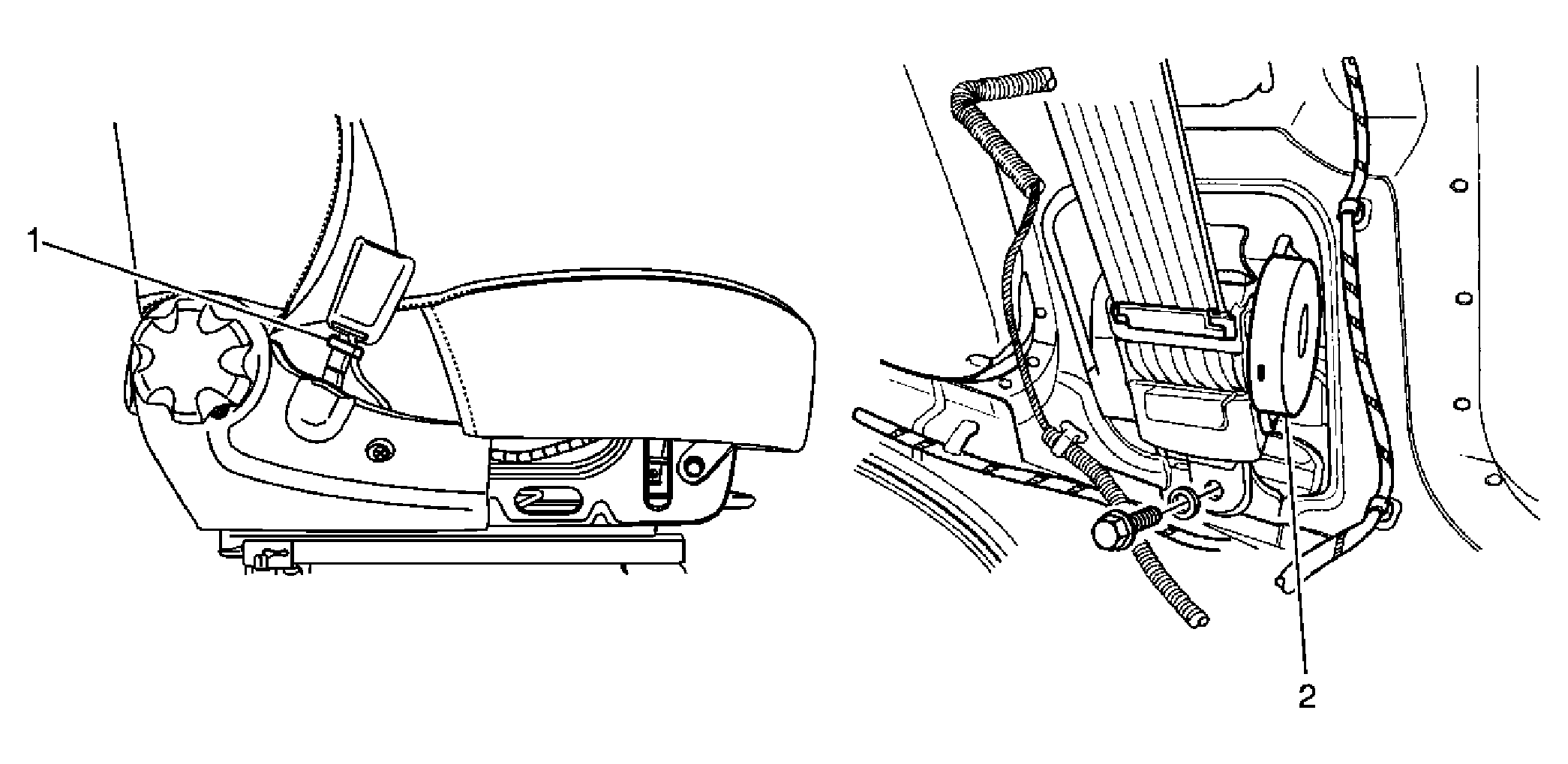

Fig 1: Identifying Seat Belt Components
GM1469244Courtesy of GENERAL MOTORS CORP.
Callout Component Name
1 Seat Belt Switch
2 Seat Belt Pretensioner - Driver and Passenger
