Installation Procedure

    Fig 1: View Of Linkage Lever Assembly
    GM1255759Courtesy of GENERAL MOTORS CORP.
  1. Install the linkage lever assembly into the vehicle.
    2. Fig 2: Locating Linkage Clips
    GM1255760Courtesy of GENERAL MOTORS CORP.
  2. Install the clips.

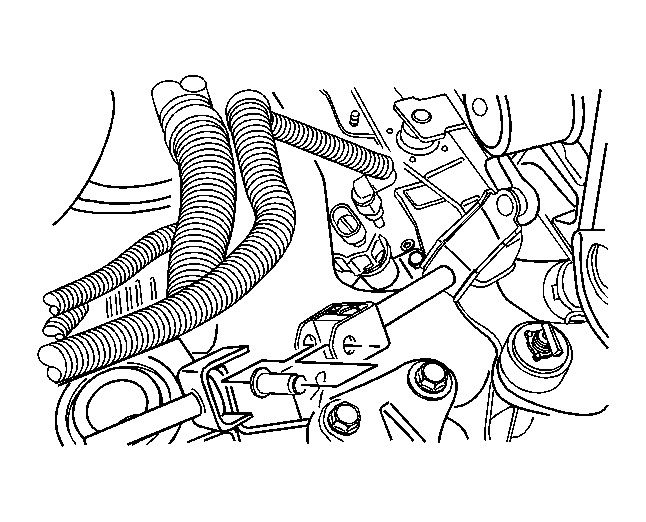

    3. Fig 3: View Of Universal Joint, Clip And Bolt
    GM1255758Courtesy of GENERAL MOTORS CORP.
  3. Coat the universal joint bolt with silicone grease.
  4. Install the universal joint bolt and the clip onto the universal joint.
    5. Fig 4: Identifying Plastic Clip At End Of Ball Socket
    GM1255756Courtesy of GENERAL MOTORS CORP.
  5. Install the control shift rod.
  6. Press the ball sockets onto the ball studs on the linkage bolts.
  7. Connect the plastic clips on the end of each ball socket.
    8. Fig 5: View Of Rod Clamp On Gearshift Tube
    GM1255761Courtesy of GENERAL MOTORS CORP.
  8. Connect the linkage bolt to the shift tube.
  9. Adjust the shift linkage. Refer to Shift Linkage Adjustment .
    10. NOTE: Refer to Fastener Notice in Cautions and Notices.
  10. Tighten the rod clamp bolt.

    Tighten:  Tighten the rod clamp bolt to 14 N.m (124 lb in)  .

  11. Connect the negative battery cable.
