Computer/Integrating Systems Component Views

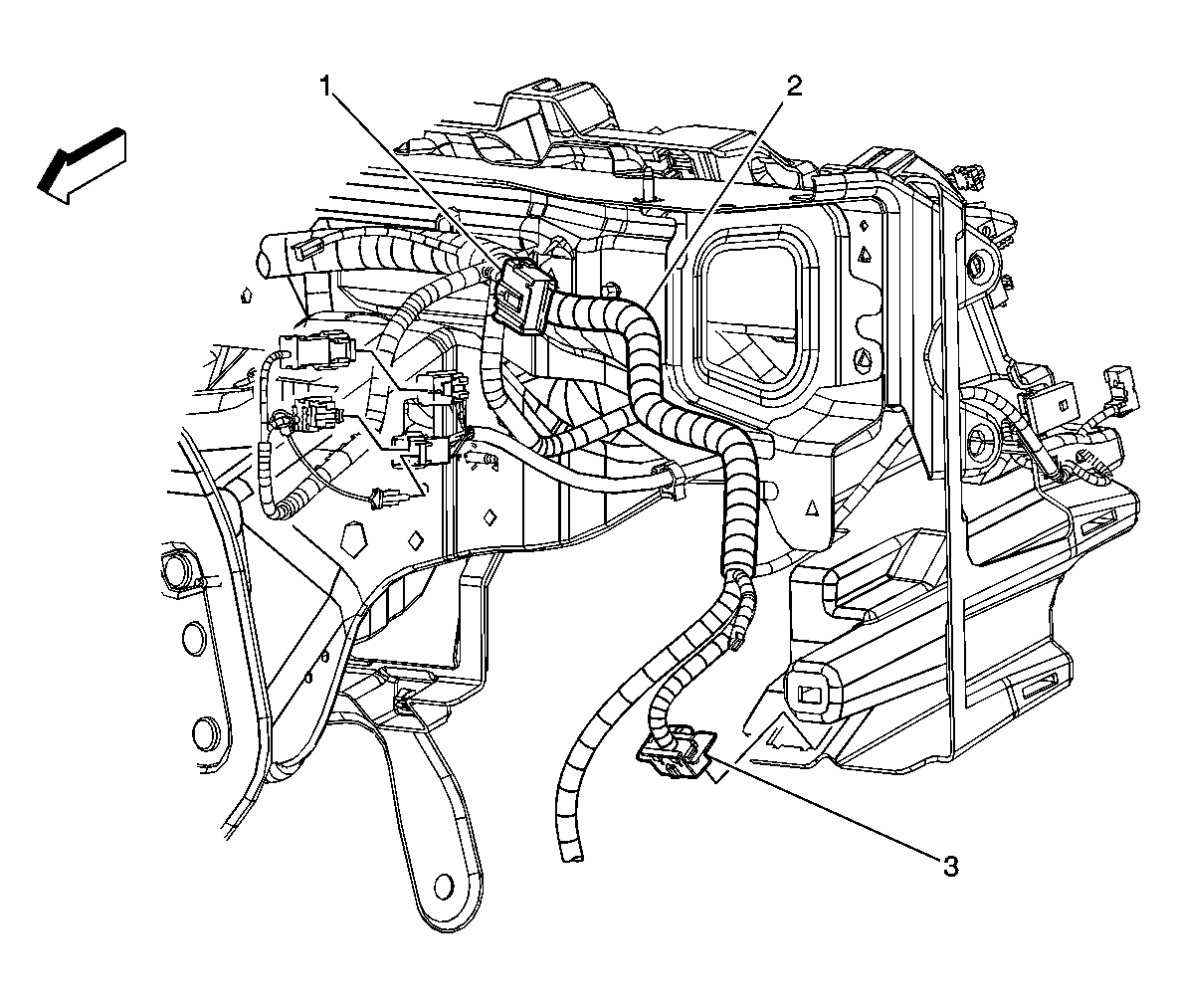

Fig 1: Left Side of the I/P
GM1392595Courtesy of GENERAL MOTORS CORP.
Callout Component Name
1 Splice Pack SP200
2 I/P Harness
3 Data Link Connector (DLC)
Fig 2: Center of the I/P
GM1454882Courtesy of GENERAL MOTORS CORP.
Callout Component Name
1 Body Control Module (BCM)
2 I/P Harness
3 Center I/P Support
