Installation Procedure

WARNING: This page is about a different car, the 2007 Chevrolet Malibu. However, it is still accessible from the selected car via links, so may be relevant.

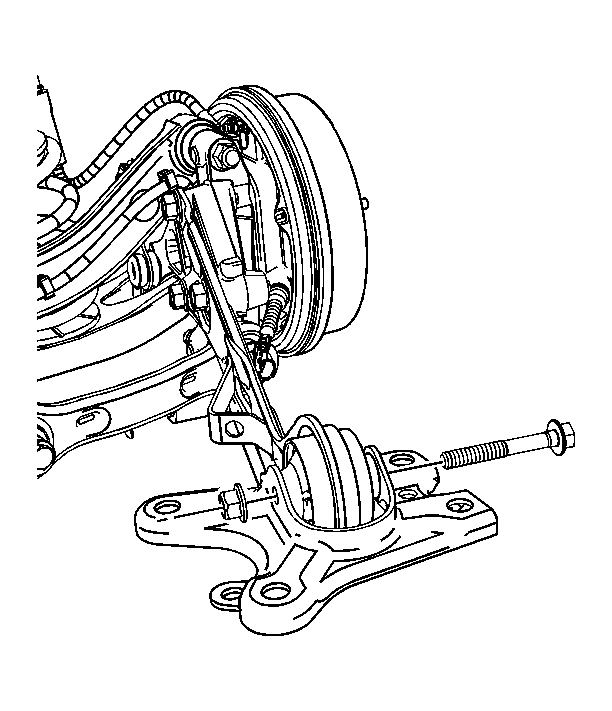

Fig 1: Identifying Trailing Arm To Bracket Bolt And Nut

Courtesy of GENERAL MOTORS CORP.

NOTE: Refer to Fastener Notice .

Assemble the trailing arm and bracket.
Tighten: Tighten the trailing arm to bracket through bolt to 60 N.m (44 lb ft) plus 60 degrees.
Position the trailing arm to the vehicle.

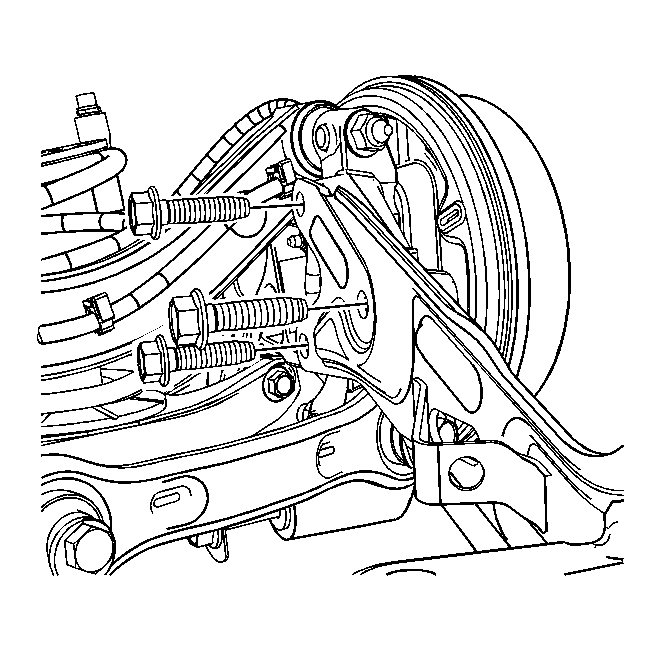

Fig 2: Identifying Trailing Arm Bolts

Courtesy of GENERAL MOTORS CORP.

Install the trailing arm to knuckle bolts.
Tighten: Tighten the bolts to 180 N.m (133 lb ft).
Connect the parking brake cable to the trailing arm. Refer to Park Brake Cable Replacement - Rear (Disc Brakes) or Park Brake Cable Replacement - Rear (Drum Brakes) .

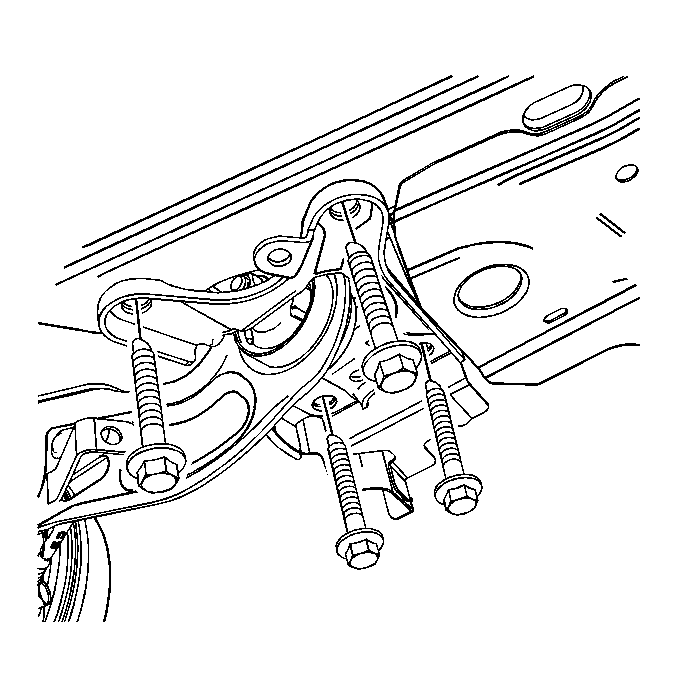

Fig 3: Identifying Trailing Arm Bracket To Body Bolts

Courtesy of GENERAL MOTORS CORP.

Install the trailing arm bracket to body bolts.
Tighten: Tighten the bracket to body bolts to 90 N.m (66 lb ft) plus 30 degrees.
Install the tire and wheel. Refer to Tire and Wheel Removal and Installation .
Lower the vehicle.
