Tail Lamp Replacement
WARNING: This page is about a different car, the 2007 Saturn Sky. However, it is still accessible from the selected car via links, so may be relevant.
Tail Lamp Replacement

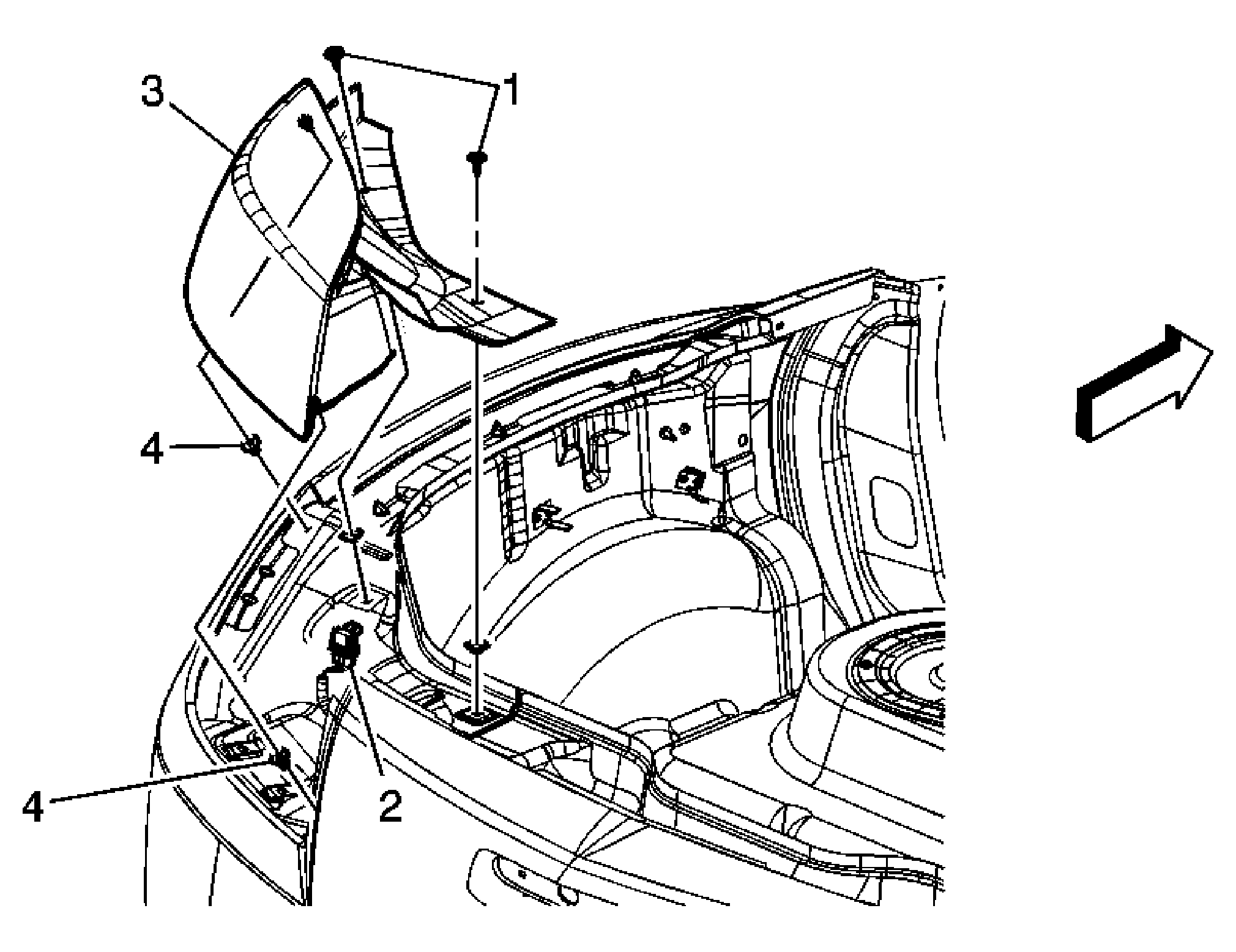

| Callout | Component Name |
|---|---|
|
NOTE:
Refer to Fastener Notice
. Fastener Tightening Specifications:
Refer to Fastener Tightening Specifications .Preliminary Procedure: Open the rear compartment lid in order to access the tail lamp screws. |
|
| 1 | Tail Lamp Assembly Screws (Qty: 2) Tighten: 2.5 N.m (22 lb in) |
| 2 | Chassis Electrical Connector Tip: Lift the tail lamp in order to disengage the retainer clips then disconnect the electrical connector. |
| 3 | Tail Lamp Assembly Tip: Transfer the bulb into the new tail lamp. |
| 4 | Quarter Filler Panel Nuts (Qty: 2) Tip: Ensure the quarter filler panel nuts are not damaged. Replace if damaged. |
