ABS Schematics

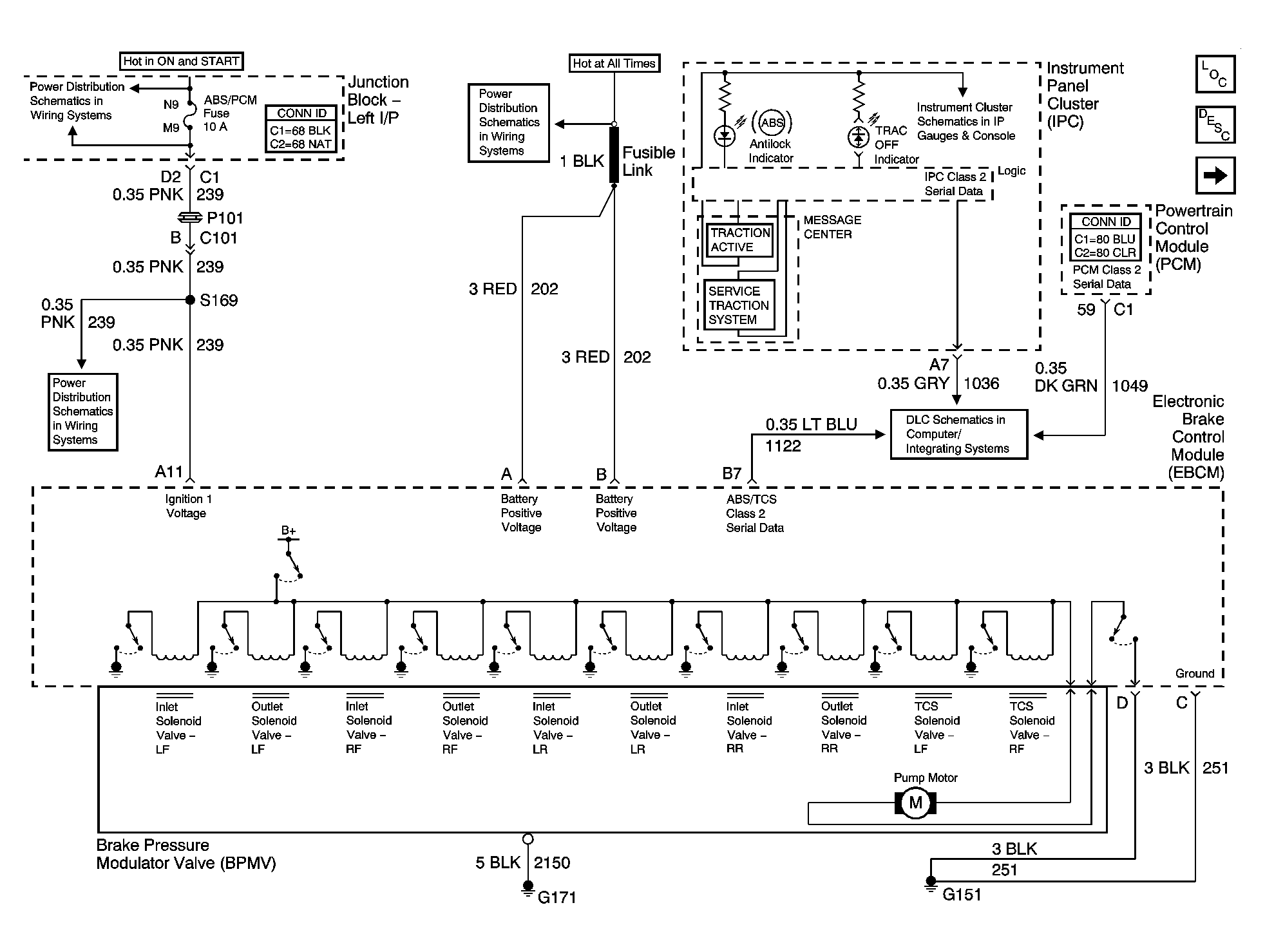

Fig 1: Data Link, Ground, MIL & Power Schematic (JL9)

Courtesy of GENERAL MOTORS CORP.

Fig 2: Wheel Speed Sensors Schematic

Courtesy of GENERAL MOTORS CORP.

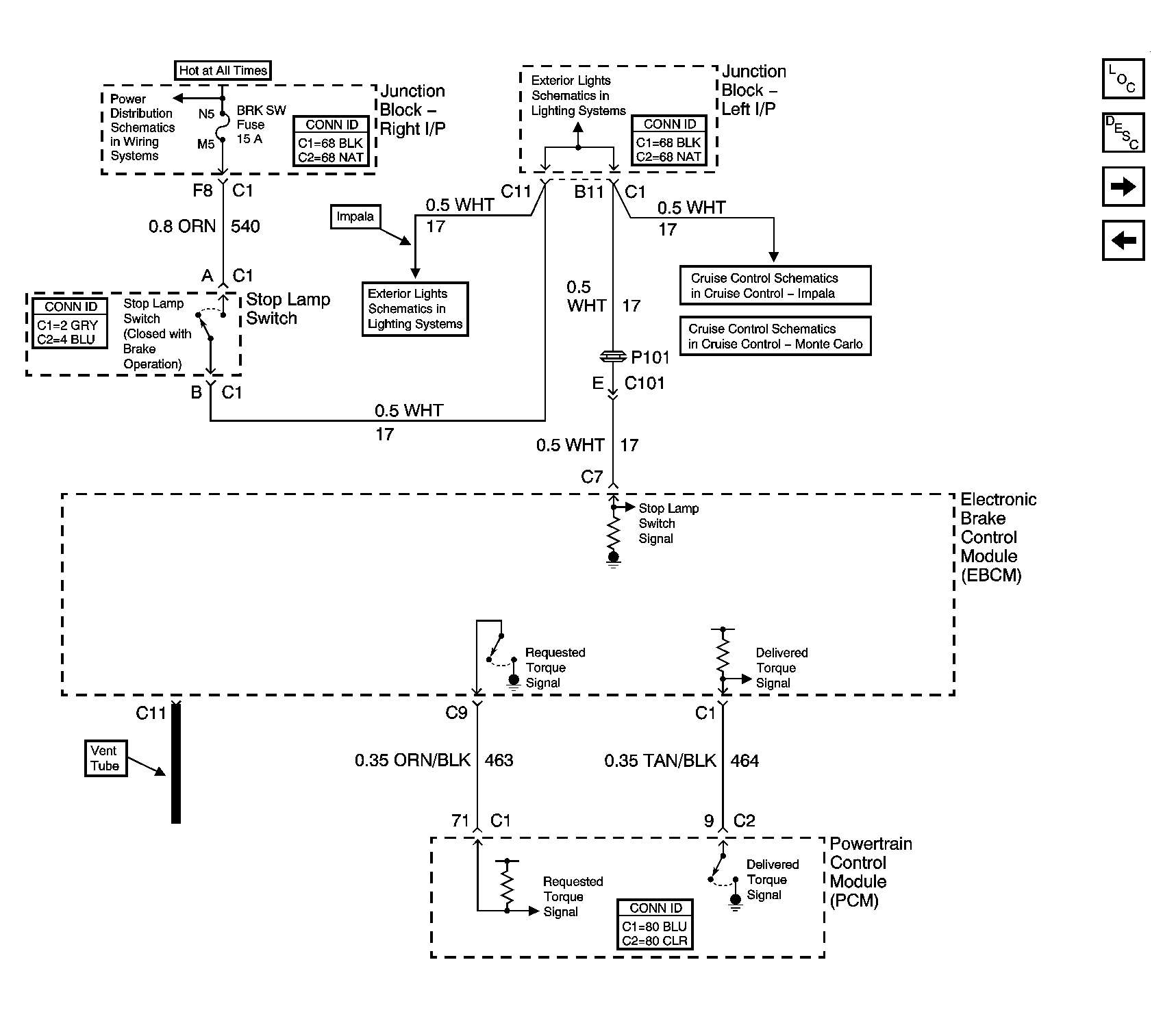

Fig 3: Stop Lamps & Torque Signals Schematic

Courtesy of GENERAL MOTORS CORP.

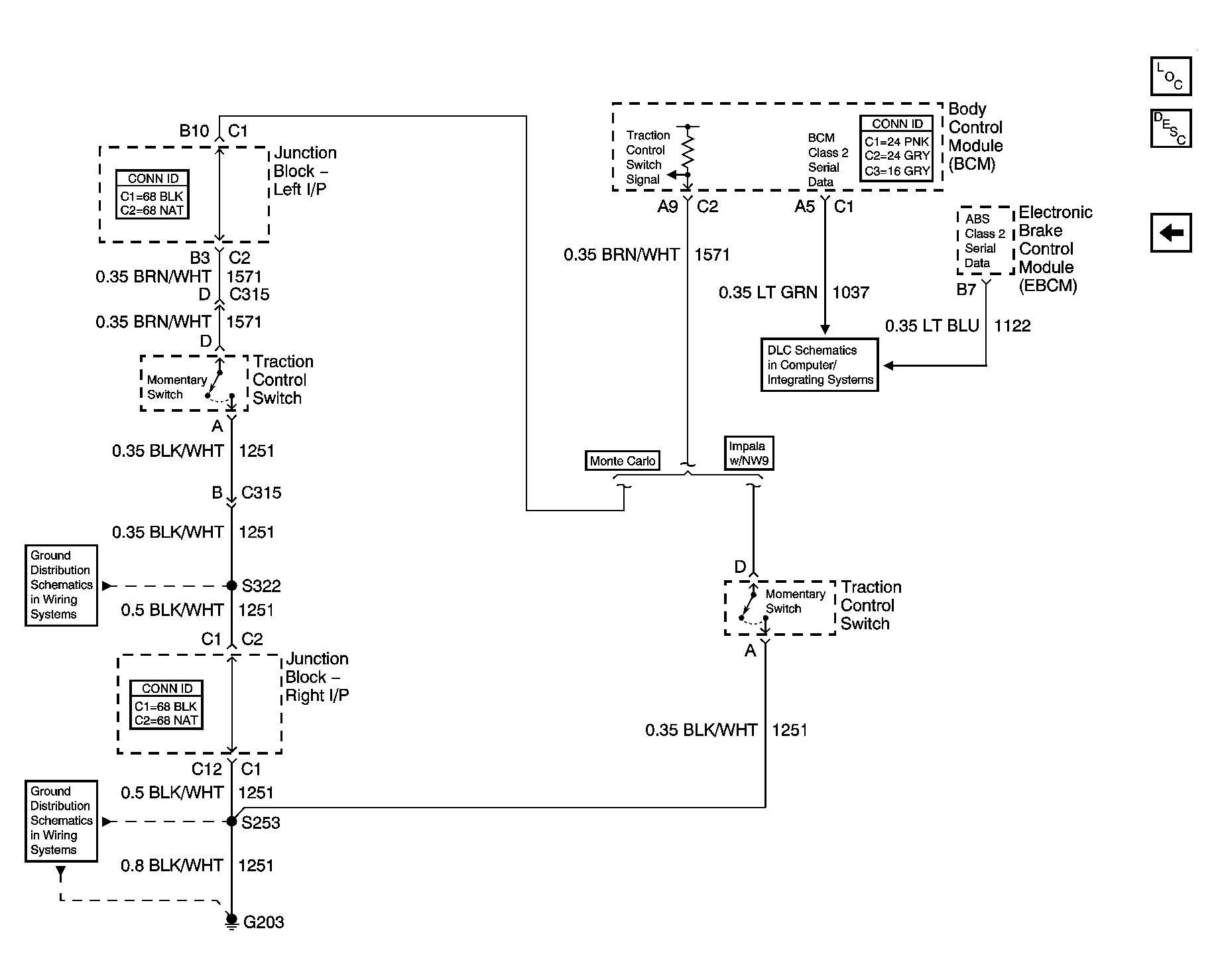

Fig 4: Traction Control Switch Schematic

Courtesy of GENERAL MOTORS CORP.
