Automatic Level Control Component Views
WARNING: This page is about a different car, the 2007 Buick Lucerne. However, it is still accessible from the selected car via links, so may be relevant.
Courtesy of GENERAL MOTORS CORP.

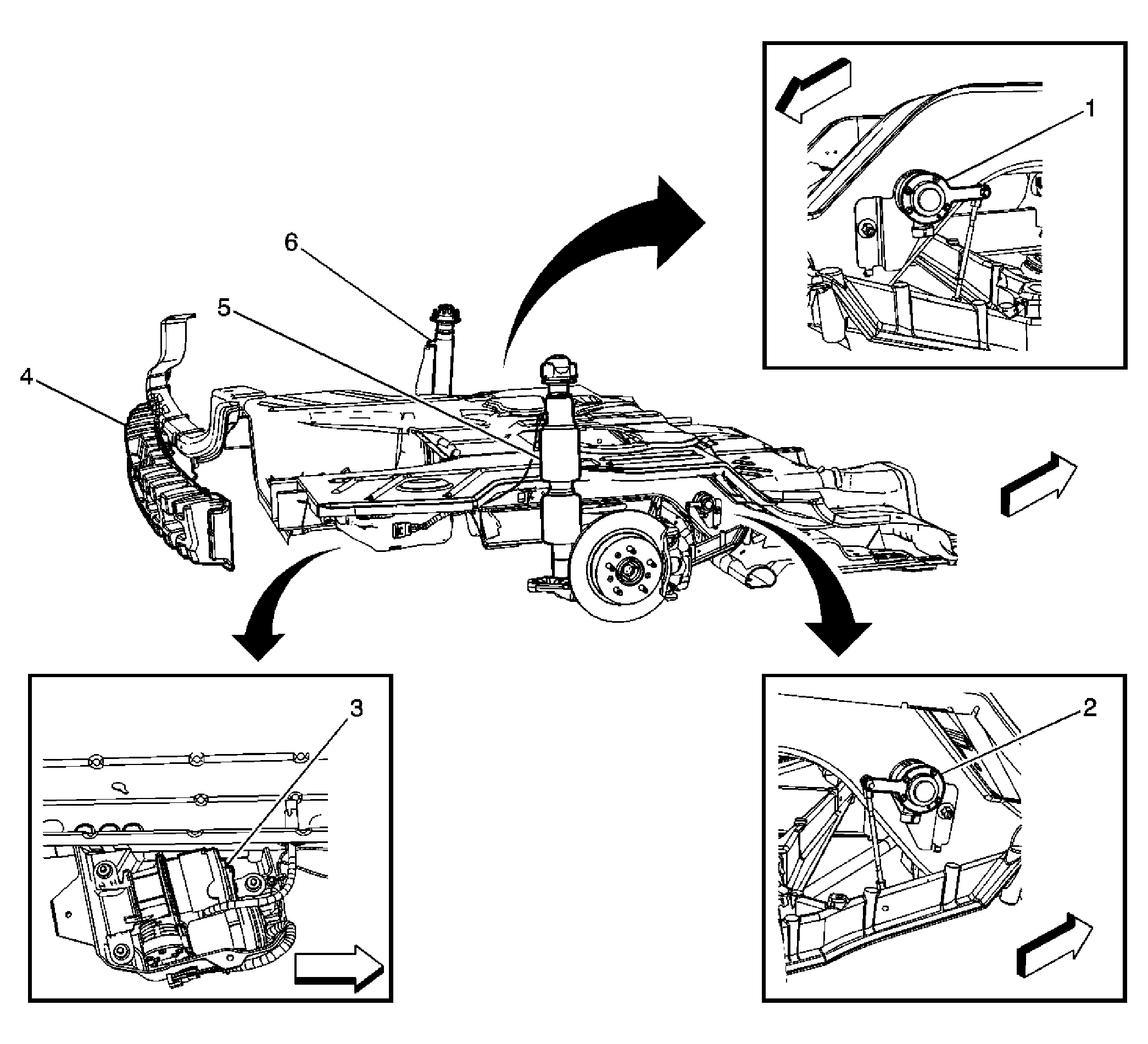

| Callout |
Component Name |
| 1 |
Suspension Position Sensor - LR (F55) |
| 2 |
Suspension Position Sensor - RR (F55) |
| 3 |
Automatic Level Control (ALC) Compressor |
| 4 |
Rear Bumper |
| 5 |
Suspension Damper - RR (F55) |
| 6 |
Suspension Damper - LR (F55) |
Courtesy of GENERAL MOTORS CORP.
| Callout |
Component Name |
| 1 |
Suspension Position Sensor - RR (F55) |
| 2 |
Wheel Speed Sensor - RR |
| 3 |
Body Harness |
| 4 |
Wheel Speed Sensor - LR |
| 5 |
Suspension Position Sensor - LR (F55), Automatic Level Control Module (FE1, FE3, F41) |
| 6 |
C308 Rear Wheel Speed Harness to Chassis Harness |
| 7 |
Rear Wheel Speed Harness |
