Hybrid Controls Schematics

WARNING: This page is about a different car, the 2008 Chevrolet Malibu. However, it is still accessible from the selected car via links, so may be relevant.

Fig 1: A/C Field Voltage Schematic

Courtesy of GENERAL MOTORS CORP.

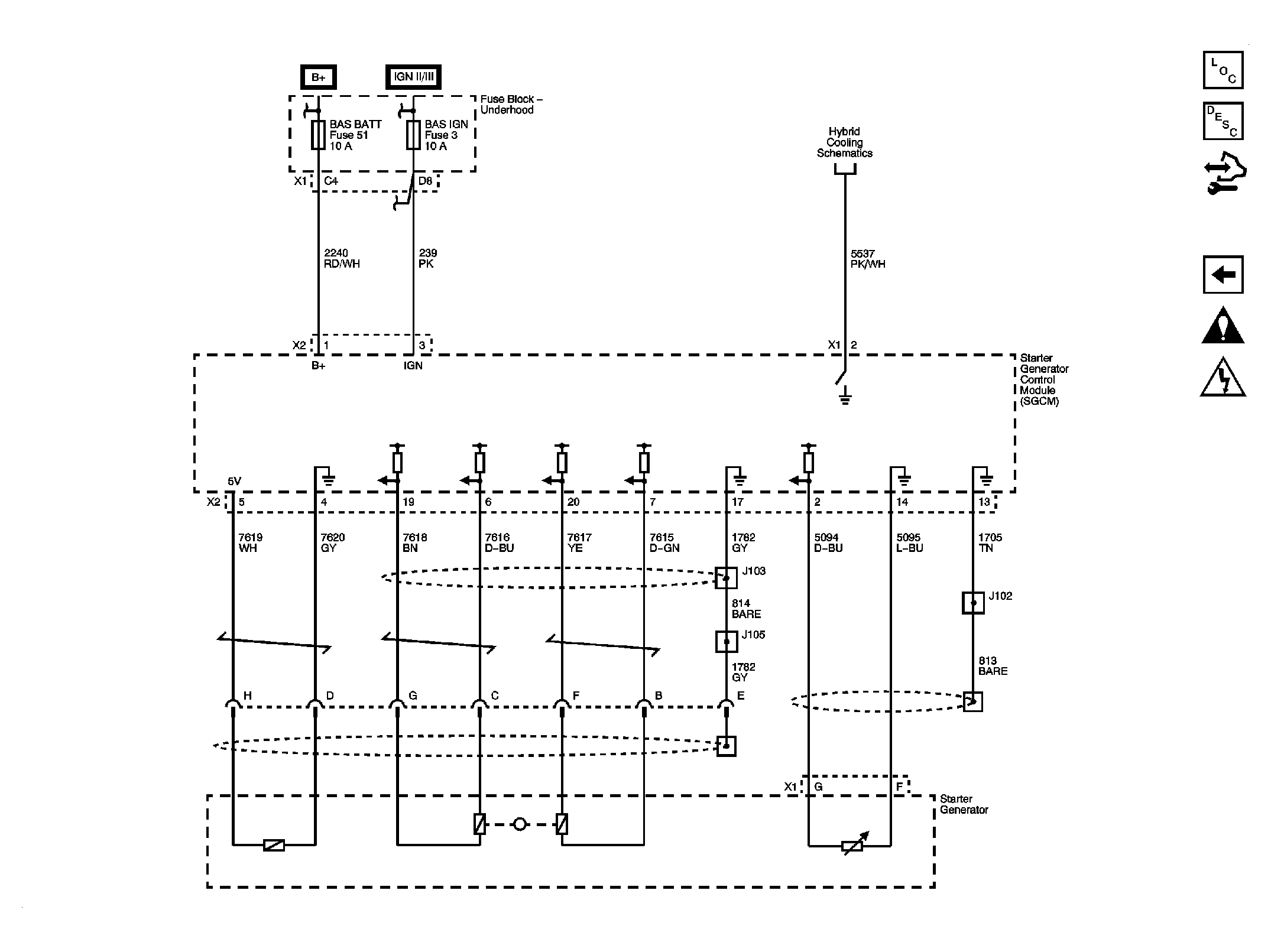

Fig 2: Motor Controls Schematic

Courtesy of GENERAL MOTORS CORP.
