Installation Procedure

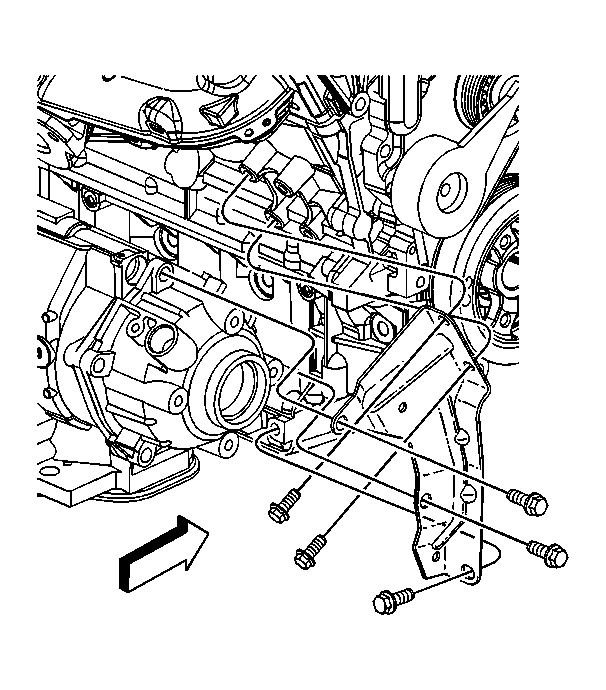

    Fig 1: Removing/Installing Transaxle Brace
    GM631093Courtesy of GENERAL MOTORS CORP.
  1. Install the transaxle brace.
    2. NOTE: Refer to Fastener Notice in Cautions and Notices.
  2. Install the transaxle brace bolts to the transaxle.

    Tighten:  Tighten the transaxle brace bolts to the transaxle to 43 N.m (32 lb ft).

  3. Install the transaxle brace bolts to the engine.

    Tighten:  Tighten the transaxle brace bolts to the engine to 63 N.m (46 lb ft).

  4. Install the right front tire and wheel assembly. Refer to Tire and Wheel Removal and Installation in Tires and Wheels.
  5. Lower the vehicle.
