Installation Procedure

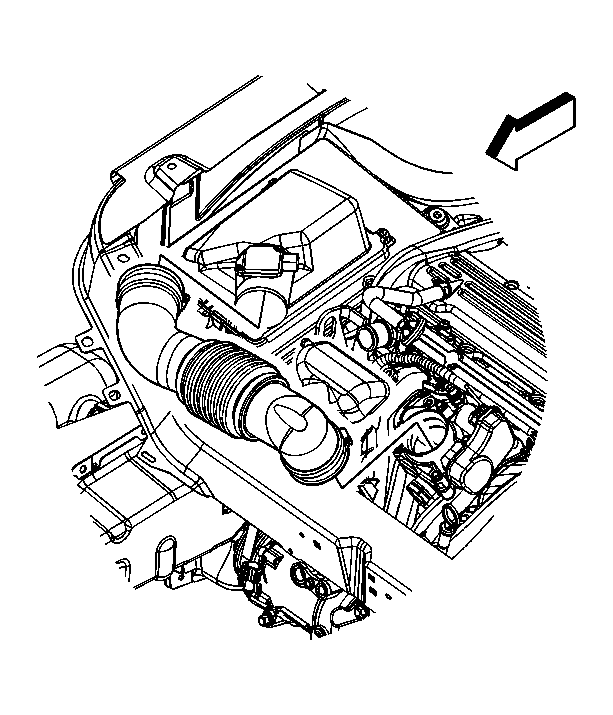

    Fig 1: Identifying Outlet Air Duct
    GM1459592Courtesy of GENERAL MOTORS CORP.
    NOTE: Refer to Fastener Notice in Cautions and Notices.
  1. Install the air outlet duct to the air cleaner cover and the throttle body.
  2. Tighten the outlet air duct clamps to the air cleaner cover and the throttle body.

    Tighten:  Tighten the clamps to 2 N.m (18 lb in).

    3. Fig 2: Identifying PCV Clean Air Tube Clamp
    GM1459590Courtesy of GENERAL MOTORS CORP.
  3. Install the PCV clean air tube to the outlet duct.
  4. Position the PCV clean air tube clamp.
