Power Window Schematics

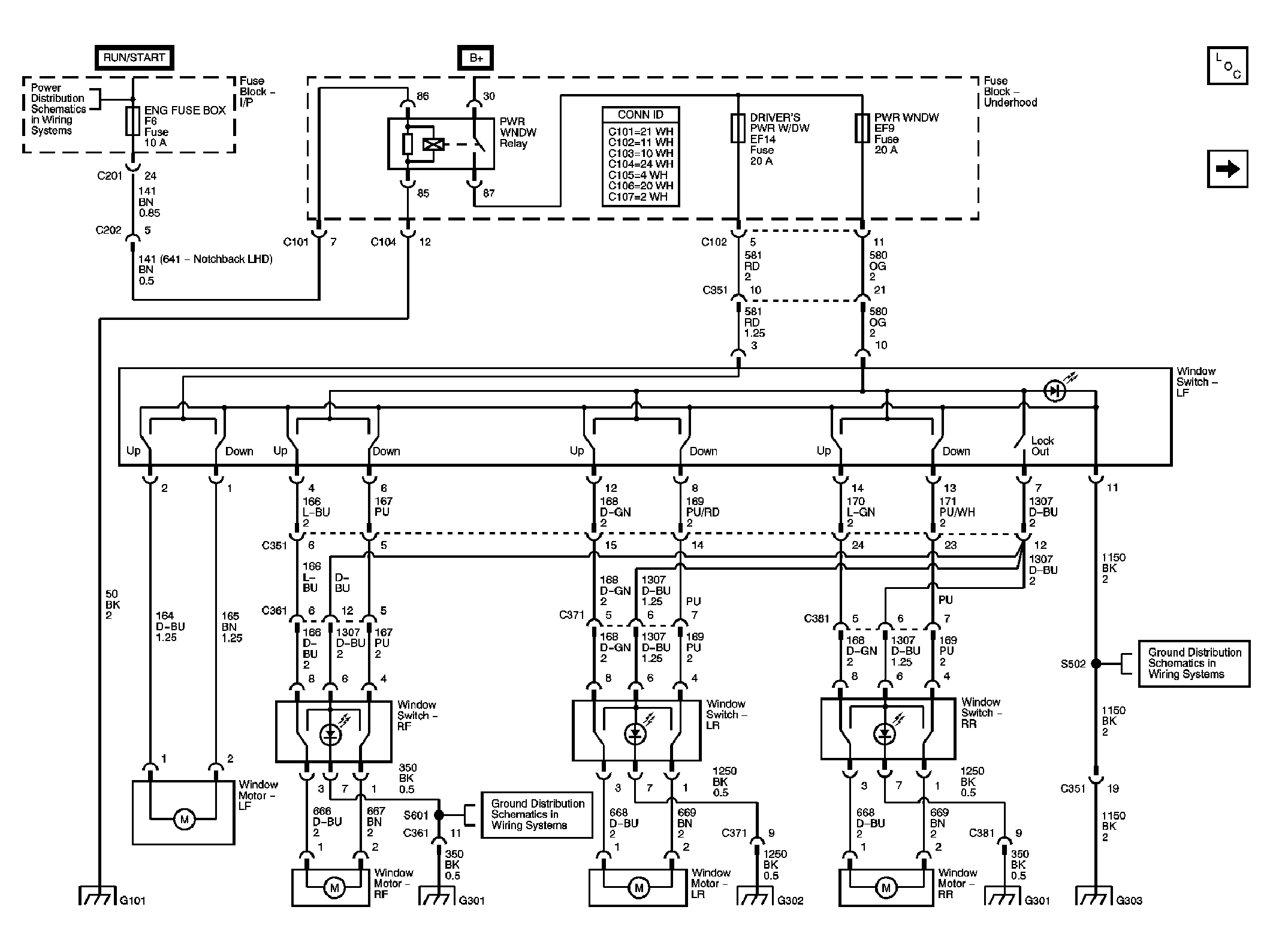

Fig 1: Driver Power Window Schematic
GM1371941Courtesy of GENERAL MOTORS CORP.

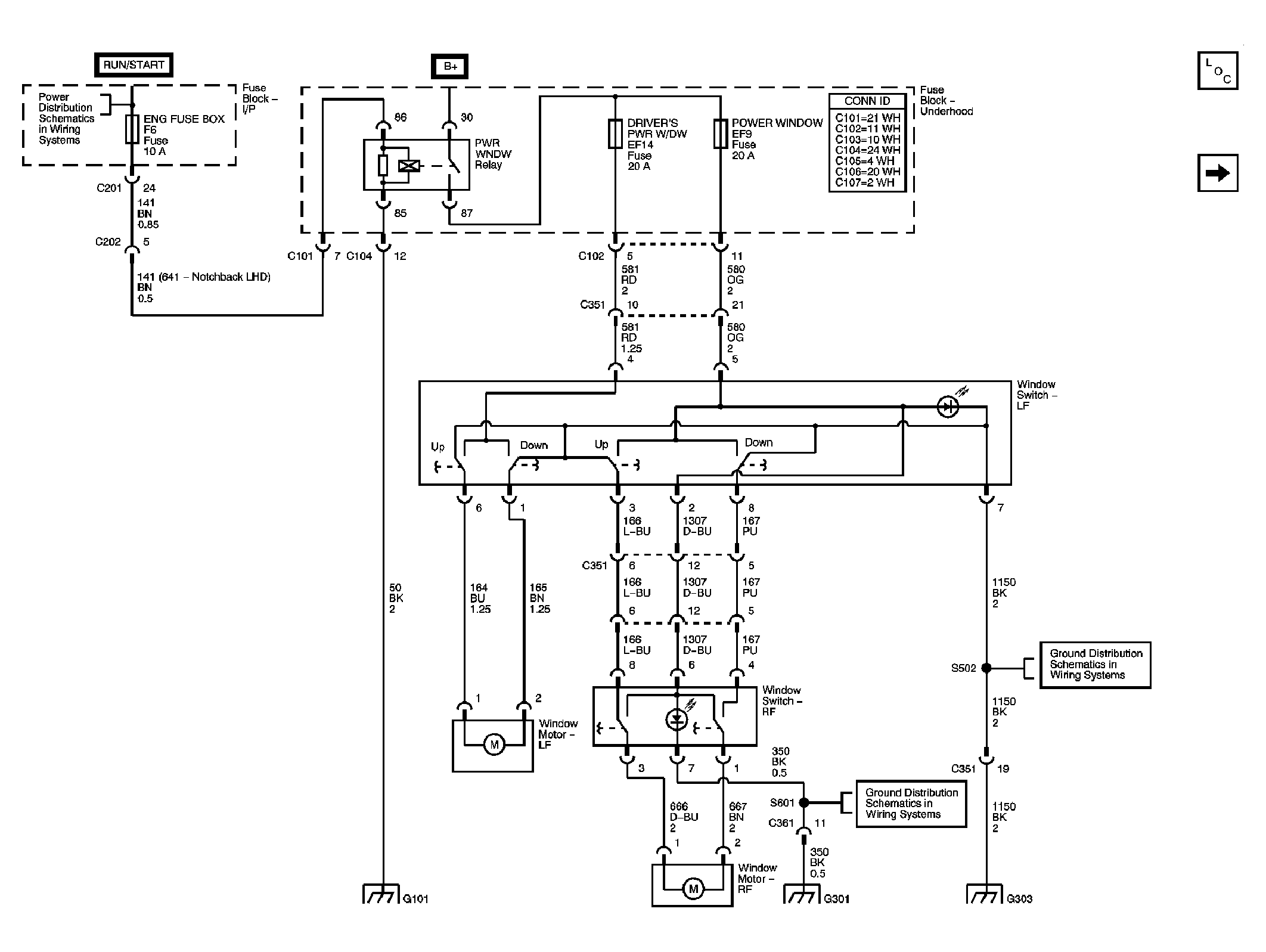

Fig 2: Passenger Power Window Schematic
GM1360860Courtesy of GENERAL MOTORS CORP.
