Outside Mirror Schematics

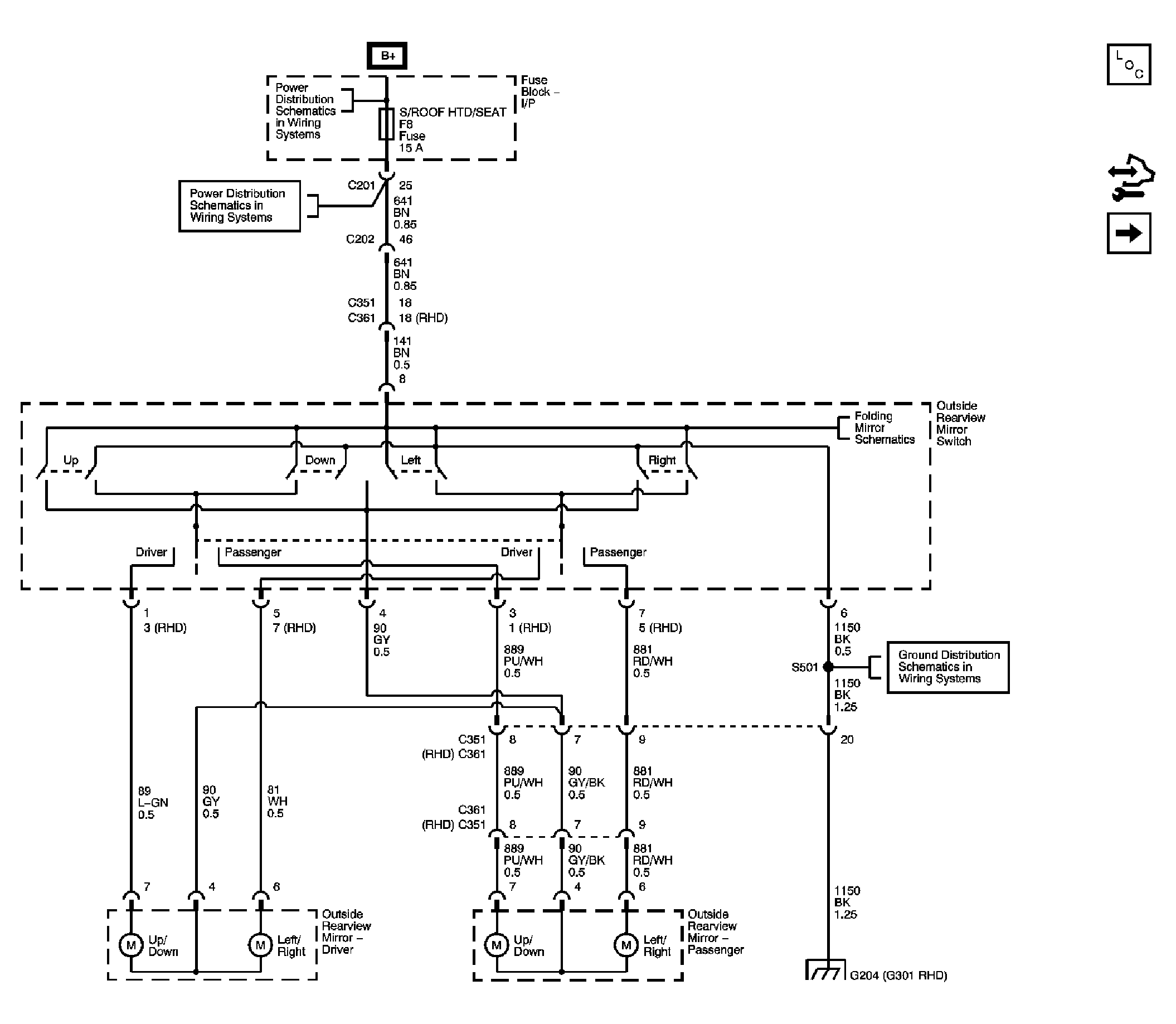

Fig 1: Power Mirrors Schematic
GM1360858Courtesy of GENERAL MOTORS CORP.

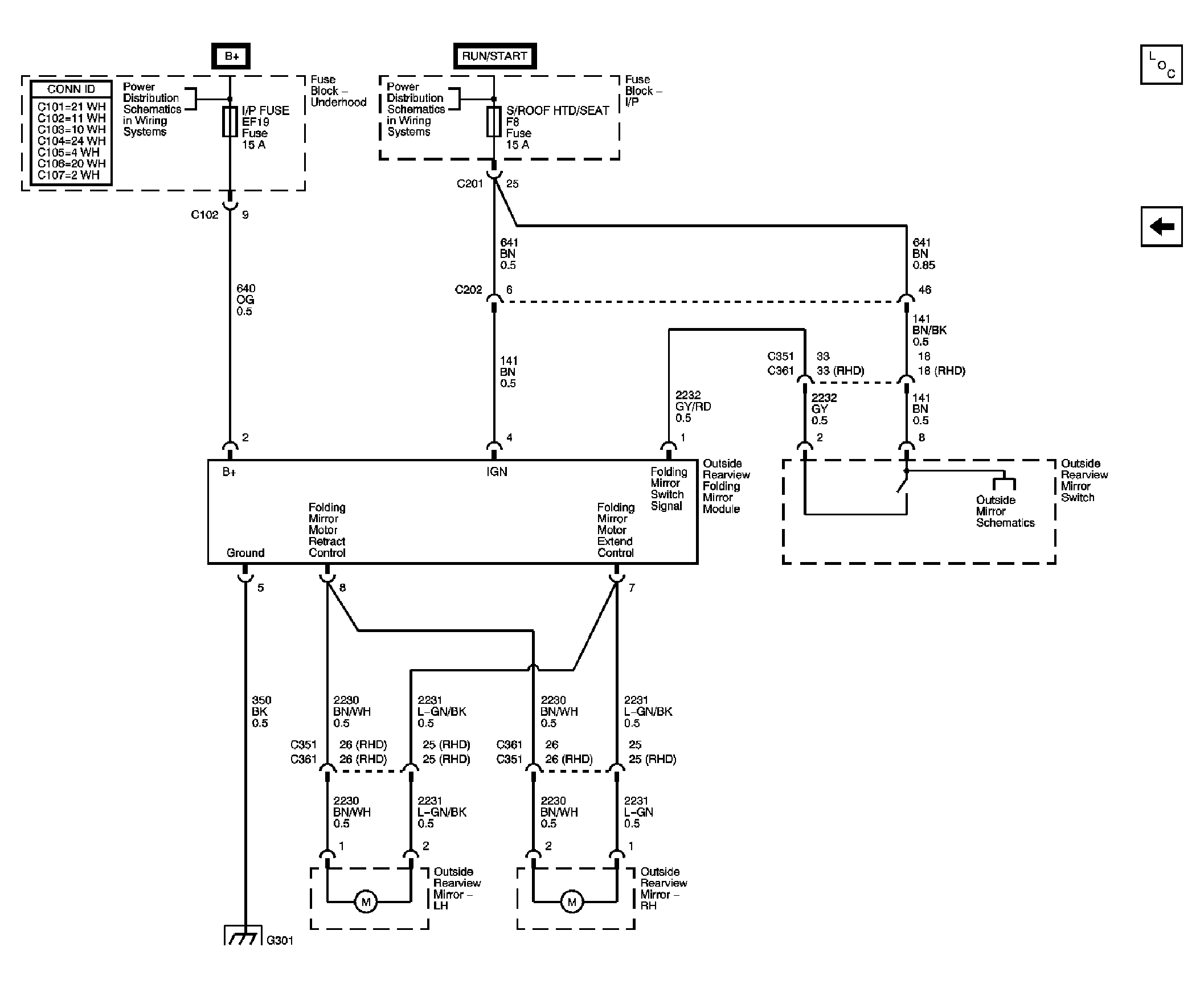

Fig 2: Power Folding Mirrors Schematic
GM1360859Courtesy of GENERAL MOTORS CORP.
