ABS Schematics

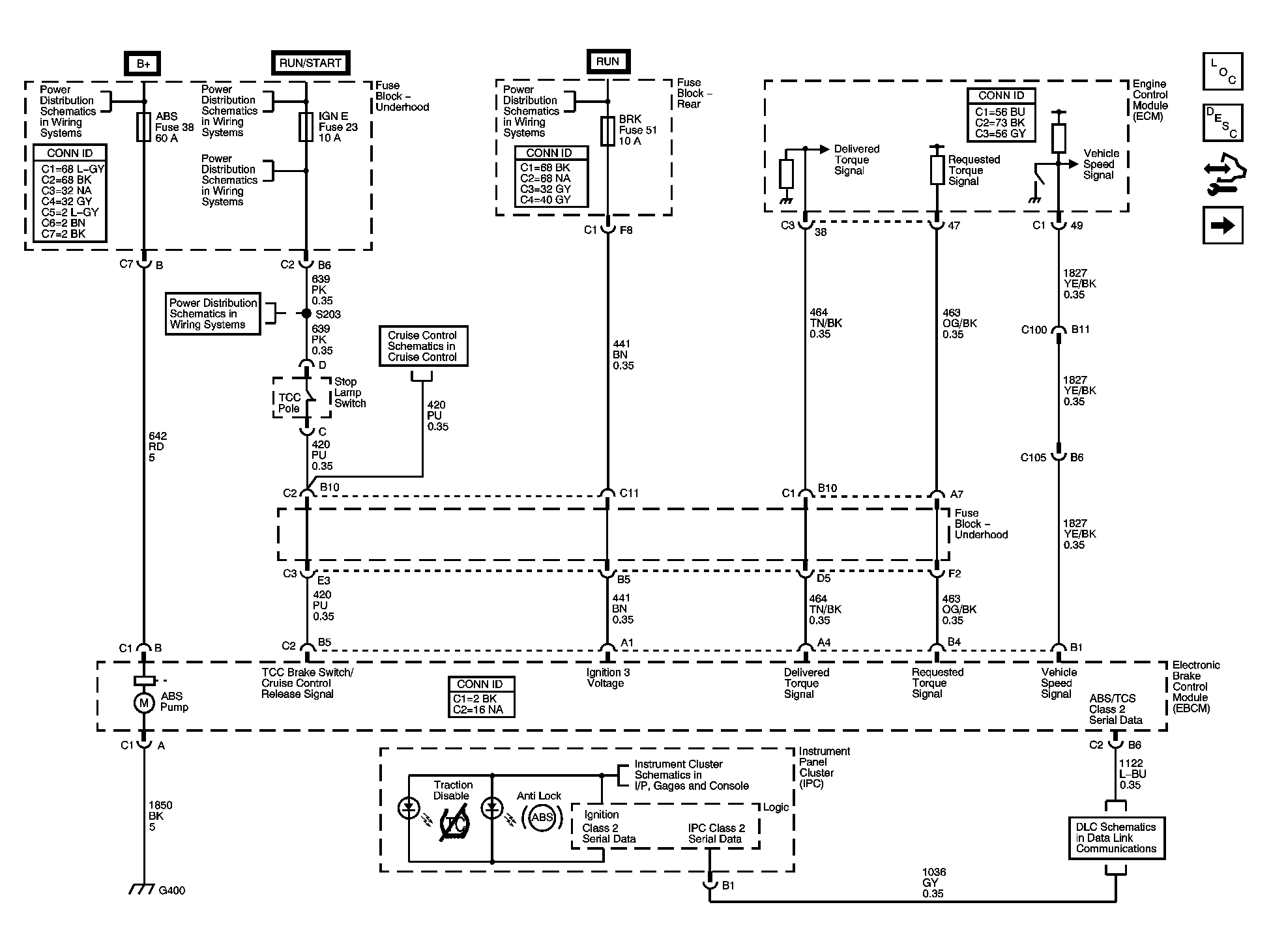

Fig 1: Power, Ground & Electronic Brake Control Module Schematic
GM1458535Courtesy of GENERAL MOTORS CORP.

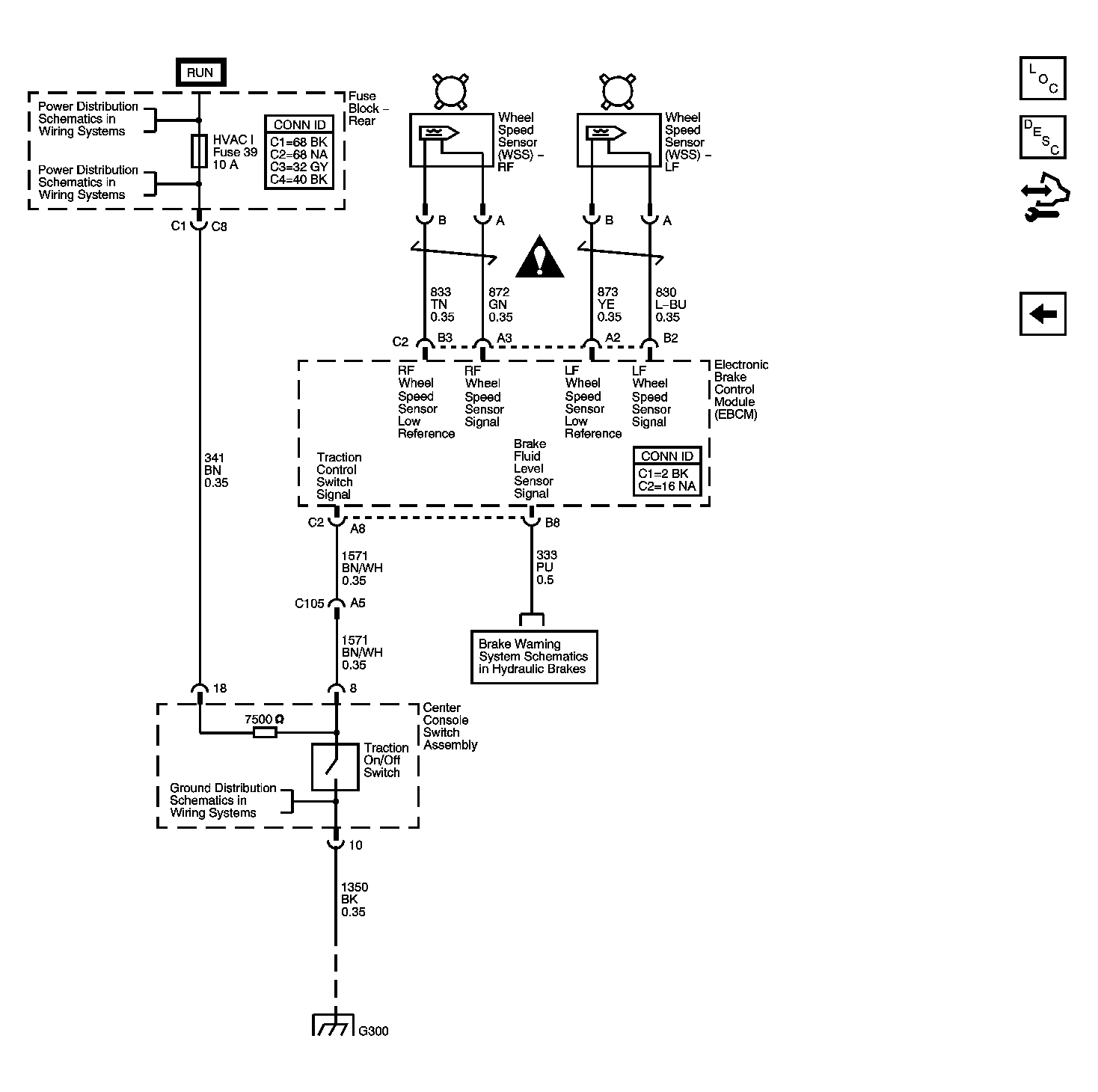

Fig 2: Wheel Speed Sensors & Traction Control Schematic
GM1458536Courtesy of GENERAL MOTORS CORP.
