Fuel Rail Assembly

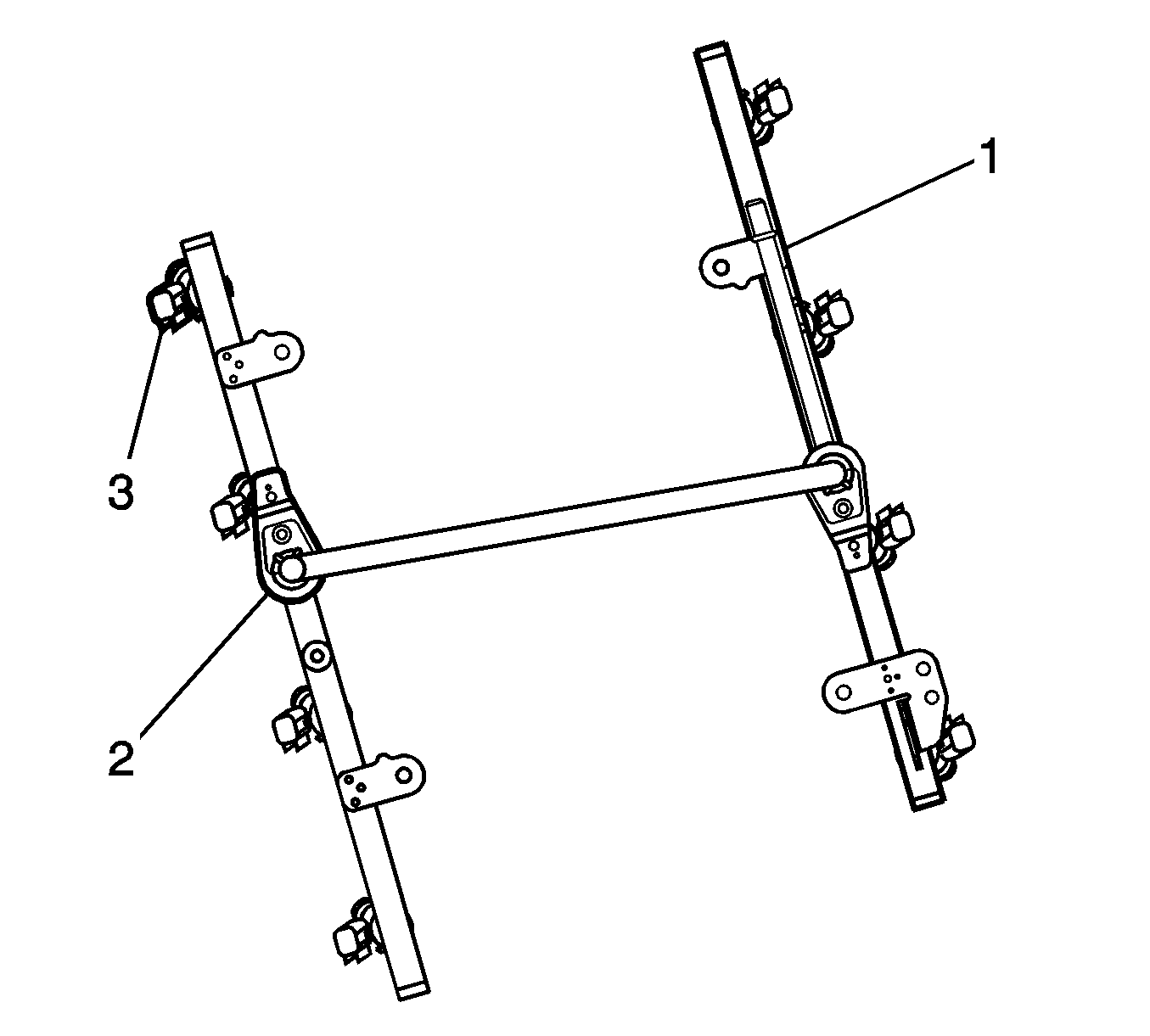

Fig 1: View Of Fuel Rail Assembly

Courtesy of GENERAL MOTORS CORP.

The fuel rail assembly attaches to the engine intake manifold. The fuel rail assembly performs the following functions:

• Positions the injectors (3) in the intake manifold
• Distributes fuel evenly to the injectors (2)
• Fuel Rail Feed Pipe (1)
