Installation Procedure

WARNING: This page is about a different car, the 2004 GMC Sierra, 2004 GMC Cab & Chassis Sierra, 2004 Chevrolet Silverado, and 2004 Chevrolet Cab & Chassis Silverado. However, it is still accessible from the selected car via links, so may be relevant.

Install the stop lamp switch (2).
Install the pushrod retaining clip (4).
Connect the electrical connector to the stop lamp switch (2).

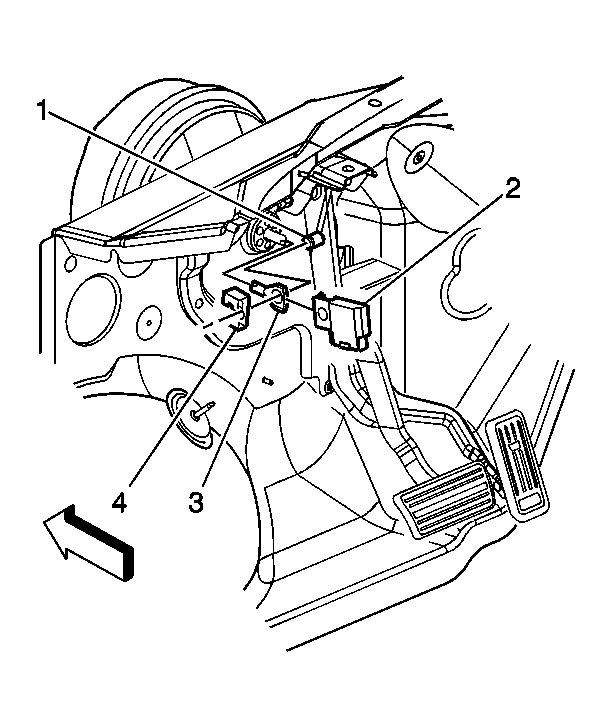

Fig 1: View Of Pedal Stud, Stop Lamp Switch, Pushrod & Retaining Clip

Courtesy of GENERAL MOTORS CORP.
