Cellular Communication Component Views
WARNING: This page is about a different car, the 2005 Chevrolet Corvette. However, it is still accessible from the selected car via links, so may be relevant.

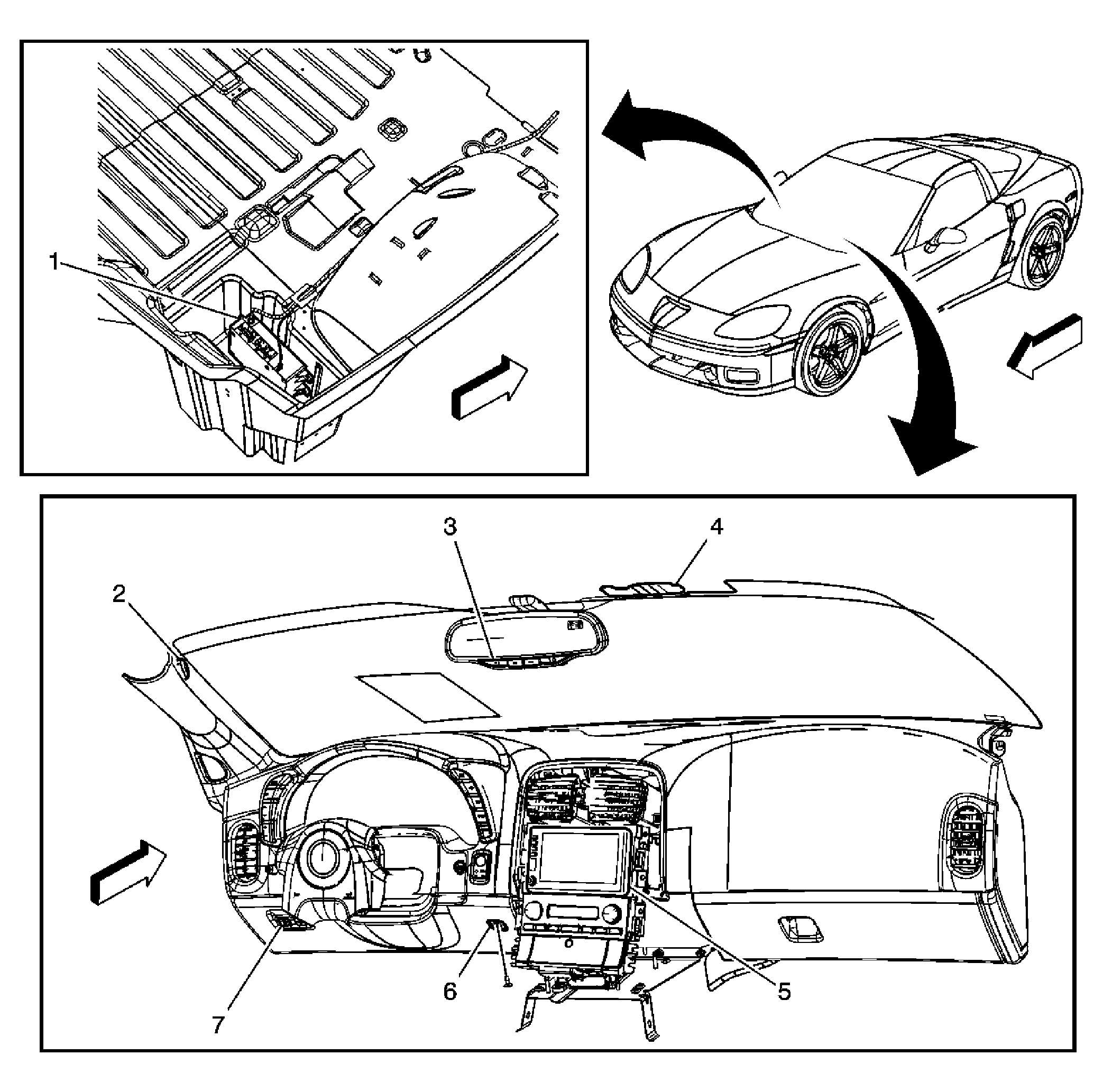

Courtesy of GENERAL MOTORS CORP. IDENTIFYING CELLULAR COMMUNICATION COMPONENTS (FIG. 3)
| Callout |
Component Name |
| 1 |
Vehicle Communication Interface Module (VCIM) (UE1) |
| 2 |
Cellular Microphone |
| 3 |
Inside Rearview Mirror |
| 4 |
Cellular and Navigational Antenna (UE1) |
| 5 |
Radio |
