Automatic Transmission Controls Schematics

WARNING: This page is about a different car, the 2005 Chevrolet Corvette. However, it is still accessible from the selected car via links, so may be relevant.

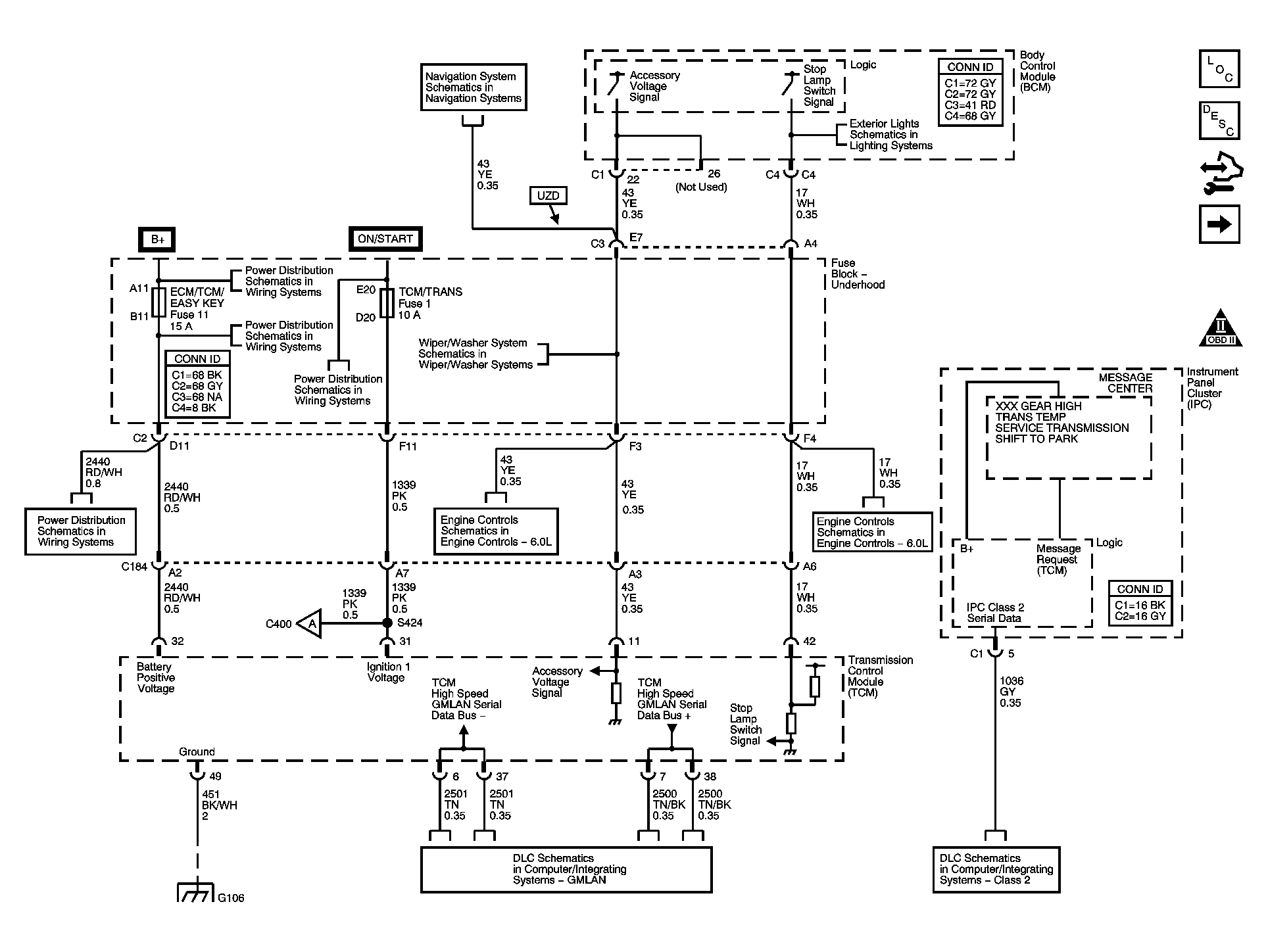

Fig 1: DLC, Ground, MIL and Power Schematics

Courtesy of GENERAL MOTORS CORP.

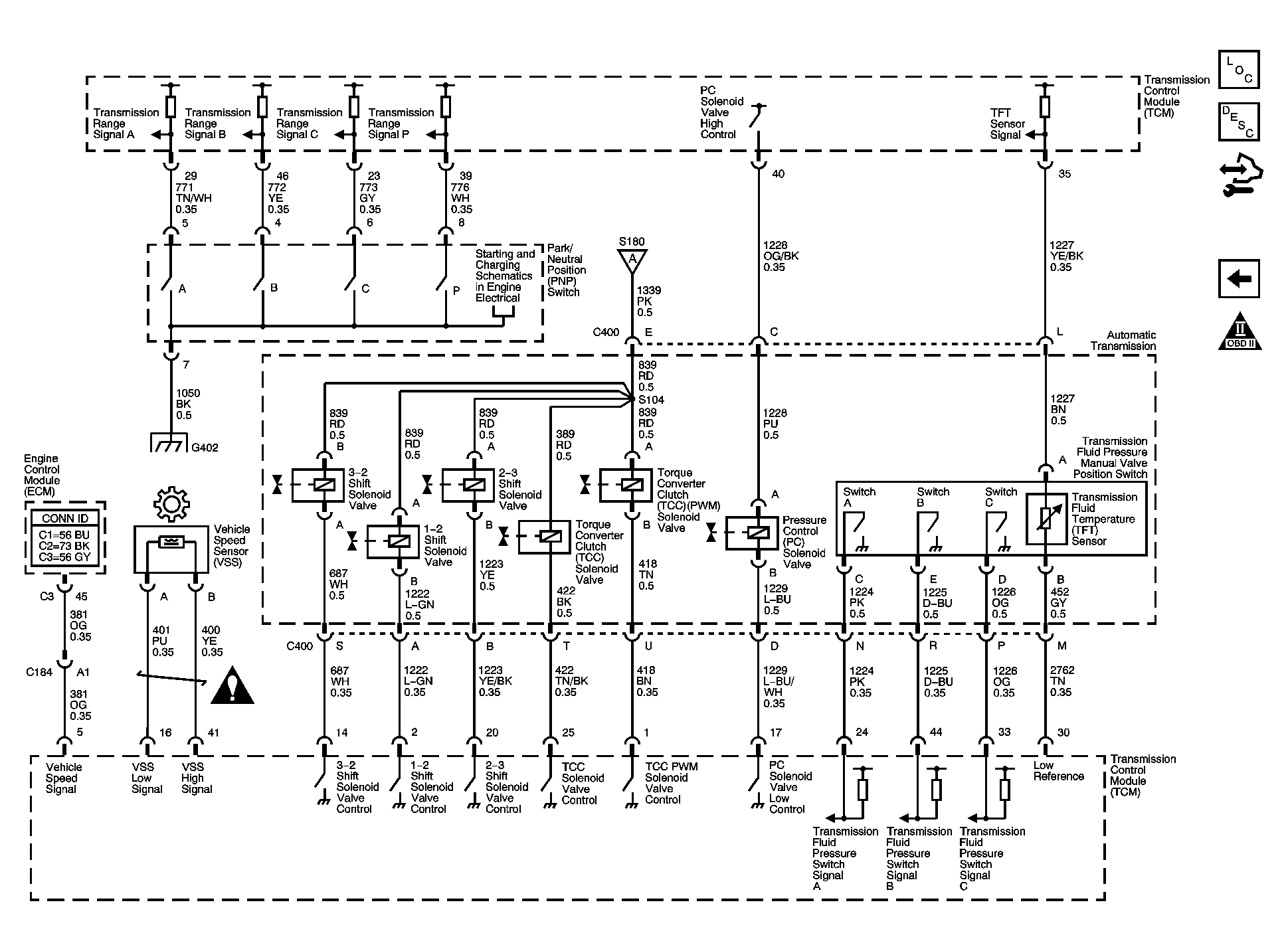

Fig 2: PNP, Solenoids, TFT and VSS Schematics

Courtesy of GENERAL MOTORS CORP.
