Cruise Control Schematics

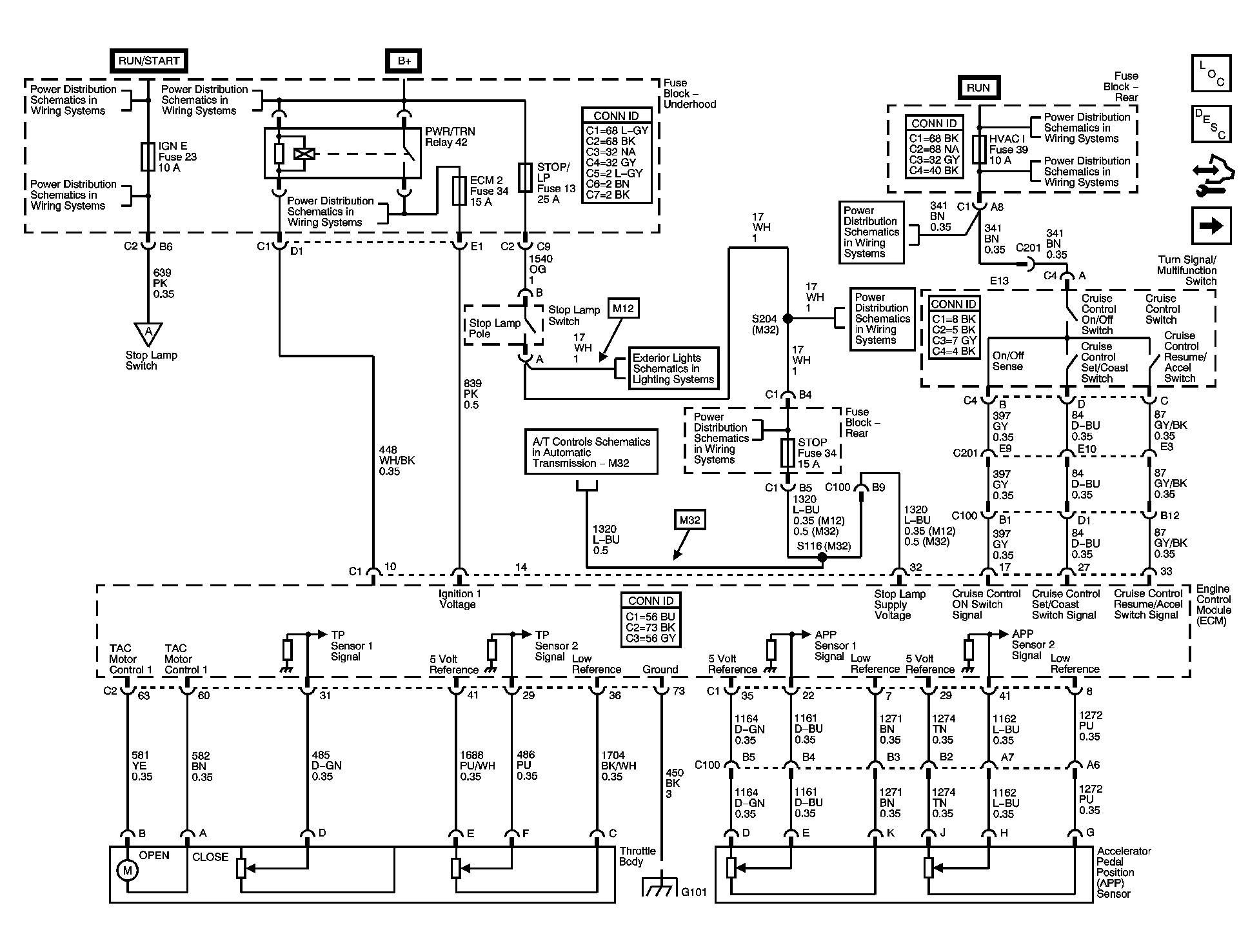

Fig 1: Power, Ground, TAC Module, APP Sensor & Throttle Body Schematic

Courtesy of GENERAL MOTORS CORP.

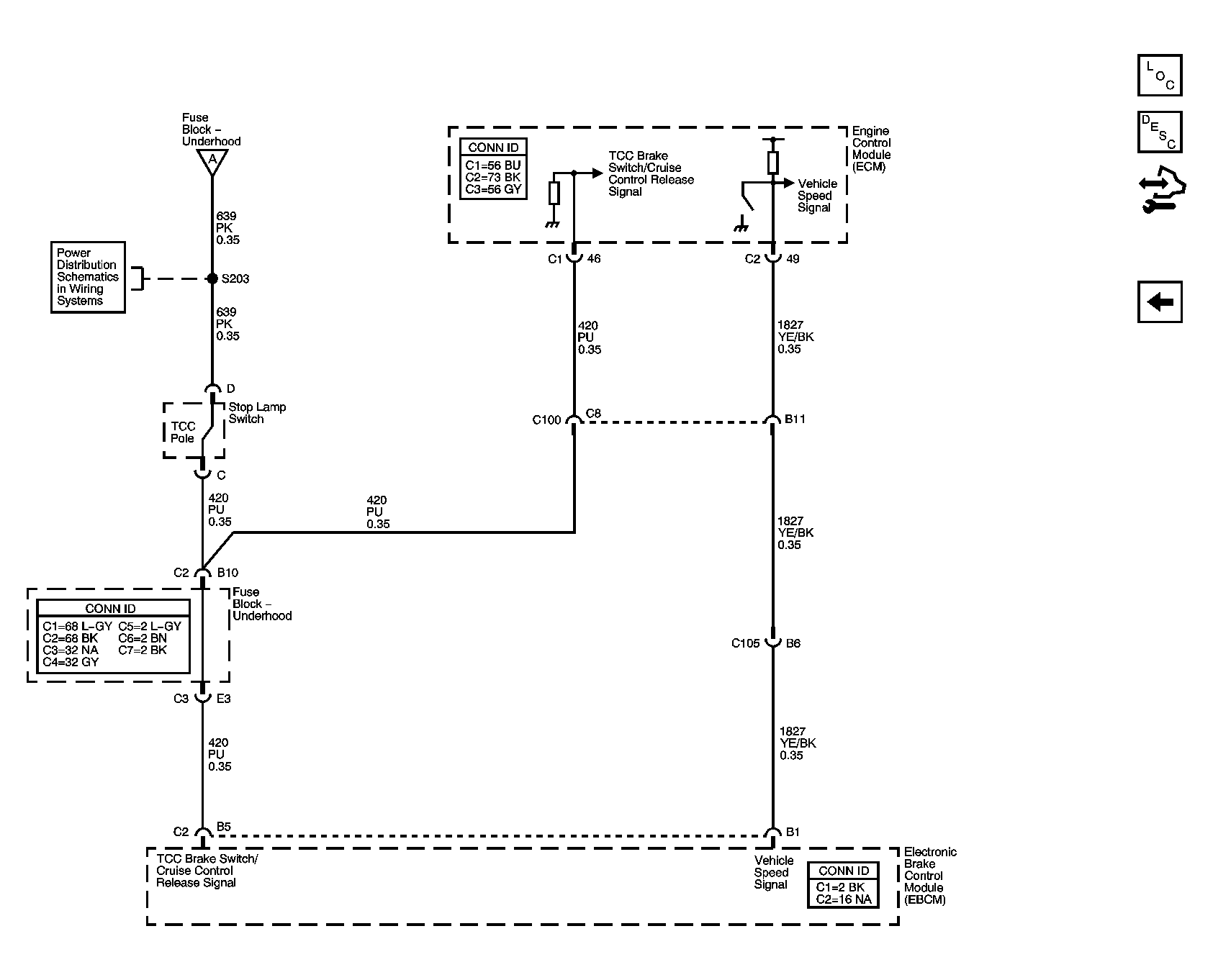

Fig 2: Stop Lamp Switch, EBCM & PCM Schematic

Courtesy of GENERAL MOTORS CORP.
