Installation Procedure

WARNING: This page is about a different car, the 2005 Chevrolet Corvette. However, it is still accessible from the selected car via links, so may be relevant.
  1. Connect the inside air temperature sensor electrical connector.
    2. IMPORTANT: Ensure that the inside temperature sensor is fully seated into the DIC bezel.

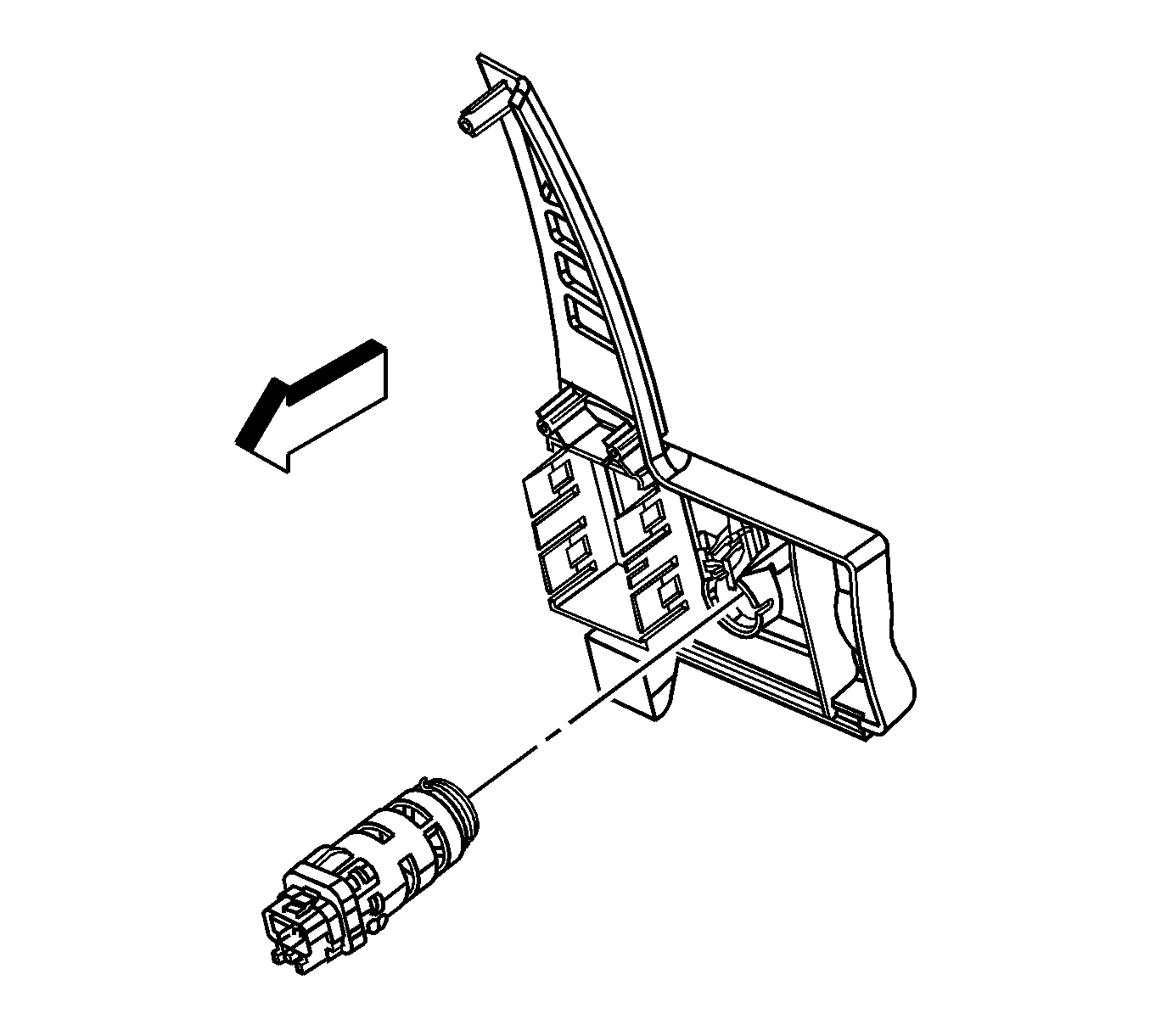

    Fig 1: View Of Inside Air Temperature Sensor Electrical Connector
    GM922611Courtesy of GENERAL MOTORS CORP.
  2. Install the inside air temperature sensor.
  3. Connect DIC to the I/P.
    4. NOTE: Refer to Fastener Notice in Cautions and Notices.
  4. Install the DIC retaining screw.

    Tighten:  Tighten the screw to 1.9 N.m (17 lb in).

  5. Install the knee bolster. Refer to Trim Panel Replacement - Knee Bolster in Instrument Panel, Gages and Console.
