Manual Roof System Component Views
WARNING: This page is about a different car, the 2005 Chevrolet Corvette. However, it is still accessible from the selected car via links, so may be relevant.
Courtesy of GENERAL MOTORS CORP.

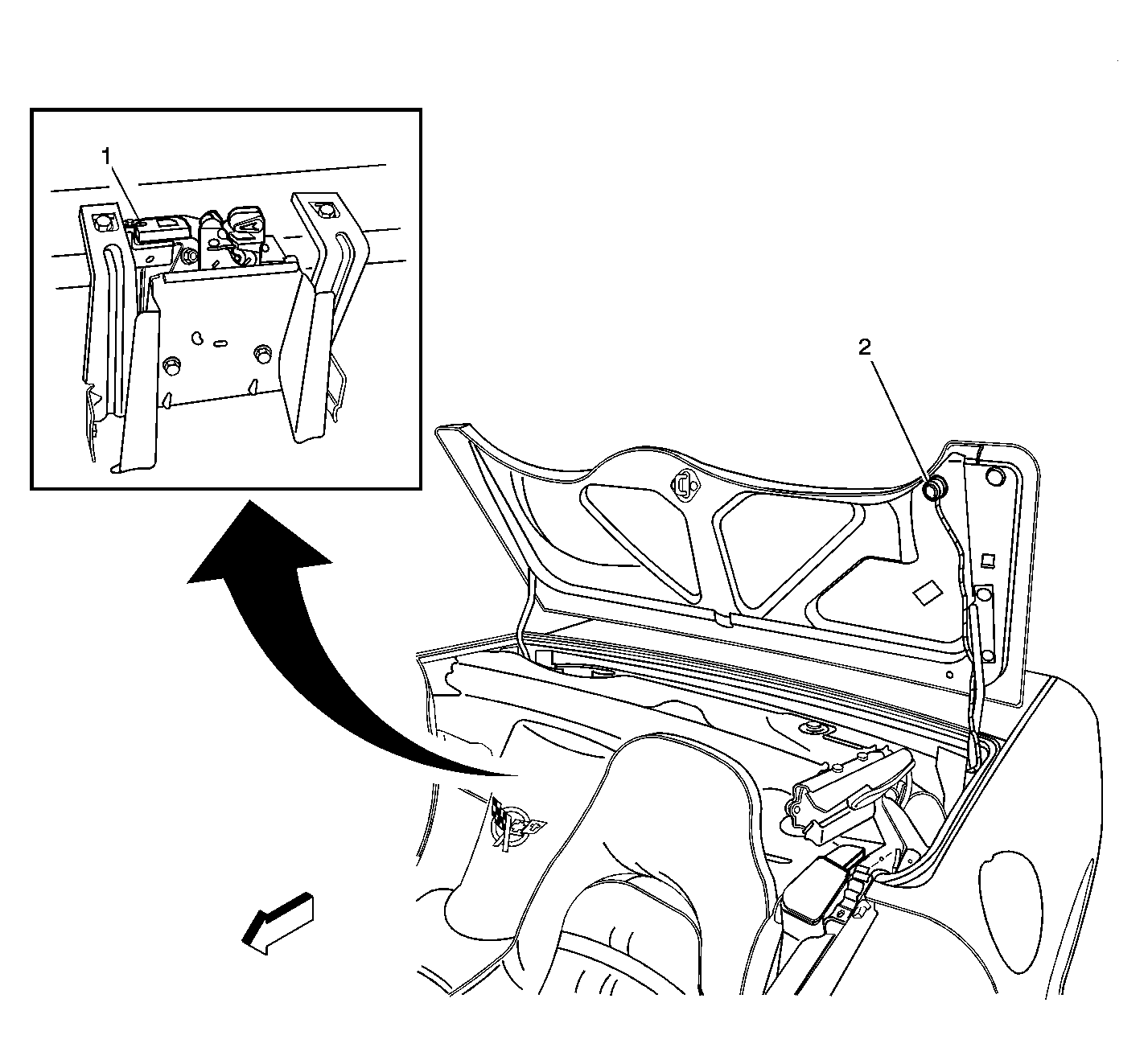

| Callout |
Component Name |
| 1 |
Tonneau Latch Actuator |
| 2 |
Tonneau Release Switch (w/o CM7) |
Courtesy of GENERAL MOTORS CORP.
| Callout |
Component Name |
| 1 |
Actuator - Bow 5 |
| 2 |
Header Latched Switch |
| 3 |
Actuator - Bow 5 |
| 4 |
Tonneau Latch Actuator |
| 5 |
Actuator - Bow 1 |
| 6 |
Pump and Valve Assembly (CM7) |
| 7 |
Luggage Barrier Switch Connector (CM7) |
| 8 |
Actuator |
| 9 |
Tonneau Pulldown Actuator (CM7) |
| 10 |
Folding Top Module (FTM) (CM7) |
| 11 |
Actuator |
| 12 |
Tonneau Open Switch (CM7) |
| 13 |
Actuator |
