Installation Procedure

WARNING: This page is about a different car, the 2005 Chevrolet Corvette. However, it is still accessible from the selected car via links, so may be relevant.
    Fig 1: Locating Valve Body Check Balls
    GM676923Courtesy of GENERAL MOTORS CORP.
  1. Install the checkballs (1-7) in the valve body.

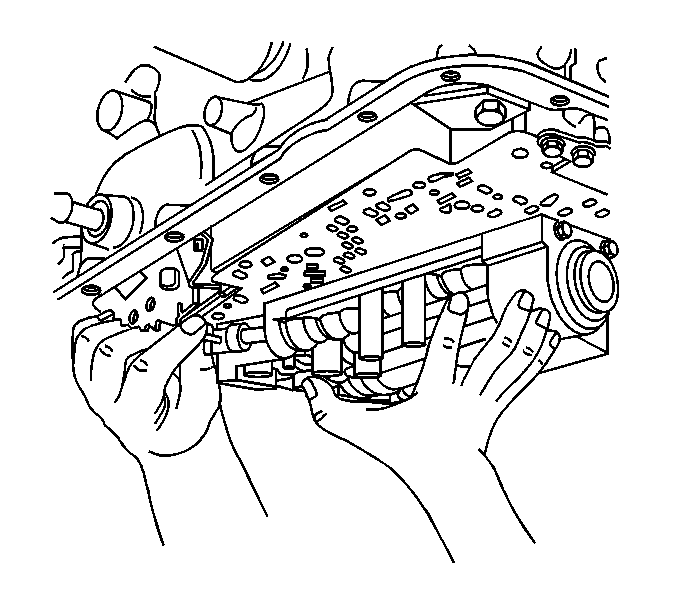

    2. Fig 2: View Of Valve Body To Transmission Case
    GM678315Courtesy of GENERAL MOTORS CORP.
  2. Install the control valve body to the transmission case while simultaneously connecting the manual valve link to the manual valve.
    3. Fig 3: Verifying Manual Valve Link Is Installed Properly To Inside Detent Lever & Manual Valve
    GM670822Courtesy of GENERAL MOTORS CORP.
  3. Verify that the manual valve link (3) is installed properly to the inside detent lever (1) and the manual valve (2).
    4. Fig 4: Installing One Bolt (M6 X 1.0 X 47.5) Hand Tight In The Center Of The Valve Body
    GM670828Courtesy of GENERAL MOTORS CORP.
  4. Install one bolt (M6 X 1.0 X 47.5) hand tight in the center (1) of the valve body to hold it in place.
    5. Fig 5: Installing Valve Body Bolts
    GM13370Courtesy of GENERAL MOTORS CORP.
    IMPORTANT: When installing bolts throughout this procedure, be sure to use the correct bolt size and length in the correct location as specified.
  5. Do not install the transmission fluid indicator stop bracket and bolt at this time.

    Install but do not tighten the control valve body bolts which retain only the valve body directly.

    Each numbered bolt location corresponds to a specific bolt size and length, as indicated by the following:

    • M6 X 1.0 X 65.0 (1)
    • M6 X 1.0 X 54.4 (2)
    • M6 X 1.0 X 47.5 (3)
    • M6 X 1.0 X 35.0 (4)
    • M8 X 1.0 X 20.0 (5)
    • M6 X 1.0 X 12.0 (6)
    • M6 X 1.0 X 18.0 (7)
    6. Fig 6: Identifying Manual Detent Spring
    GM71461Courtesy of GENERAL MOTORS CORP.
  6. Install the manual detent spring.
  7. Install but do not tighten the manual detent spring retaining bolt.

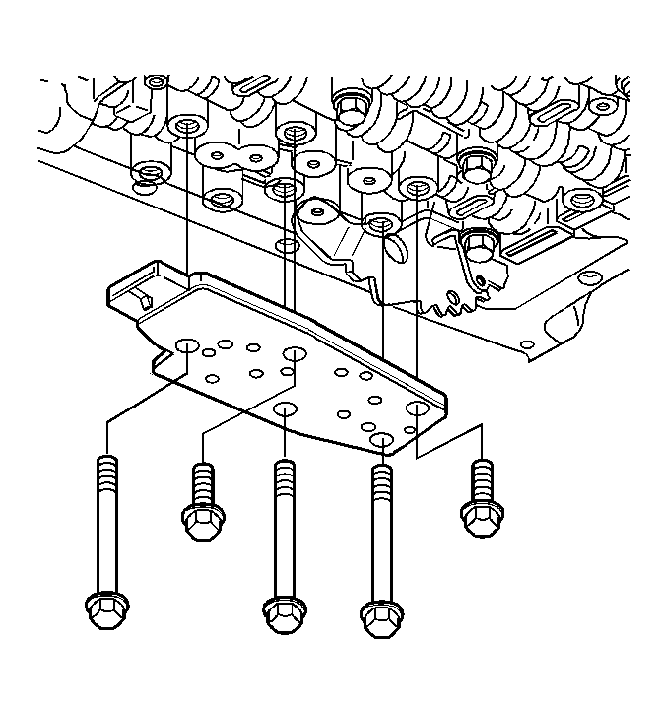

    8. Fig 7: View Of Transmission Fluid Pressure Switch & Bolts
    GM29454Courtesy of GENERAL MOTORS CORP.
  8. Install the transmission fluid pressure switch.
  9. Install but do not tighten the control valve body bolts which retain the transmission fluid pressure switch to the control valve body.
    10. NOTE: Refer to Fastener Notice in Cautions and Notices.
    NOTE: Torque valve body bolts in a spiral pattern starting from the center. If the bolts are torqued at random, valve bores may be distorted and inhibit valve operation.
    Fig 8: Valve Body Bolt Tightening Sequence
    GM7748Courtesy of GENERAL MOTORS CORP.
  10. Tighten the control valve body bolts in a spiral pattern starting from the center, as indicated by the arrows.

    Tighten:  Tighten the control valve body bolts (in sequence) to 11 N.m (97 lb in).

    11. Fig 9: Identifying Manual Detent Spring
    GM71461Courtesy of GENERAL MOTORS CORP.
  11. Ensure that the manual detent spring is aligned properly with the detent lever.

    Tighten:  Tighten the manual detent spring bolt to 11 N.m (97 lb in).

    12. Fig 10: View Of TCC Solenoid & Wiring Harness
    GM71463Courtesy of GENERAL MOTORS CORP.
  12. Install the TCC solenoid with a new O-ring seal to the valve body.

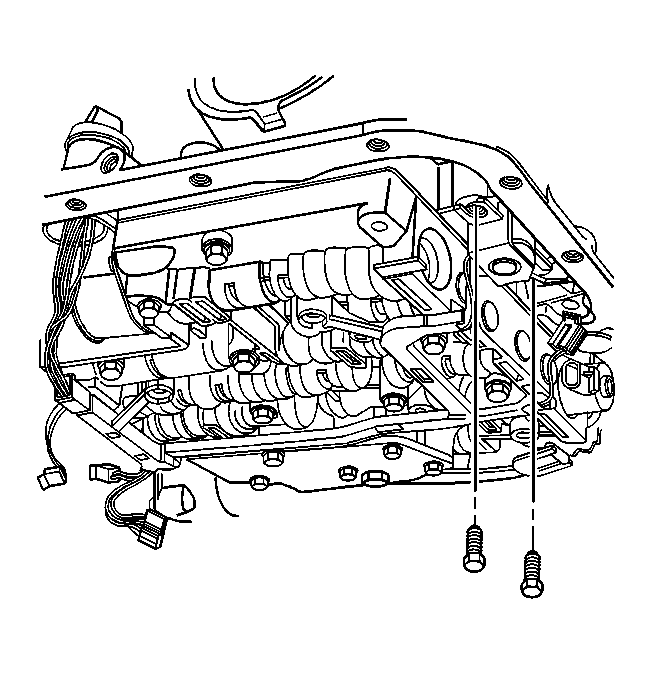

    13. Fig 11: View Of TCC Solenoid Retaining Bolts
    GM670430Courtesy of GENERAL MOTORS CORP.
  13. Install the TCC solenoid bolts.

    Tighten:  Tighten the TCC solenoid retaining bolts to 11 N.m (97 lb in).

    14. Fig 12: Installing The Internal Wiring Harness To The Valve Body
    GM687049Courtesy of GENERAL MOTORS CORP.
  14. Install the internal wiring harness to the valve body. The internal wiring harness has a tab (1) on the edge of the conduit.

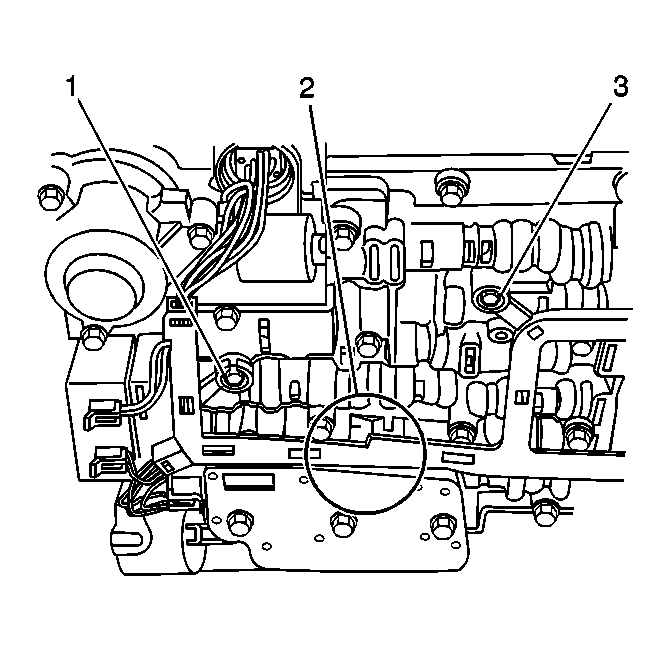

    15. Fig 13: Placing Tab Between The Valve Body And The Pressure Switch
    GM687206Courtesy of GENERAL MOTORS CORP.
  15. Place the tab between the valve body and the pressure switch in the location shown (2). Press the harness into position on the valve body bolt bosses (1, 3).
    16. Fig 14: View Of TCC PWM Solenoid & Retainer
    GM670428Courtesy of GENERAL MOTORS CORP.
  16. Install the TCC PWM solenoid (1) to the control valve body.
  17. Install the TCC PWM solenoid retainer (2).

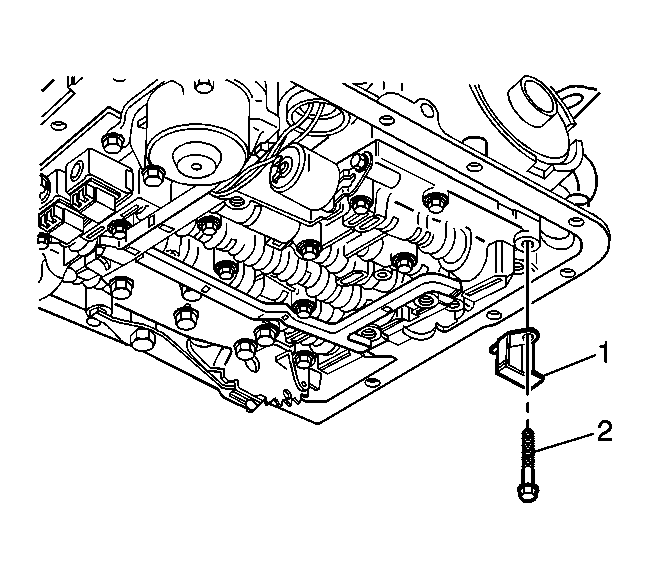

    18. Fig 15: Fluid Indicator Stop Bracket & Bolt
    GM670310Courtesy of GENERAL MOTORS CORP.
  18. Install the transmission fluid indicator stop bracket (1) and bolt (2).

    Tighten:  Tighten the transmission fluid indicator stop bracket bolt to 11 N.m (97 lb in).

    19. Fig 16: Identifying Valve Body Electrical Connections
    GM181573Courtesy of GENERAL MOTORS CORP.
  19. Connect the internal wiring harness electrical connectors to the following components:
    • The transmission fluid pressure manual valve position switch (1)
    • The 1-2 shift solenoid (2)
    • The 2-3 shift solenoid (3)
    • The pressure control solenoid (4)
    • The TCC PWM solenoid (5)
    • The 3-2 shift solenoid (6)
  20. Install the transmission oil pan and filter. Refer to Automatic Transmission Fluid/Filter Replacement .
  21. Lower the vehicle.
  22. Fill the transmission to the proper level with DEXRON® VI transmission fluid. Refer to Transmission Fluid Checking Procedure .
    23. IMPORTANT: It is recommended that transmission adaptive pressure (TAP) information be reset.
    Resetting the TAP values using a scan tool will erase all learned values in all cells. As a result, The ECM, PCM or TCM will need to relearn TAP values. Transmission performance may be affected as new TAP values are learned.
  23. Reset the TAP values. Refer to Transmission Adaptive Functions (TCM) .
