Body Control System Schematics

Fig 1: Ignition Input, Door Locks, and Exterior Lamps Output

Courtesy of GENERAL MOTORS CORP.

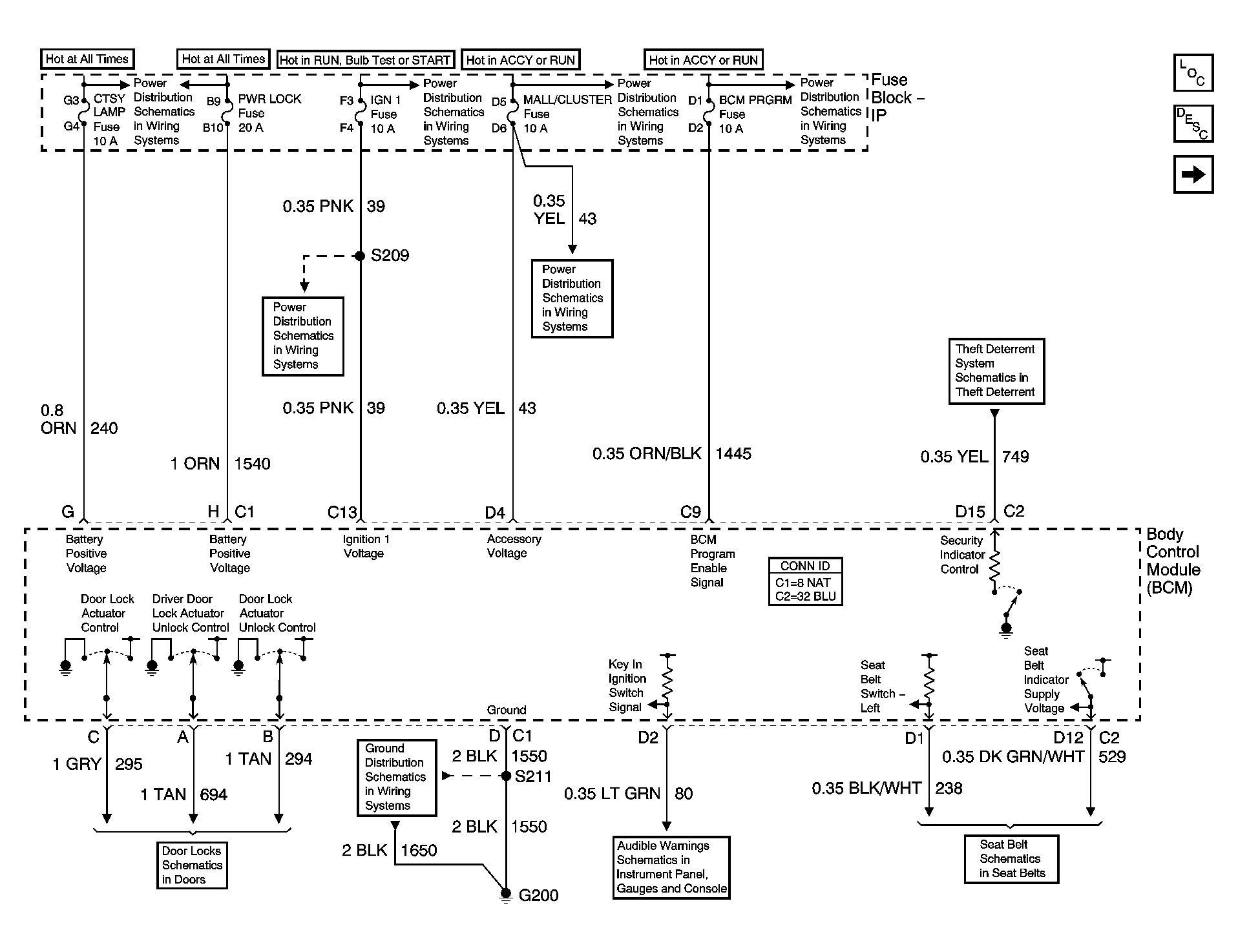

Fig 2: Interior Lights On Request and Horn Control

Courtesy of GENERAL MOTORS CORP.
