Horns Component Views

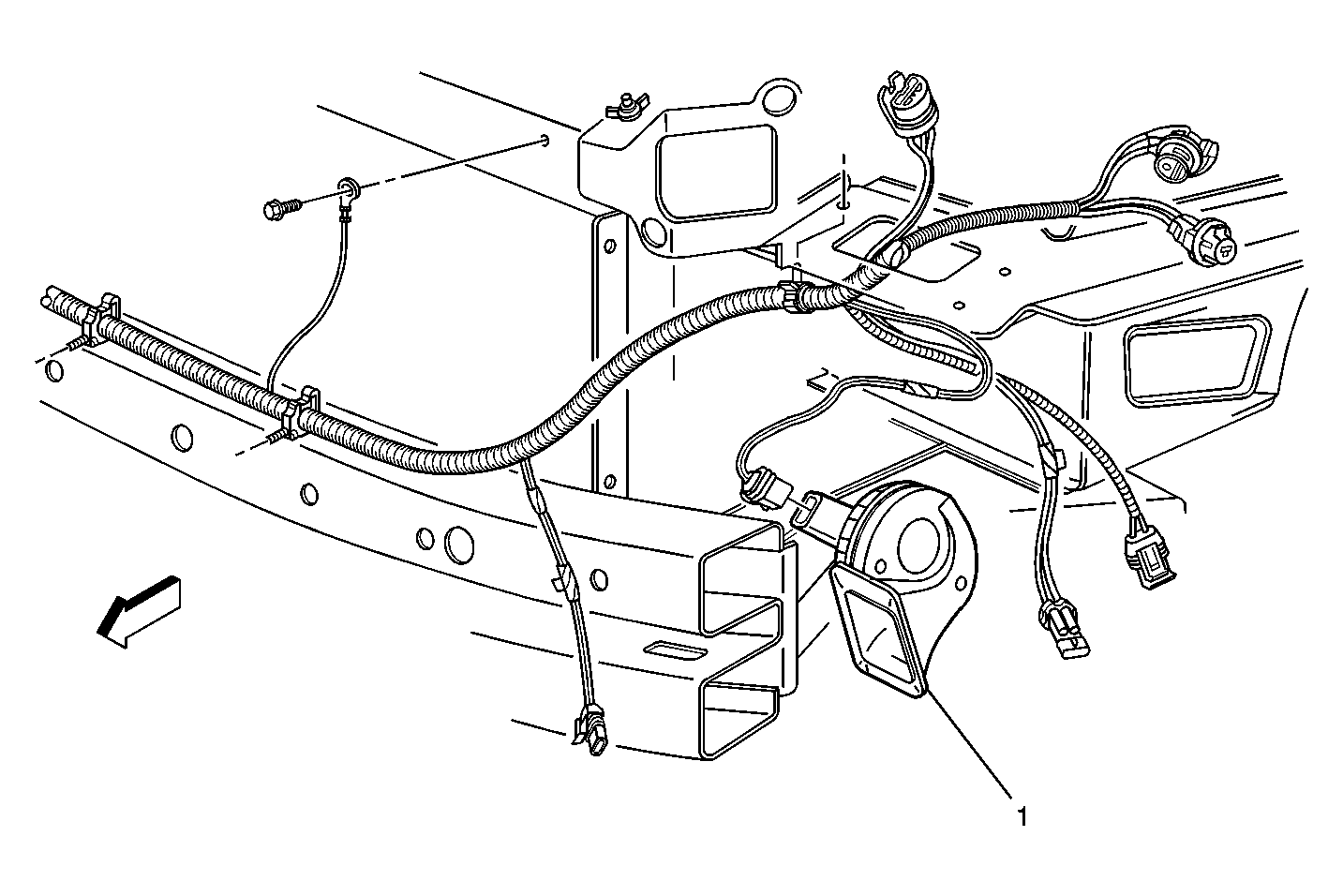

Fig 1: Lower Left Side of Engine Compartment
GM620968Courtesy of GENERAL MOTORS CORP.
Callout Component Name
1 Horn-Left

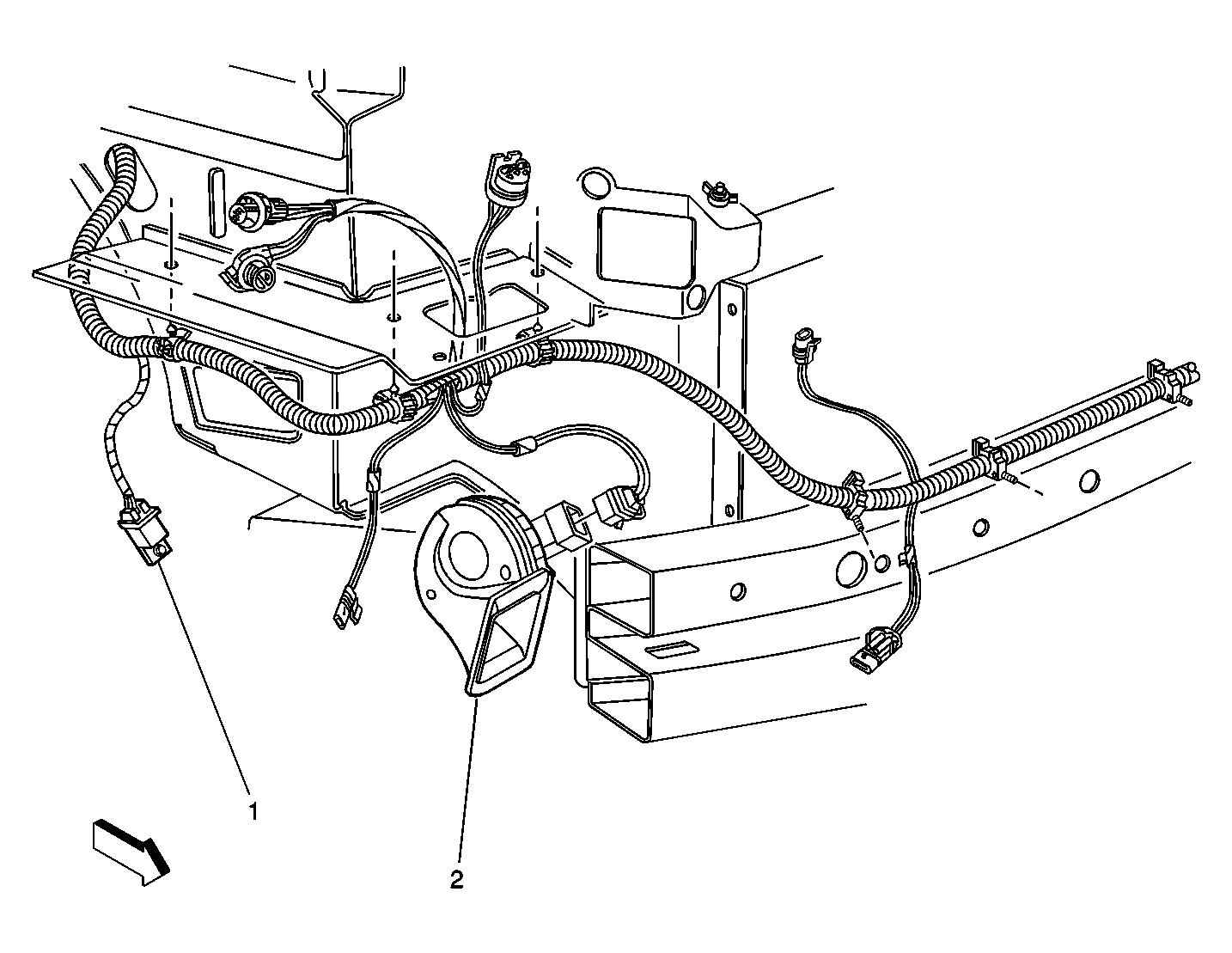

Fig 2: Lower Right Side of Engine Compartment
GM620971Courtesy of GENERAL MOTORS CORP.
Callout Component Name
1 Harness Ground
2 Horn-Right
