Installation Procedure

    Fig 1: View Of Memory Seat Control Module
    GM740757Courtesy of GENERAL MOTORS CORP.
  1. Slide the module into the mounting bracket and push until the module is fully seated.

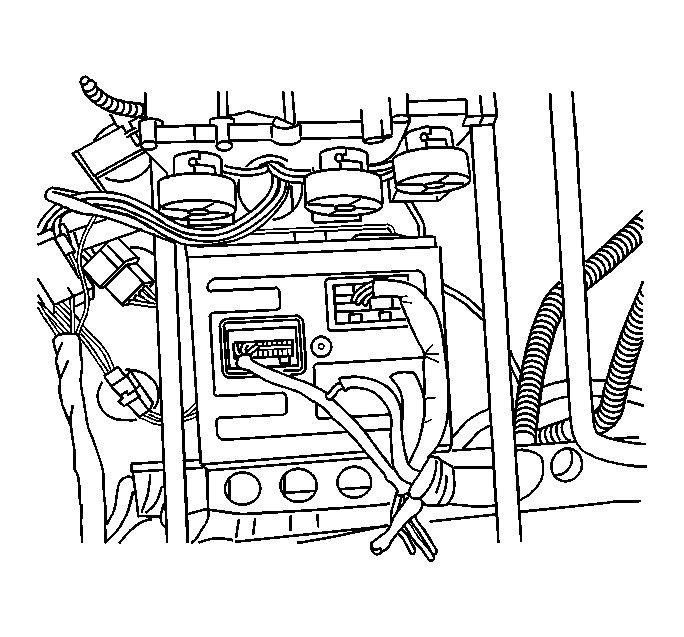

    2. Fig 2: Locating Electrical Connectors
    GM740755Courtesy of GENERAL MOTORS CORP.
  2. Connect the electrical connectors.
  3. Install the drivers seat.
  4. Enable the SIR system. Refer to SIR Disabling and Enabling Zone 9 in SIR.
  5. Calibrate the seat. Refer to Memory Seat Calibration Procedure .
