Installation Procedure

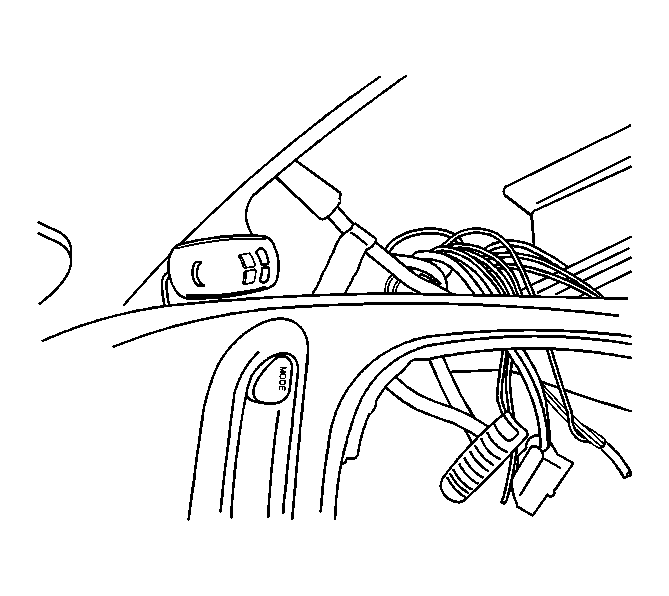

    Fig 1: View Of Microphone In Headliner
    GM734321Courtesy of GENERAL MOTORS CORP.
  1. Install the microphone to the headliner.
  2. Connect the microphone electrical connector.
    3. Fig 2: View Of Overhead Console
    GM734320Courtesy of GENERAL MOTORS CORP.
  3. Install the overhead console. Refer to Console Replacement - Overhead (Single) or Console Replacement - Overhead (Dual) or Console Replacement - Overhead (CF5) in Interior Trim.
