Door Locks
›
Keyless Entry System
›
Schematic And Routing Diagrams
›
Keyless Entry Schematics
Keyless Entry Schematics

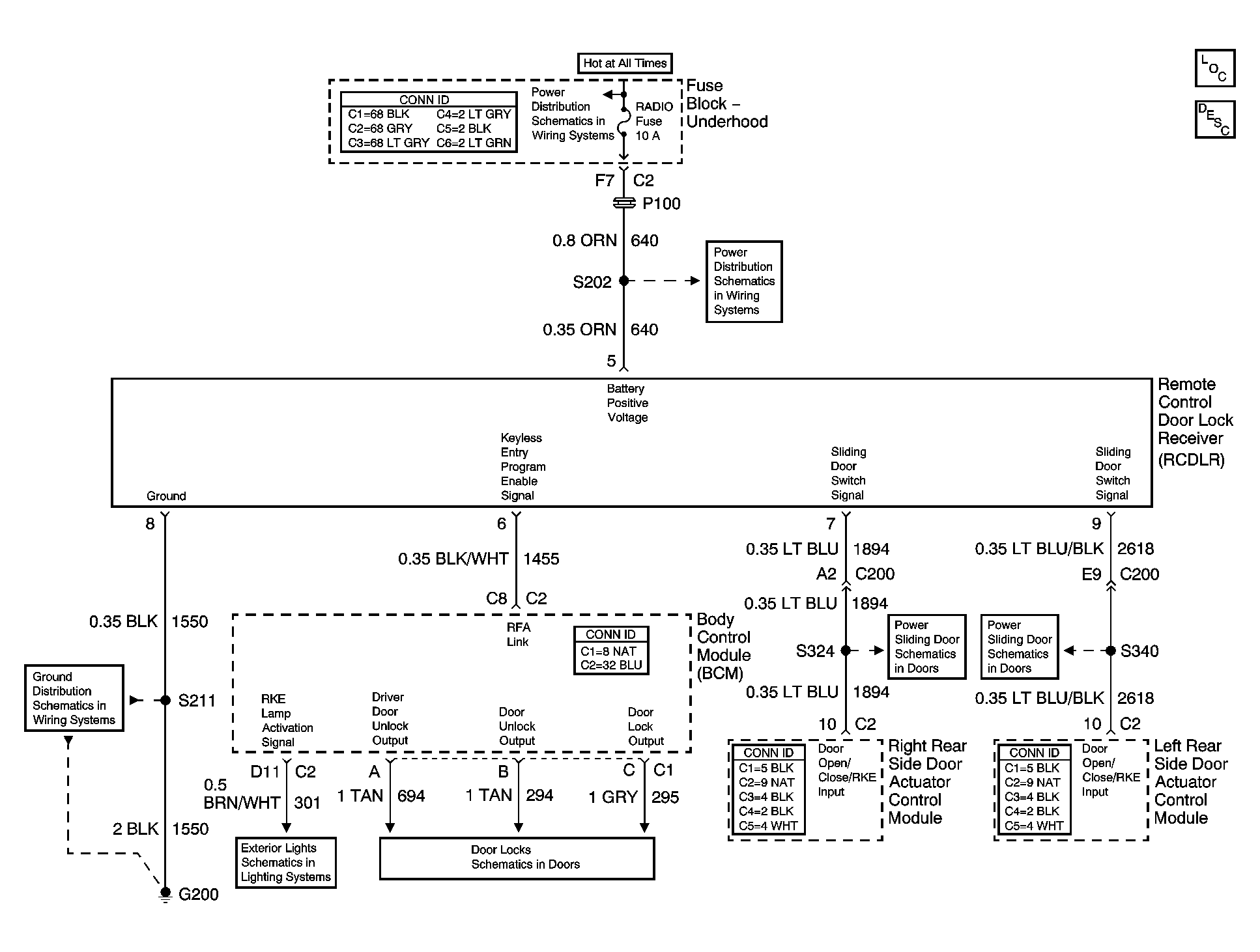

Fig 1: Remote Control Door Lock Receiver Schematic
Courtesy of GENERAL MOTORS CORP.
