Removal Procedure

  1. Remove the door trim panel. Refer to Trim Panel Replacement - Side Front Door .
  2. Remove the water deflector. Refer to Water Deflector Replacement - Front Door .
  3. Disconnect the wiring harness connector from the regulator motor connector.

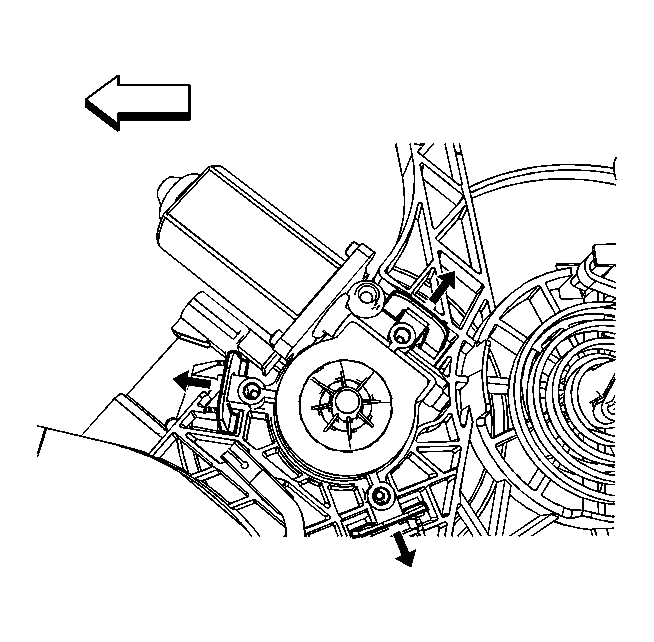

    4. Fig 1: View Of Motor
    GM1532028Courtesy of GENERAL MOTORS CORP.
  4. Gently flex the 3 motor retaining tabs to release the motor from the door module.
