Door Lock/Indicator Schematics

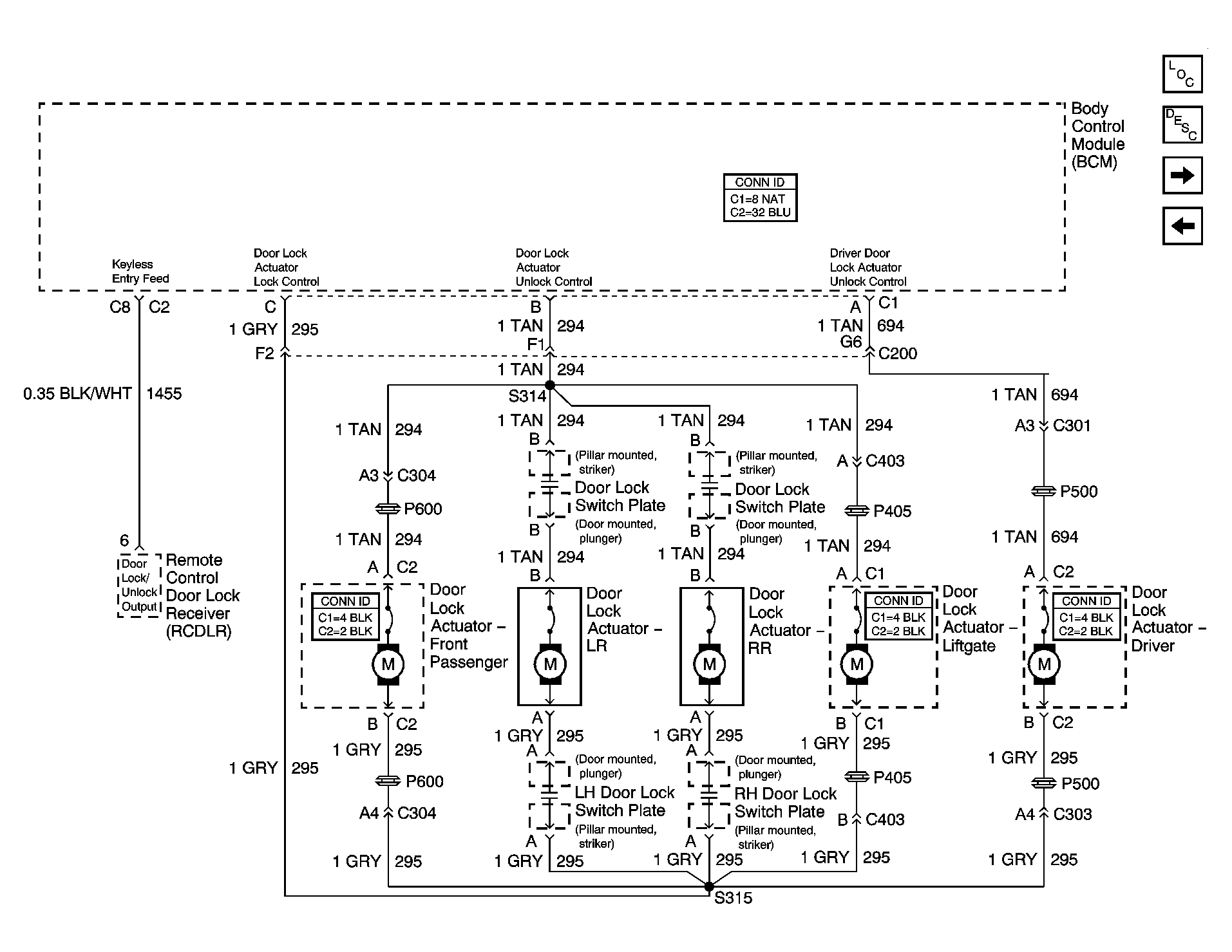

Fig 1: Door Lock Switches

Courtesy of GENERAL MOTORS CORP.

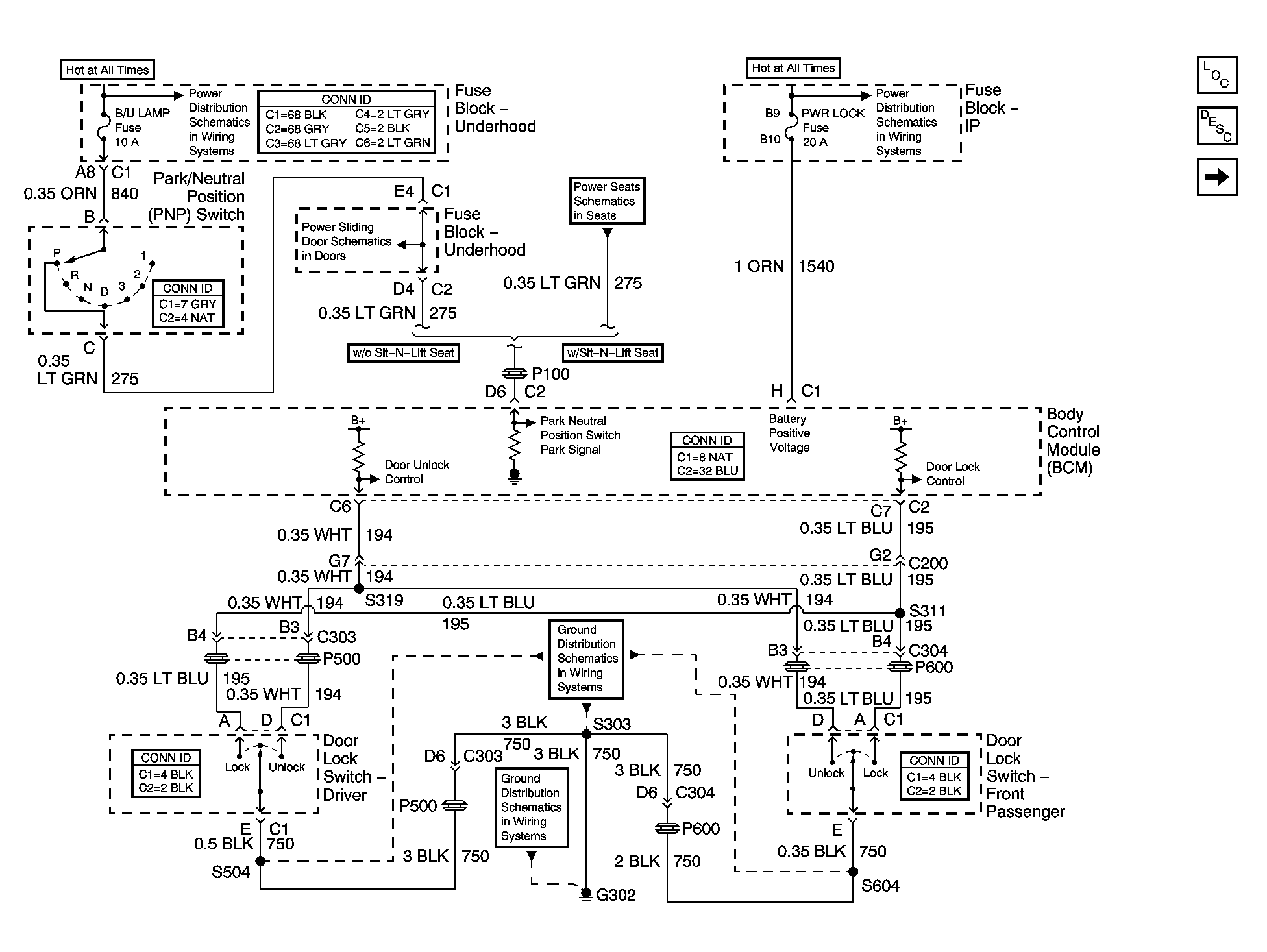

Fig 2: Identifying Key Cylinder Switches

Courtesy of GENERAL MOTORS CORP.

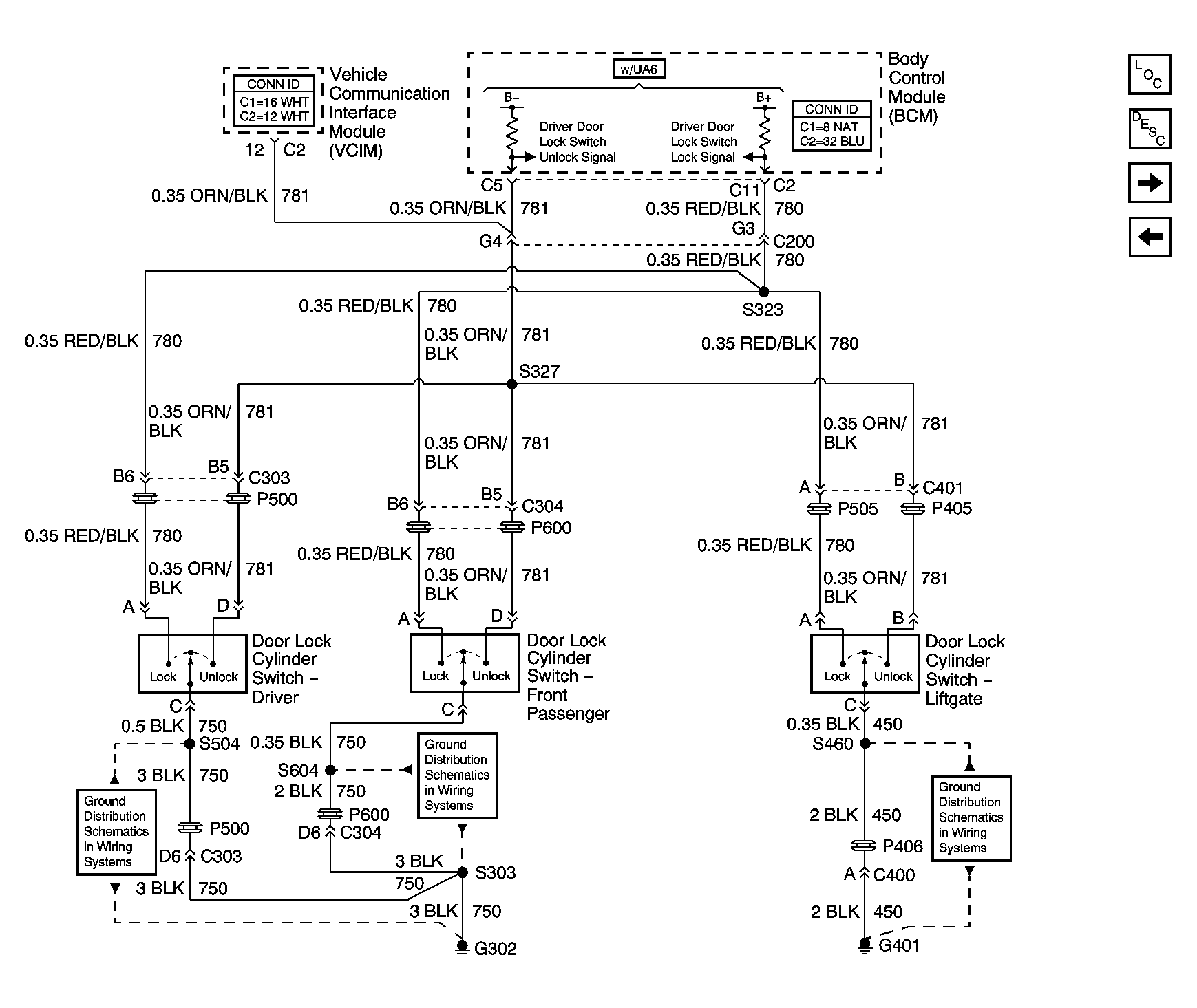

Fig 3: Identifying Door Lock Actuators

Courtesy of GENERAL MOTORS CORP.

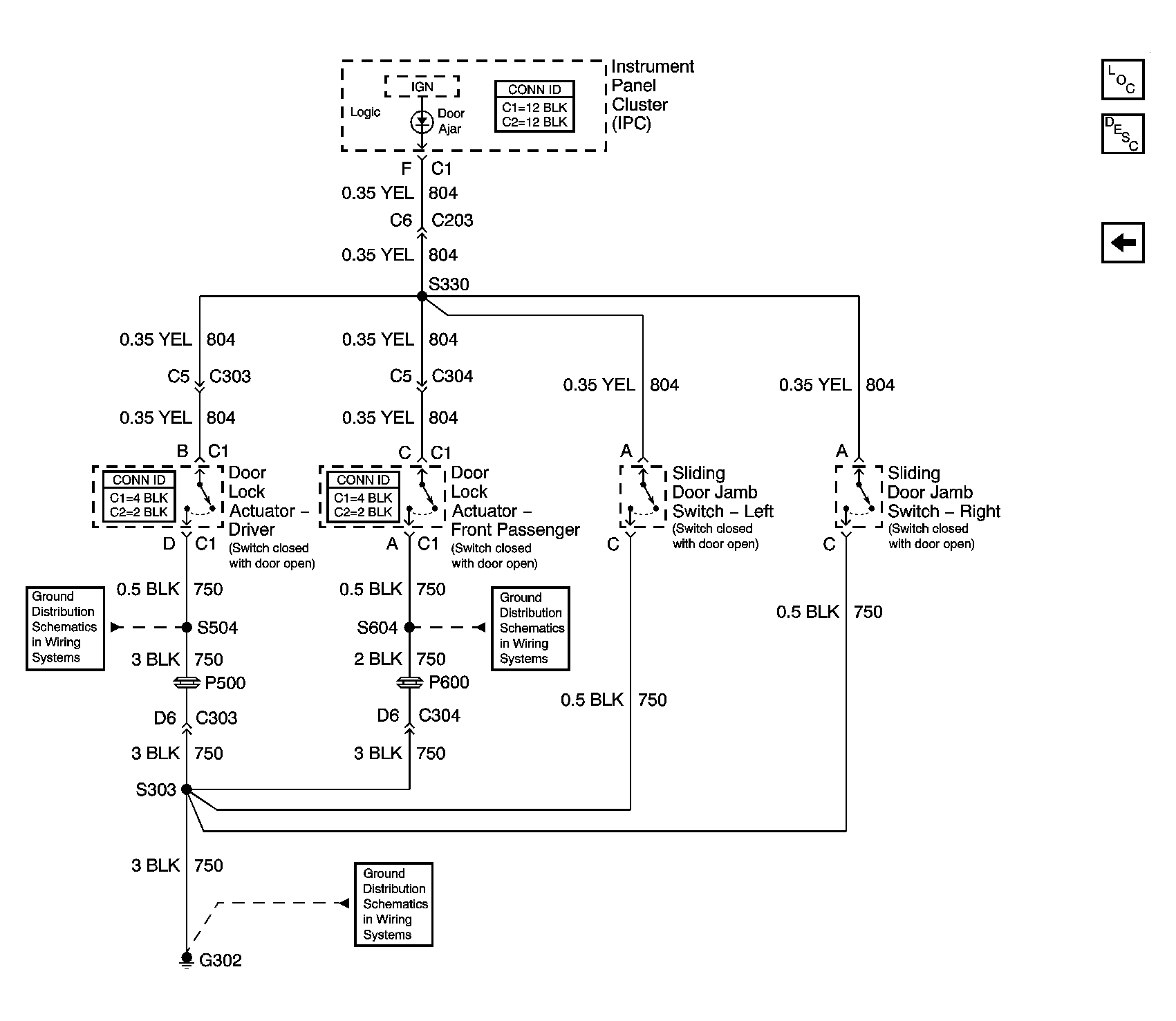

Fig 4: Identifying IPC DOOR AJAR Telltale

Courtesy of GENERAL MOTORS CORP.
