Outside Mirror Schematics

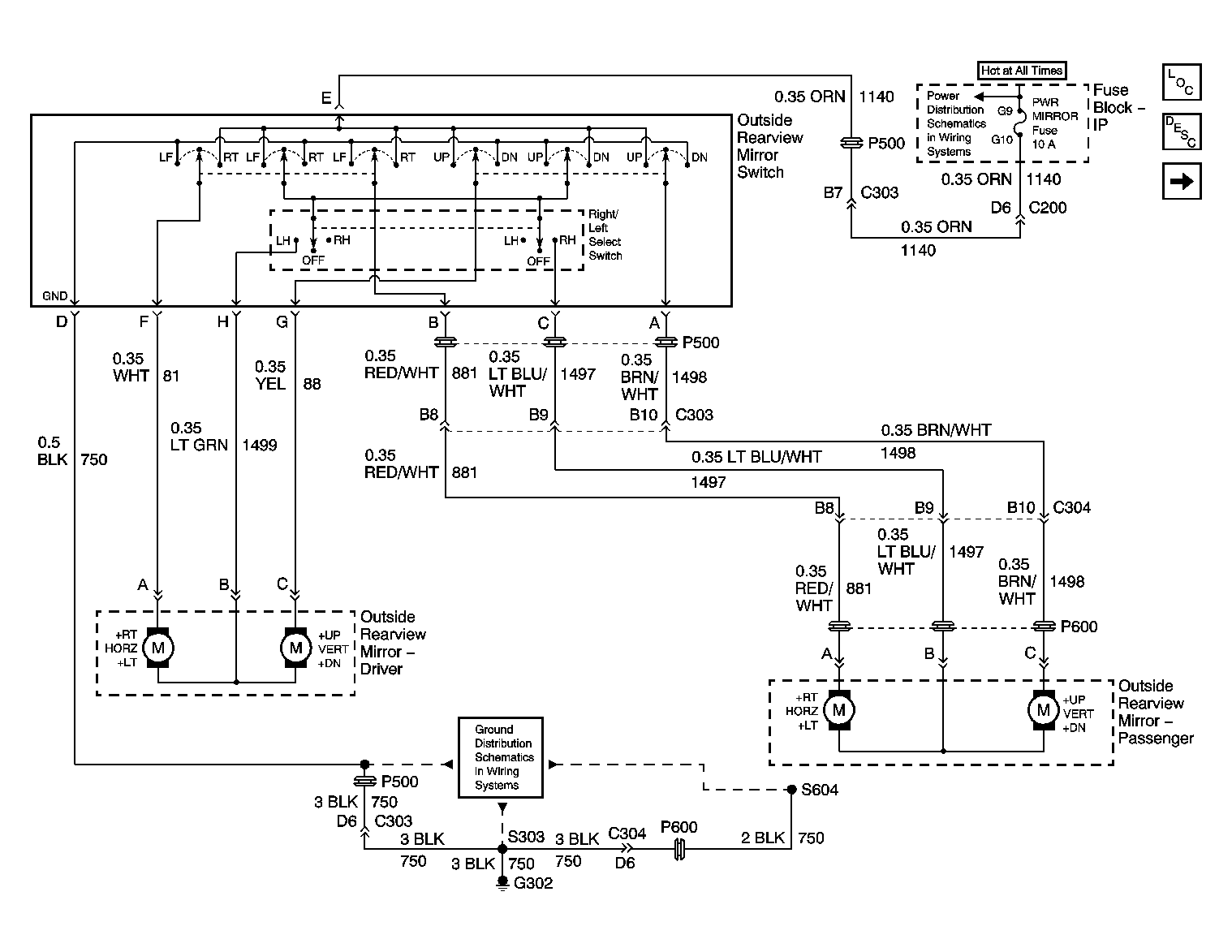

Fig 1: Identifying Power Mirrors
GM685498Courtesy of GENERAL MOTORS CORP.

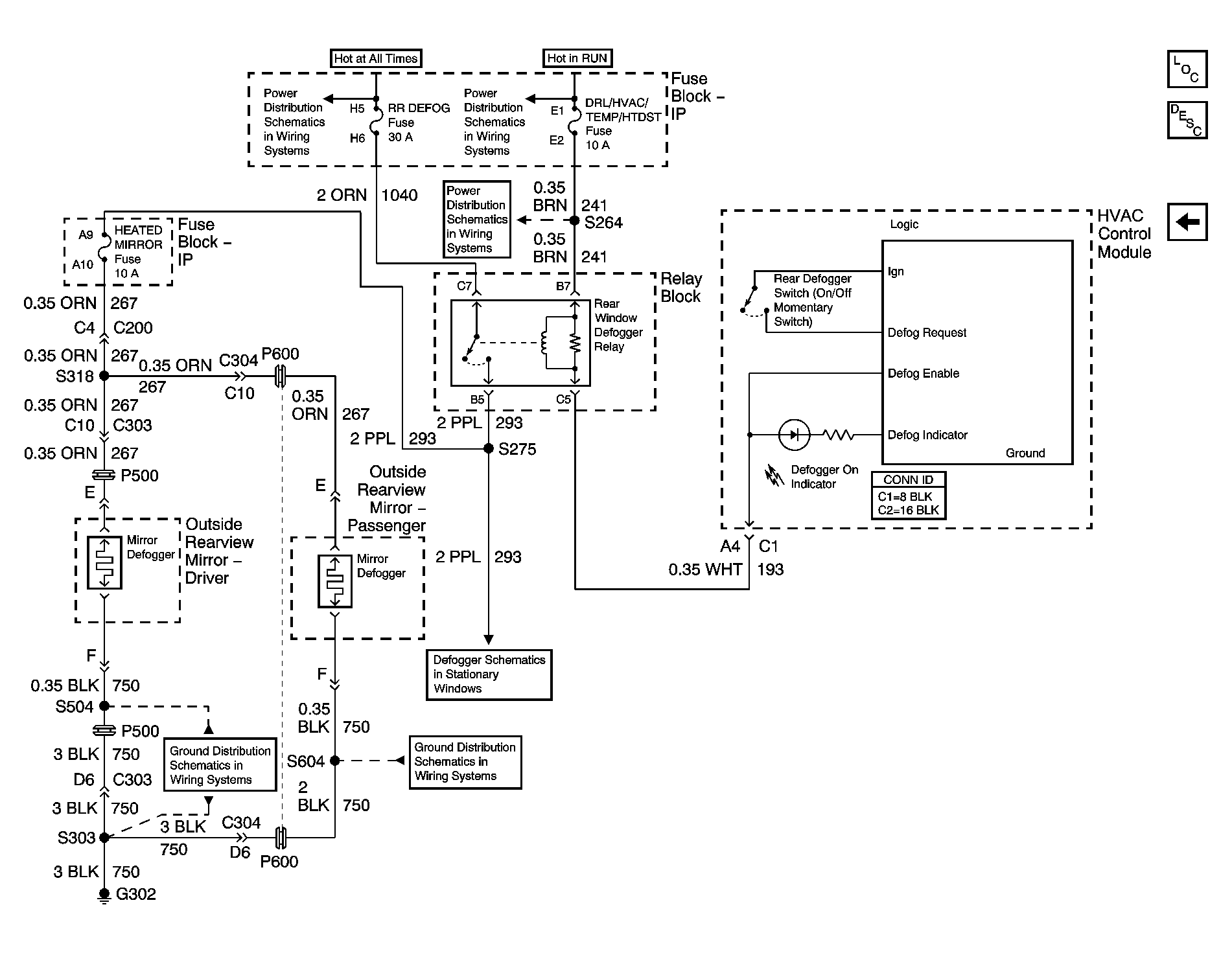

Fig 2: Identifying Heated Mirrors
GM685521Courtesy of GENERAL MOTORS CORP.
