ABS Schematics

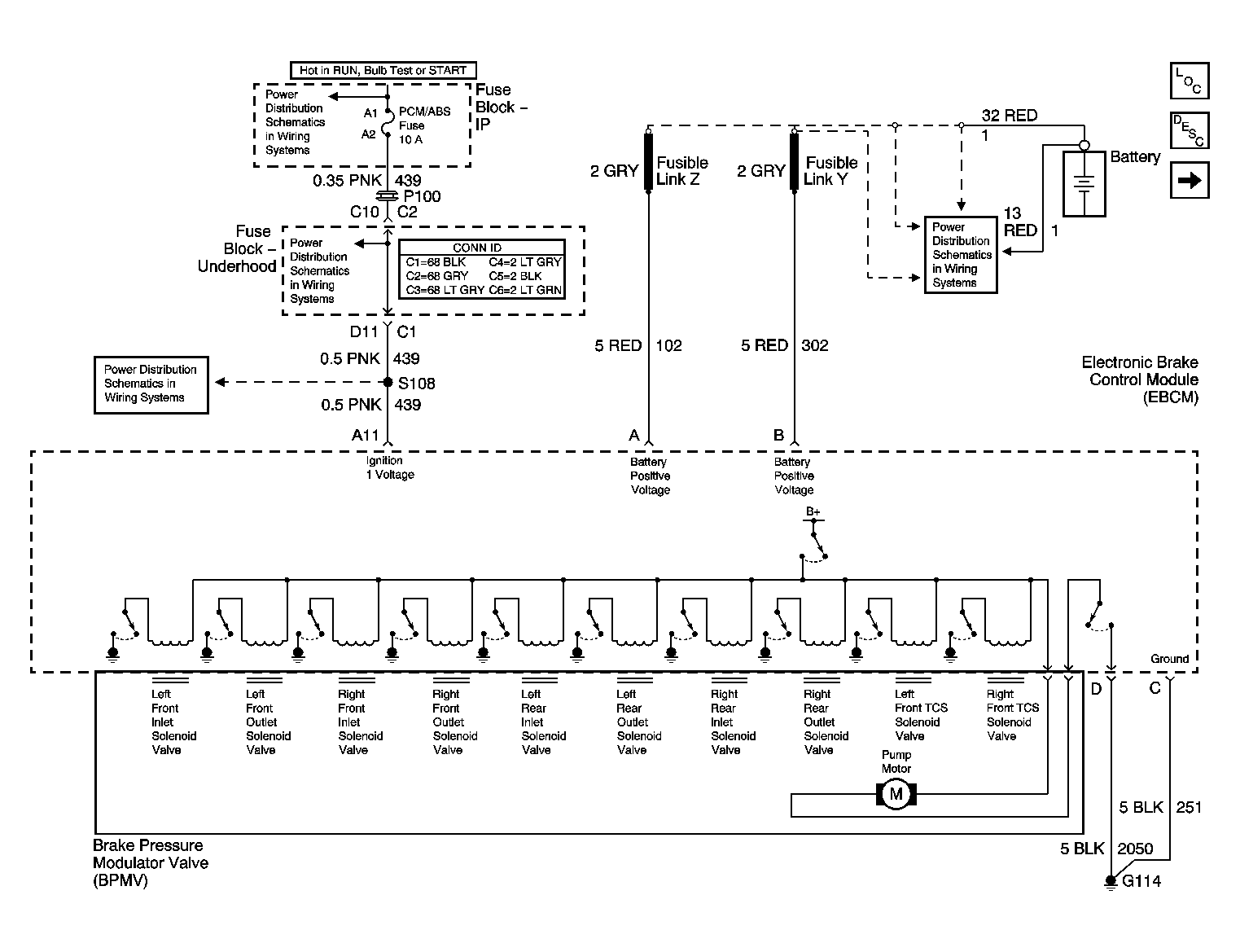

Fig 1: EBCM, Power and Ground
GM675475Courtesy of GENERAL MOTORS CORP.
Fig 2: Data Link, MIL, PCM, and Stop Lamp Switch
GM675487Courtesy of GENERAL MOTORS CORP.

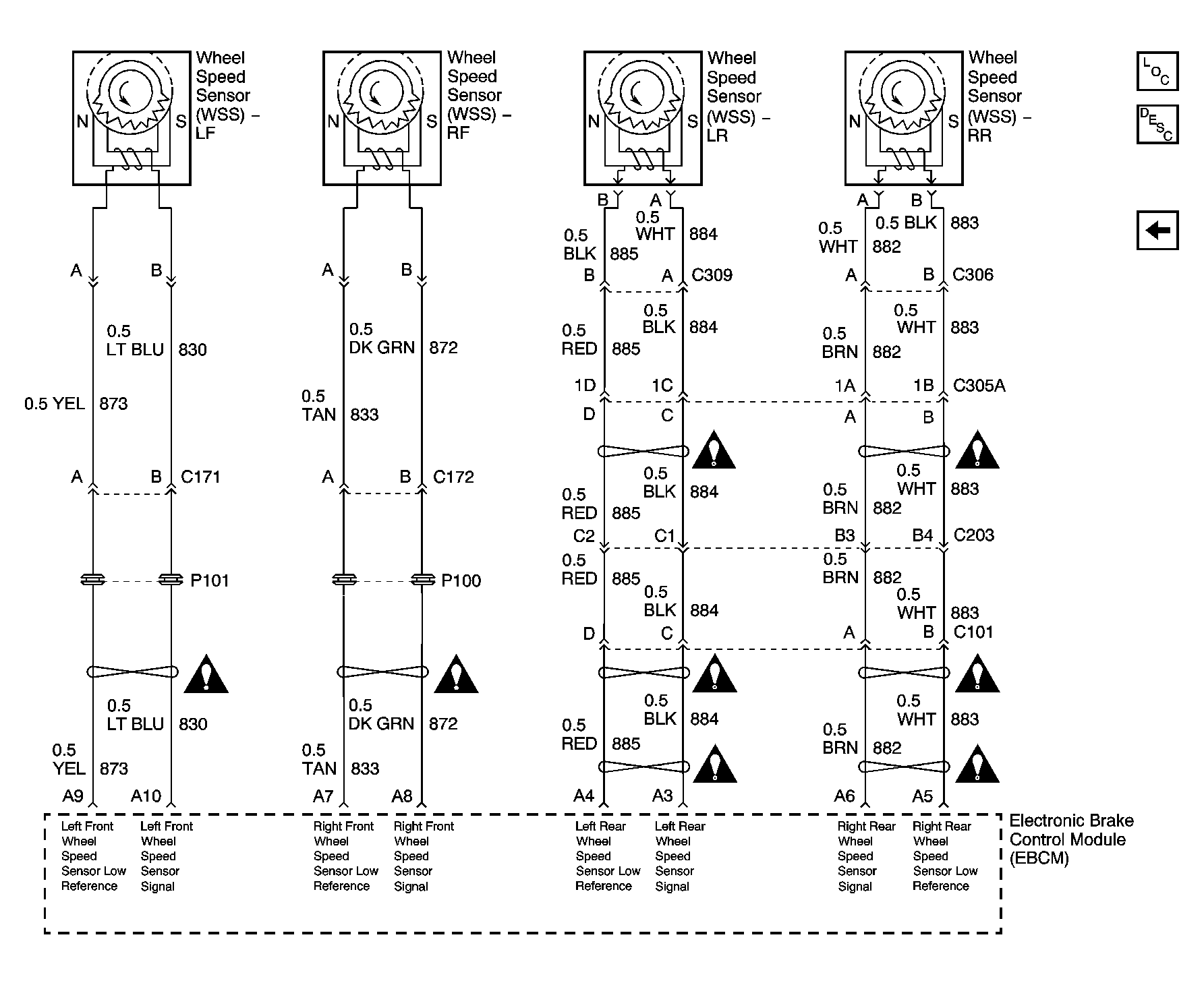

Fig 3: Wheel Speed Sensors
GM675494Courtesy of GENERAL MOTORS CORP.
