Fuel Hose/Pipes Routing Diagram

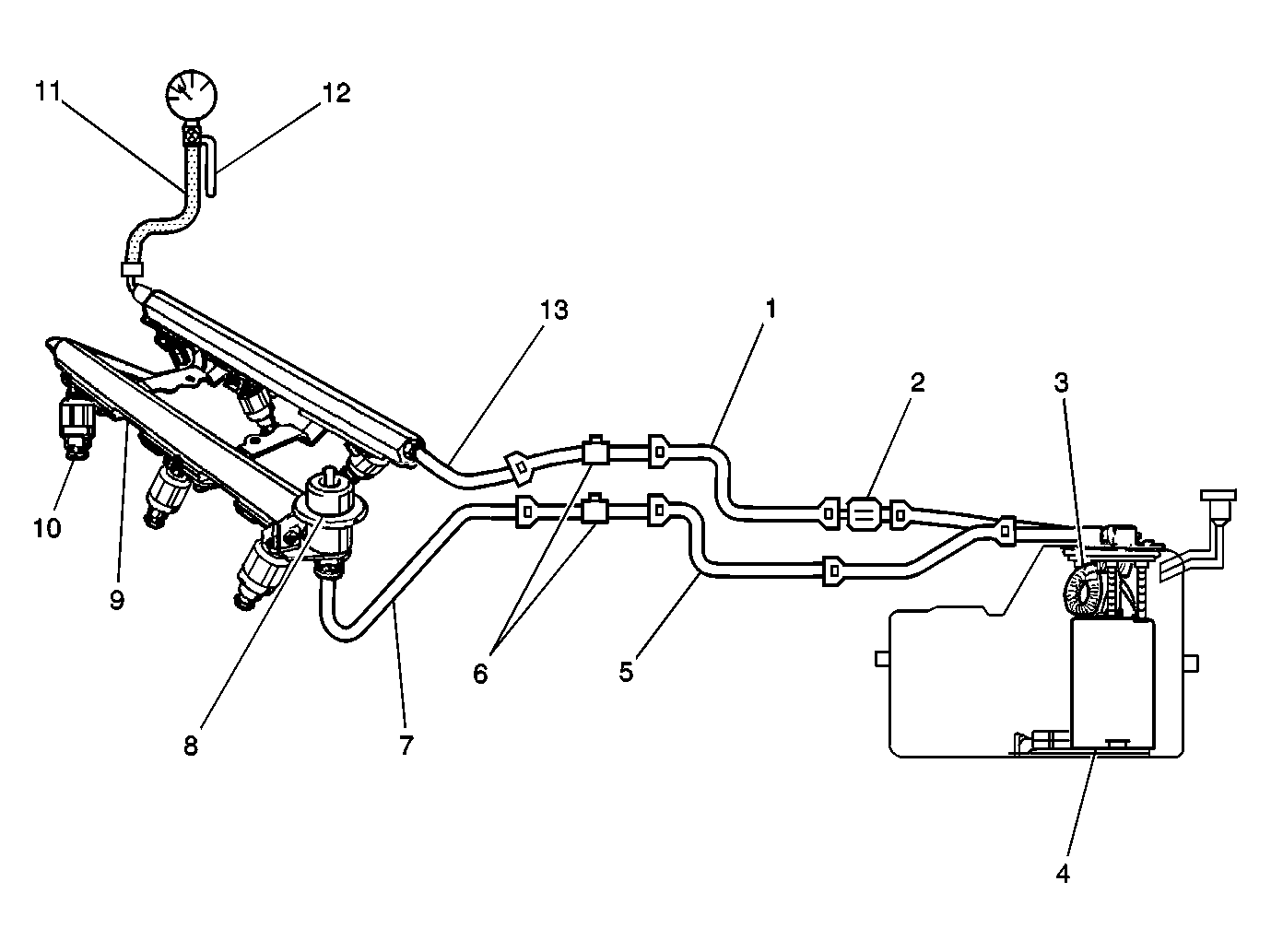

Fig 1: Fuel Hose/Pipes Routing Diagram

Courtesy of GENERAL MOTORS CORP.

Callout	Component Name
1	Fuel Return Pipe Rear
2	Fuel Filter
3	Fuel Pump Module
4	Fuel Strainer
5	Fuel Feed Pipe Rear
6	Fuel Line Shut-off Adapters
7	Fuel Feed Pipe Front
8	Fuel Pressure Regulator
9	Fuel Rail
10	Fuel Injector
11	Fuel Pressure Gage
12	Bleed Hose
13	Fuel Return Pipe Front
