Installation Procedure

WARNING: This page is about a different car, the 2003 Pontiac Montana, 2003 Oldsmobile Silhouette, and 2003 Chevrolet Venture. However, it is still accessible from the selected car via links, so may be relevant.
  1. Connect the security indicator lamp electrical connector to the security indicator lamp.
  2. Install the security indicator lamp to the instrument panel upper trim:
    1. Insert the lamp.
    2. Rotate the lamp clockwise to approximately 1/4 turn.
  3. Install the instrument panel upper trim. Refer to TRIM PAD REPLACEMENT - INSTRUMENT PANEL (I/P) UPPER  in Instrument Panel, Gages and Console.

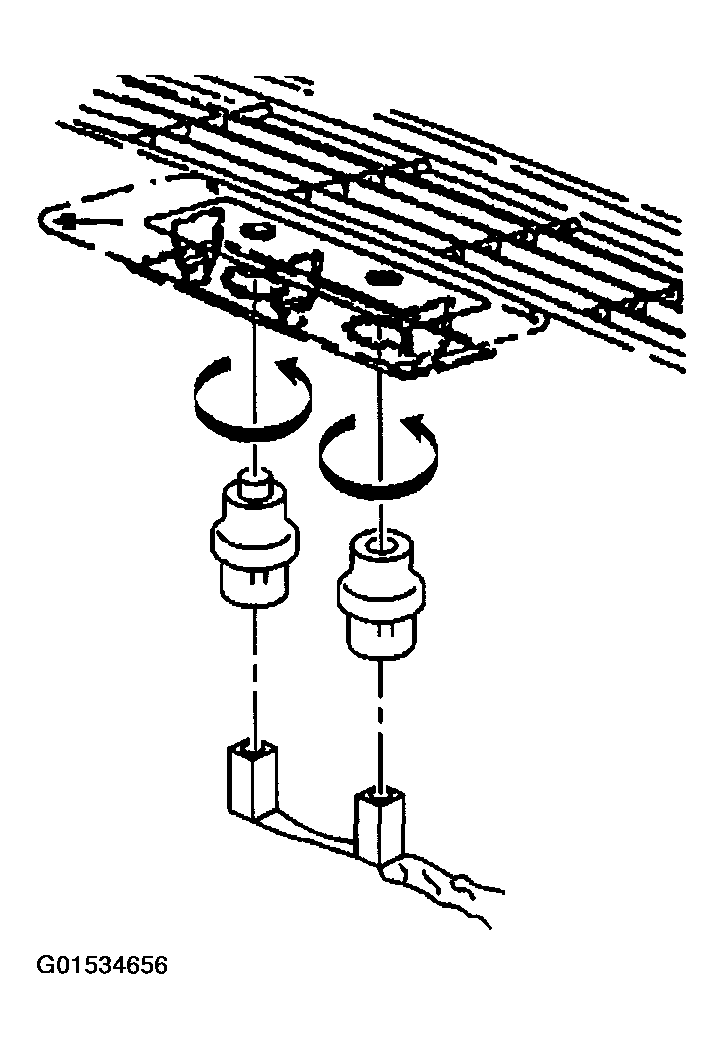

    Fig 1: Installing Security Indicator Lamp To Instrument Panel Upper Trim
    G01534656Courtesy of GENERAL MOTORS CORP.
