Automatic Transmission Controls Schematics

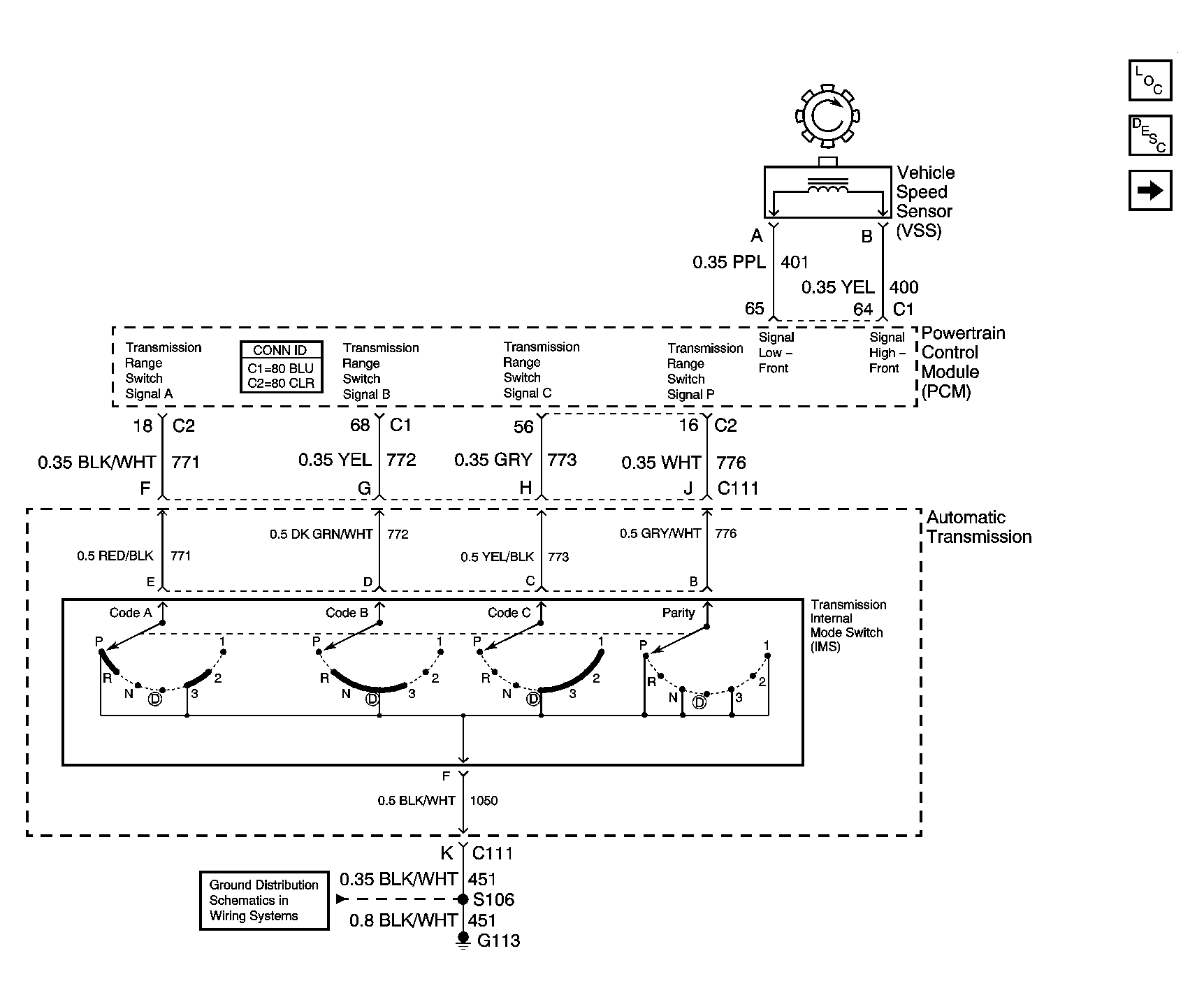

Fig 1: Internal Mode Switch (IMS) and VSS Schematic

Courtesy of GENERAL MOTORS CORP.

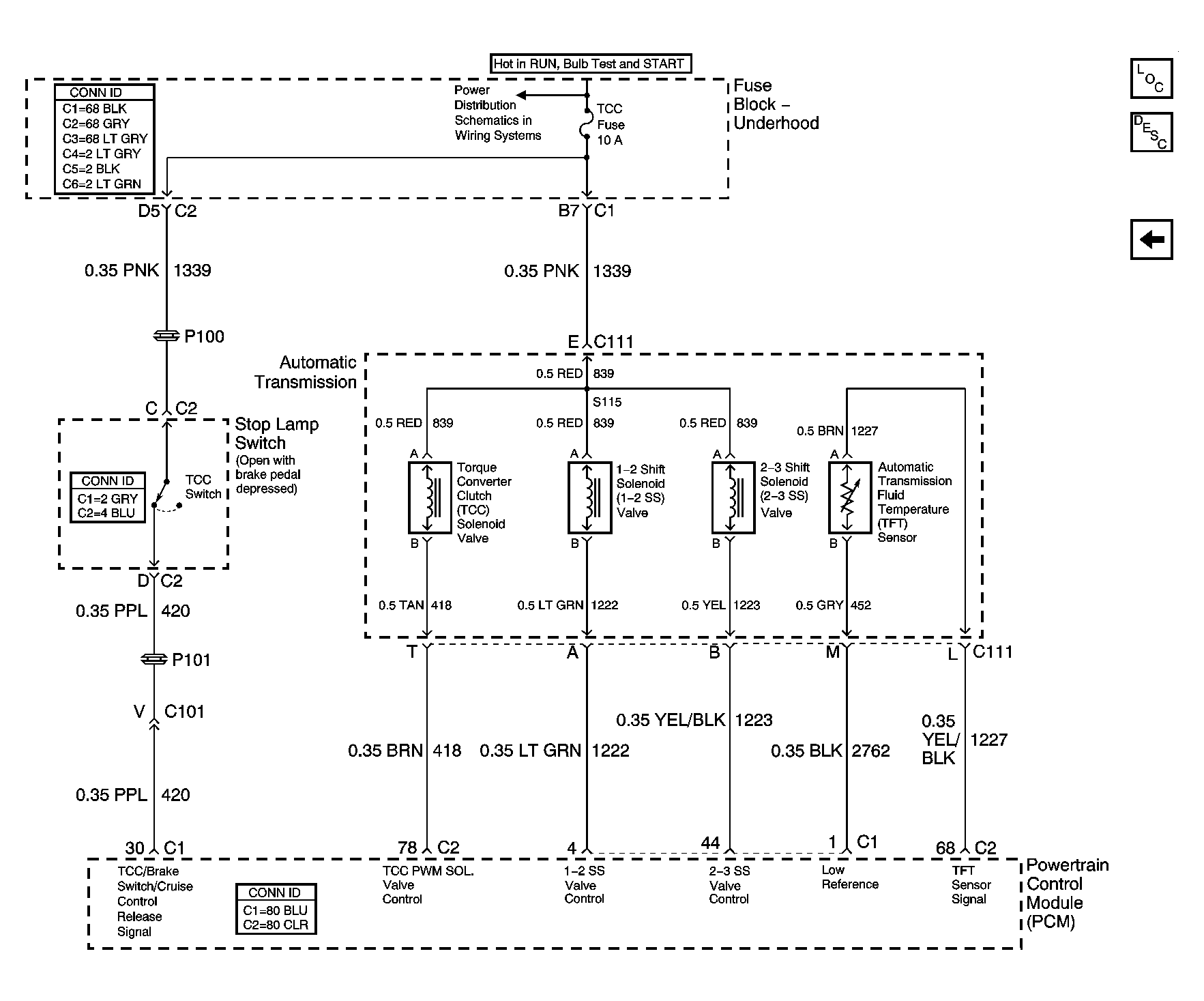

Fig 2: Automatic Transmission Schematic

Courtesy of GENERAL MOTORS CORP.

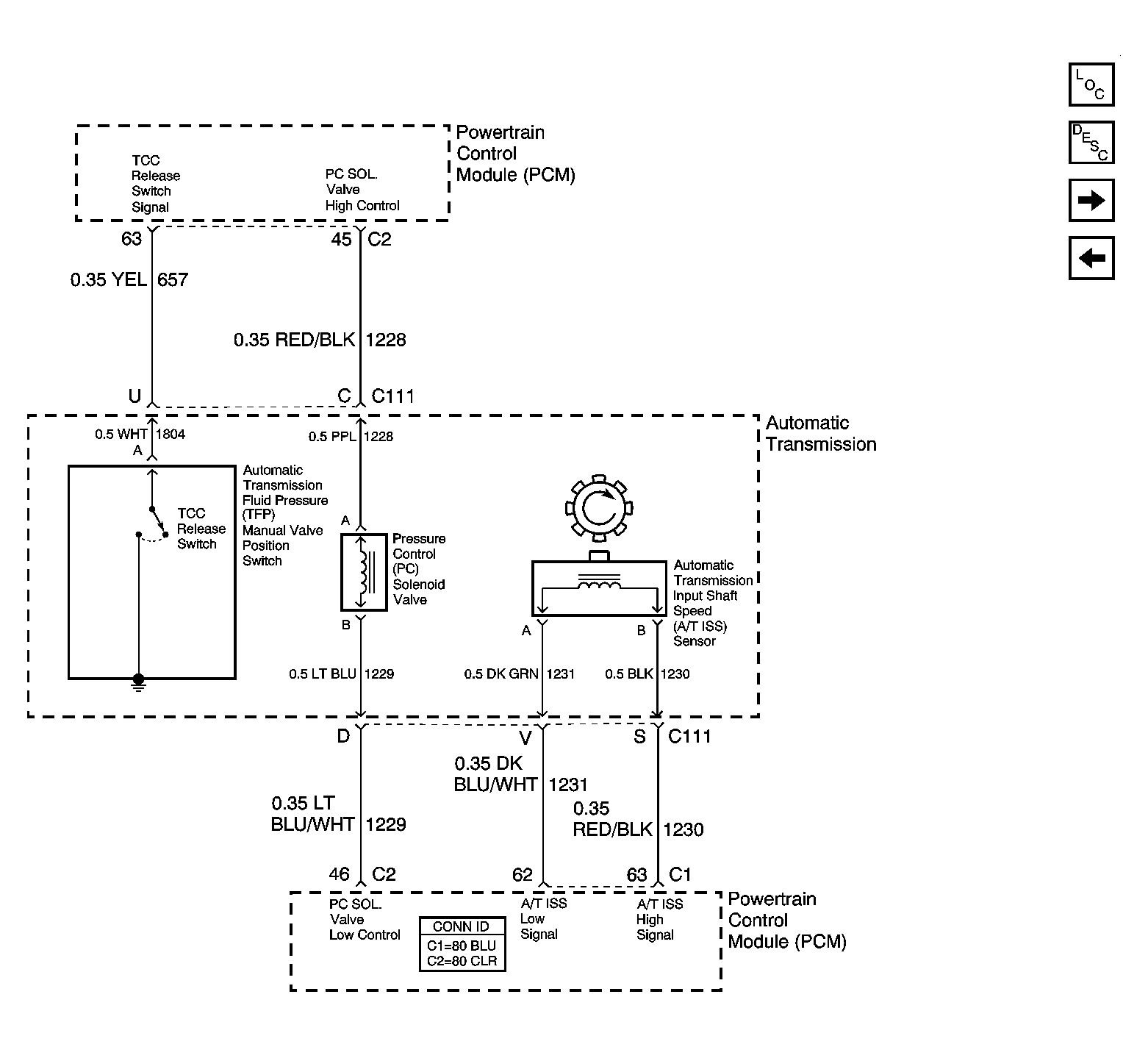

Fig 3: Automatic Transmission TCC Switch Schematic

Courtesy of GENERAL MOTORS CORP.
