Child Restraint Tether Anchor Replacement
Child Restraint Tether Anchor Replacement

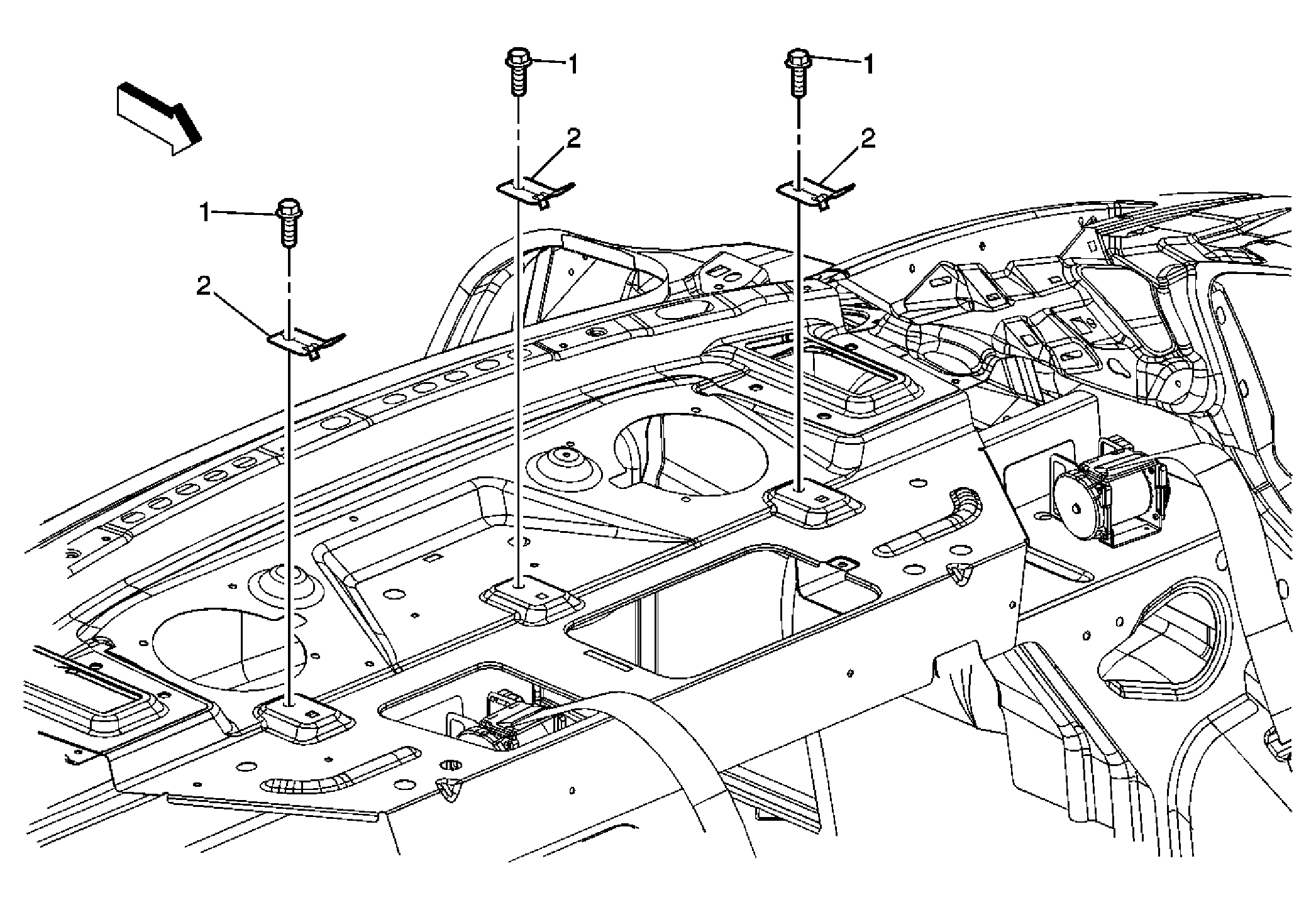

| Callout | Component Name |
|---|---|
|
NOTE:
Refer to Fastener Notice
. Fastener Tightening Specifications:
Refer to Fastener Tightening Specifications .Preliminary Procedure: Remove the rear window shelf trim panel. Refer to Trim Panel Replacement - Rear Window Shelf
. |
|
| 1 | Bolt, Child Tether Anchor (Qty: 3) Tighten: 25 N.m (18 lb ft) |
| 2 | Anchor Assembly, Child Tether |
