Power Steering System Schematics
Power Steering System Schematics

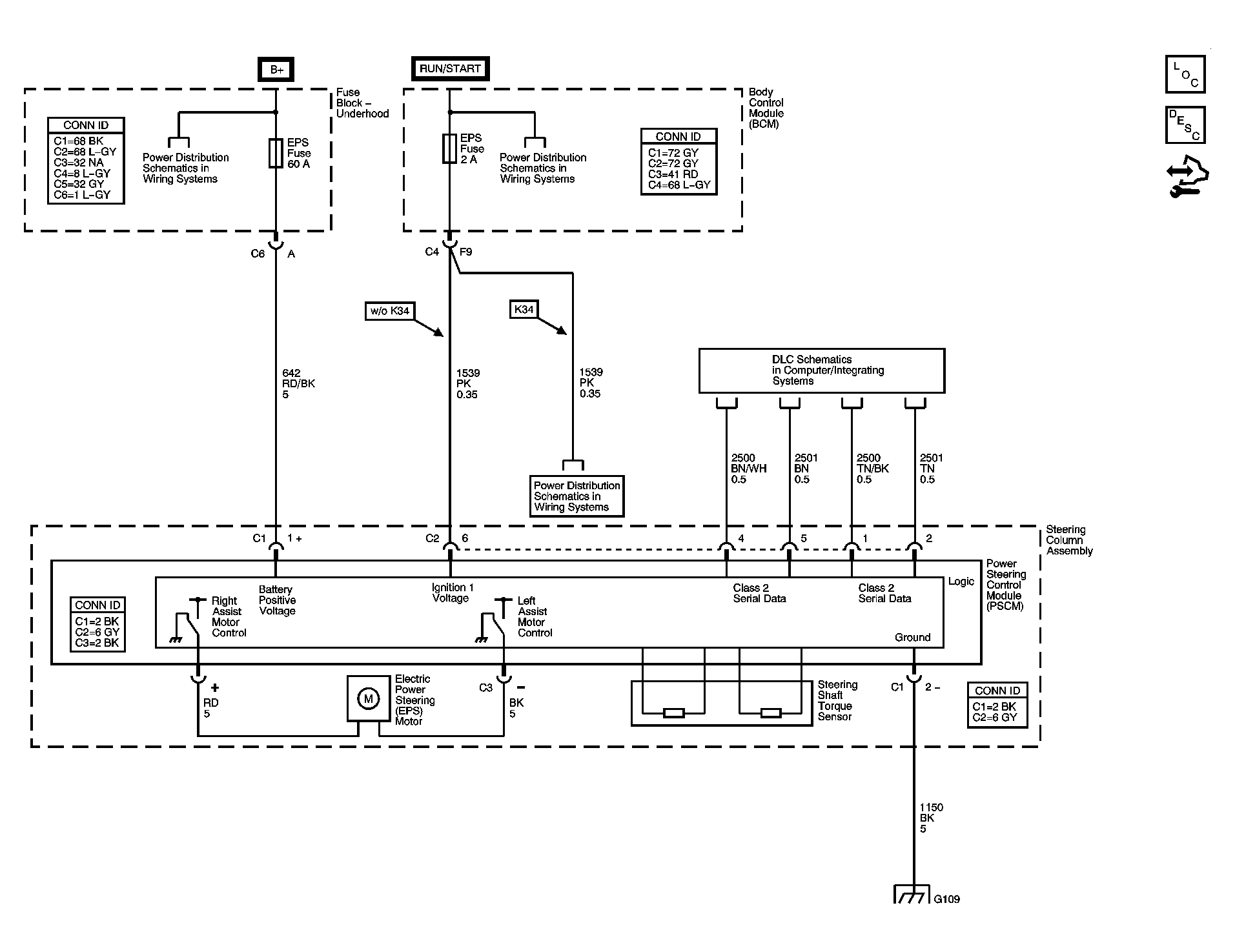

Fig 1: Power Steering Schematics - Wiring Diagram
Courtesy of GENERAL MOTORS CORP.
Courtesy of GENERAL MOTORS CORP.
