Cobalt SS, 4D Sedan, Standard
›
Repair and Diagnosis
›
Engine Performance
›
System
›
Engine Controls - 2.4L - Introduction (2 Of 2)
›
Schematic and Routing Diagrams
›
Engine Controls Schematics
›
Fuel Controls - EVAP Controls Schematics
Fuel Controls - EVAP Controls Schematics

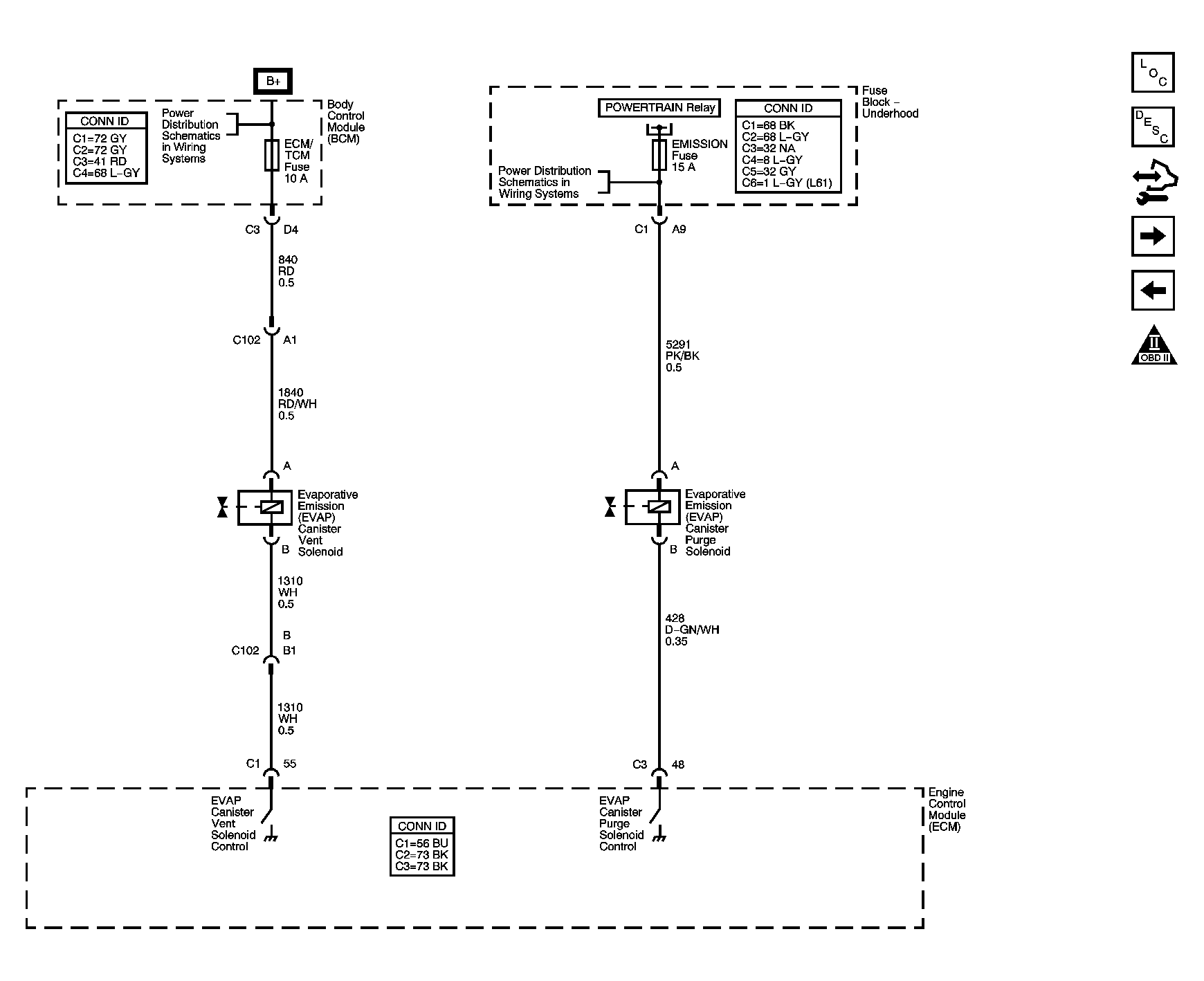

Fig 1: Fuel Controls - EVAP Controls Schematics
Courtesy of GENERAL MOTORS CORP.
