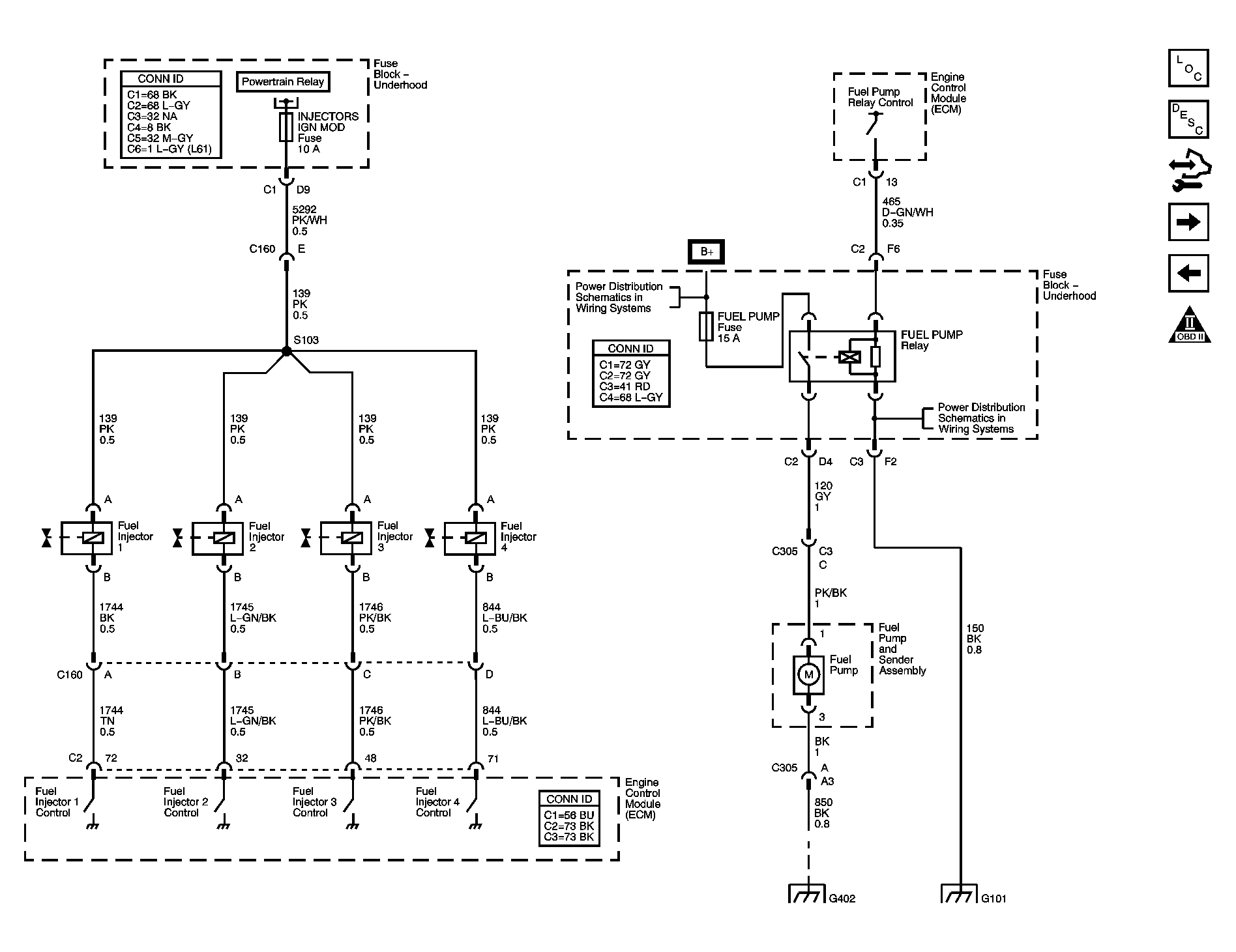

Home › Chevrolet › 2006 › Cobalt SS, 4D Sedan, Standard › Repair and Diagnosis › Engine Performance › System › Engine Controls - 2.4L - Introduction (2 Of 2) › Schematic and Routing Diagrams › Engine Controls Schematics › Fuel Controls Schematics
