Power Window Schematics

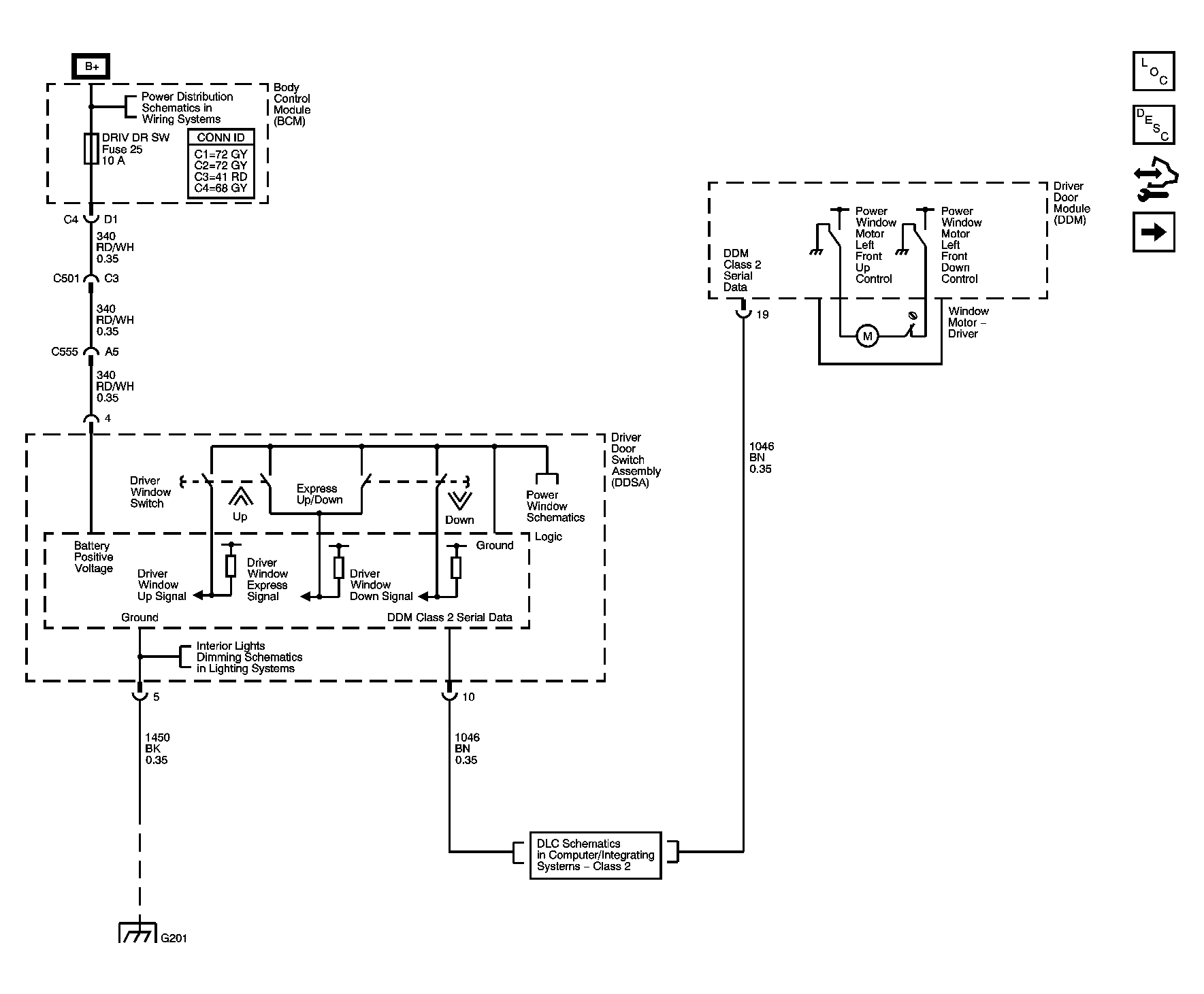

Fig 1: Driver - Wiring Diagram
GM1408966Courtesy of GENERAL MOTORS CORP.

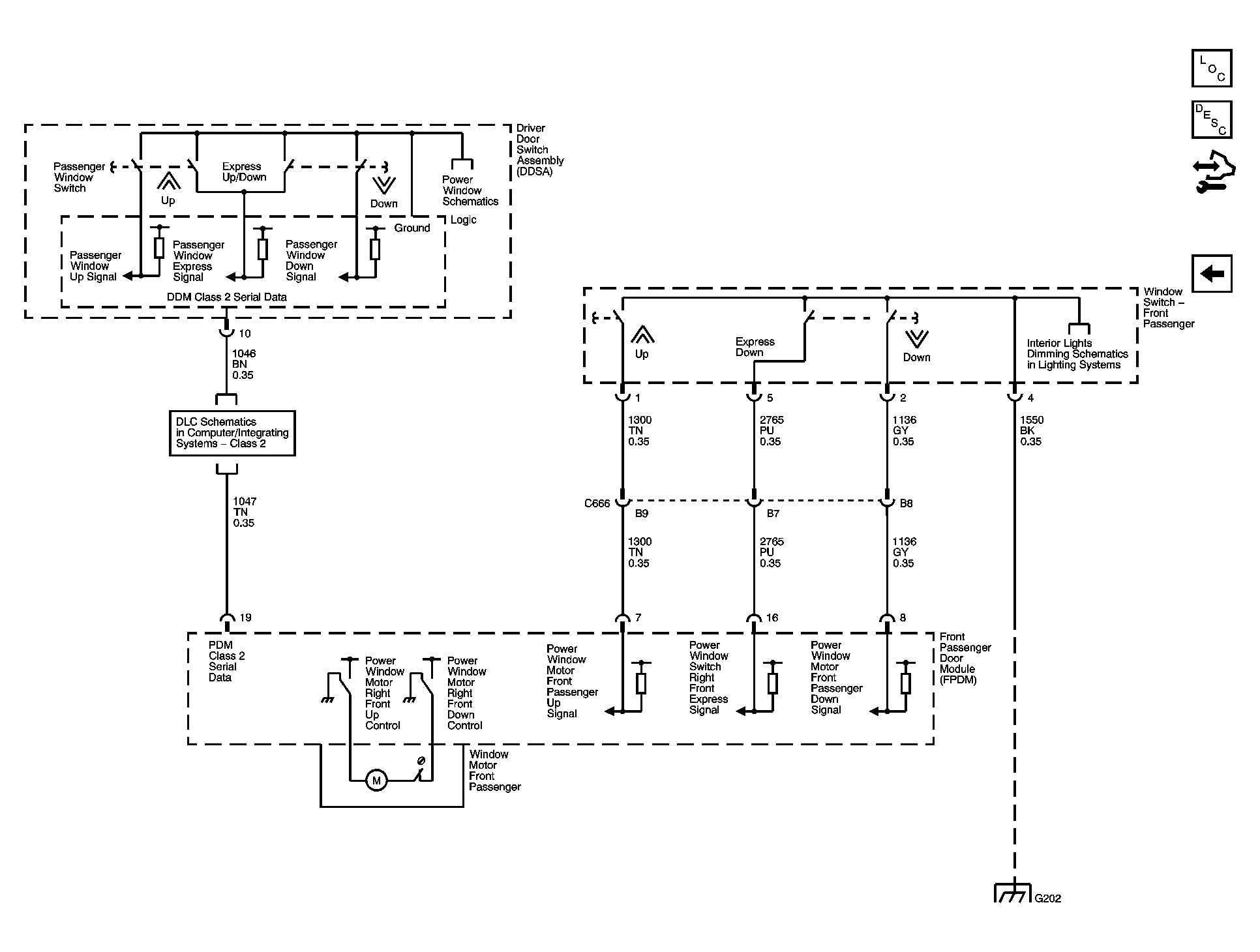

Fig 2: Passenger - Wiring Diagram
GM1408972Courtesy of GENERAL MOTORS CORP.
