Console Replacement

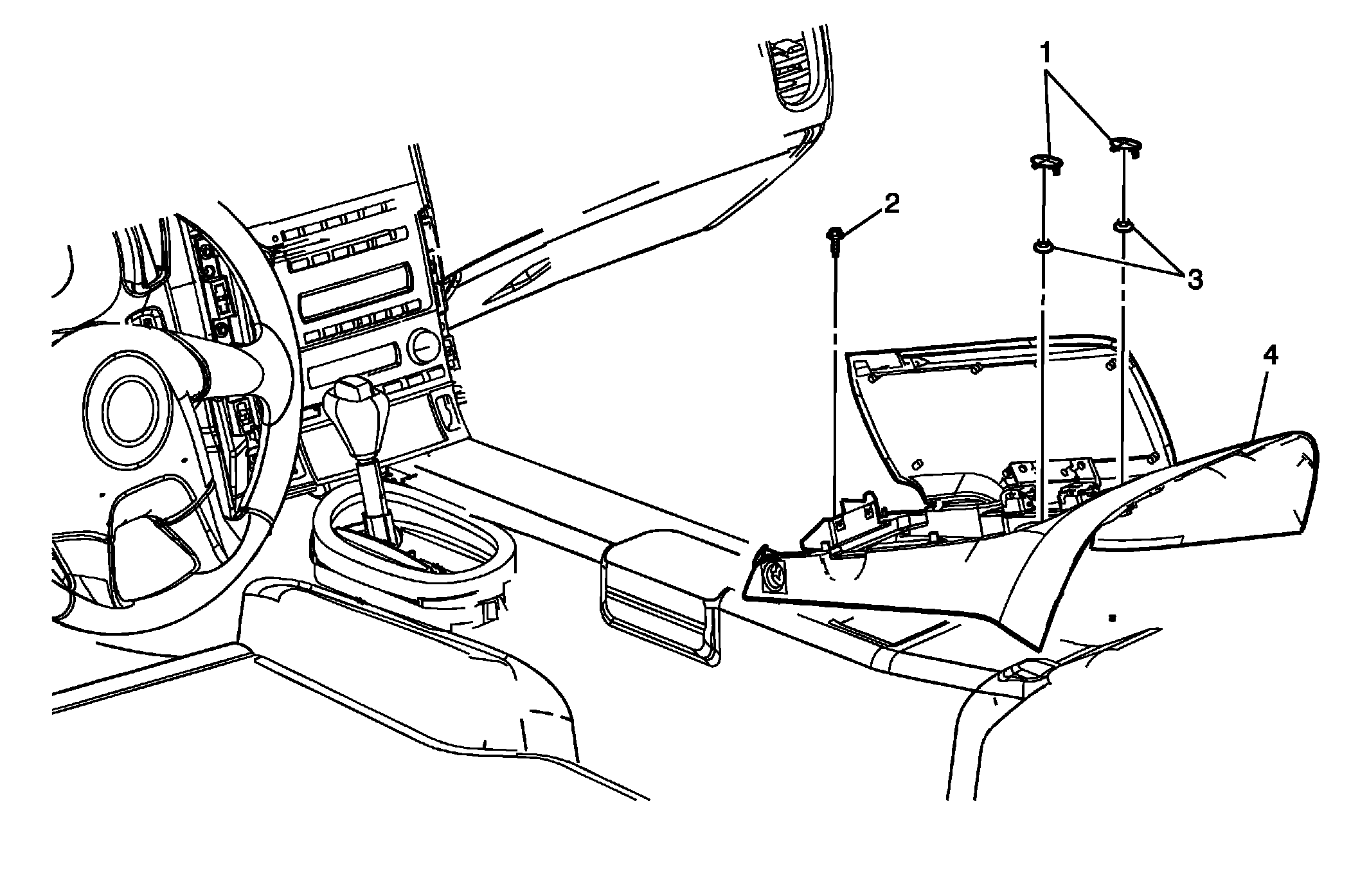

Fig 1: Replacing Console
GM1470913Courtesy of GENERAL MOTORS CORP.
Console Replacement

Callout Component Name
NOTE: Refer to Fastener Notice in Cautions and Notices.
Fastener Tightening Specifications:  Refer to Fastener Tightening Specifications .

Preliminary Procedures

  1. Remove the instrument panel accessory trim plate. Refer to Trim Plate Replacement - Instrument Panel (I/P) Accessory .
  2. Remove the center console trim plate. Refer to Console Trim Panel Replacement - Right .
1 Front Floor Console Compartment Filler (Qty: 2)
2 Front Floor Console Bolt (Qty: 1)

Tighten:  12 N.m (106 lb in)
3 Front Floor Console Nuts (Qty: 2)

Tighten:  10 N.m (88 lb in)
4 Front Floor Console Assembly
Tip:  Disconnect the electrical connectors.
