Automatic Transmission Shift Lock Control Schematics

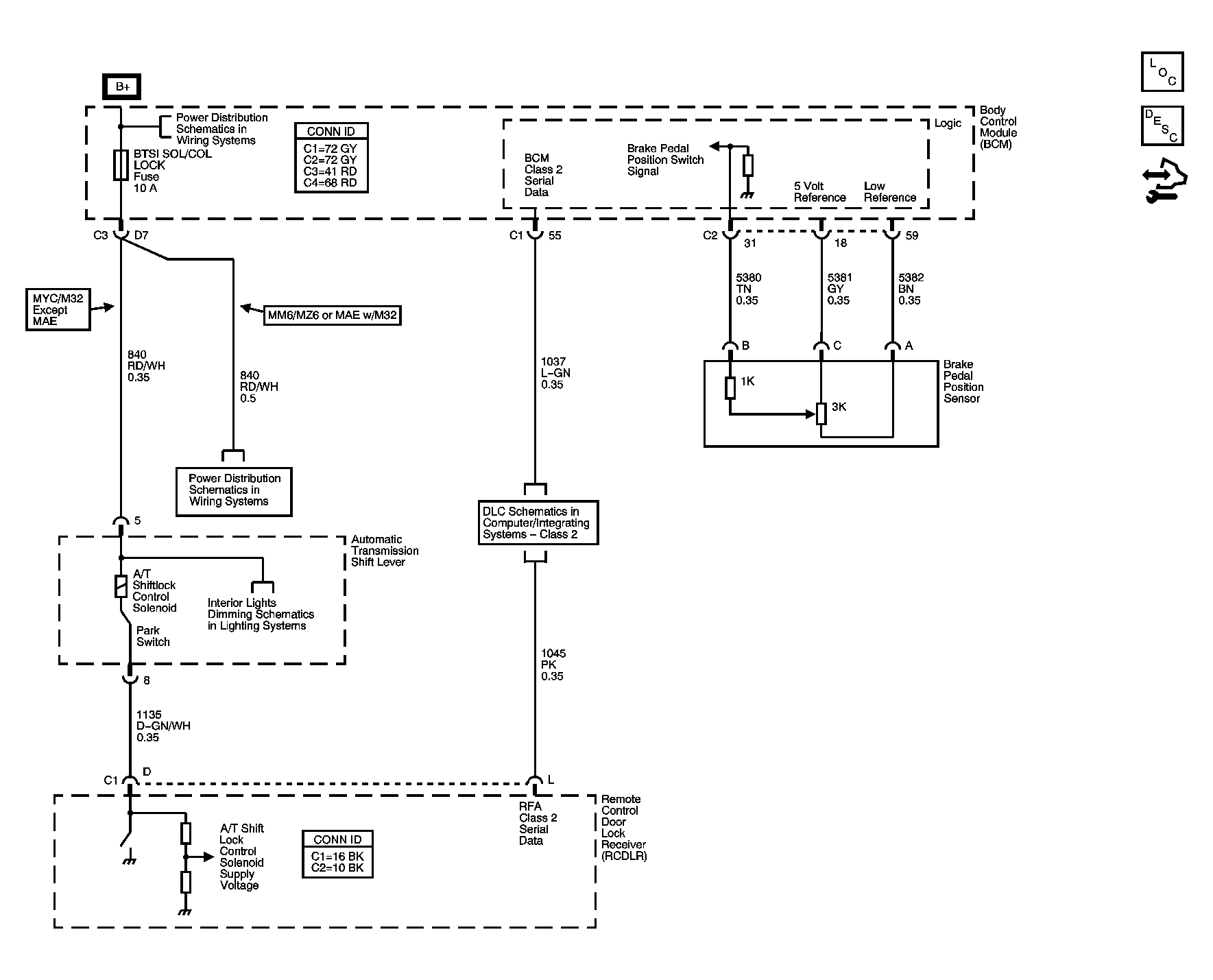

Fig 1: Schematics - Wiring Diagram
GM1680045Courtesy of GENERAL MOTORS CORP.
